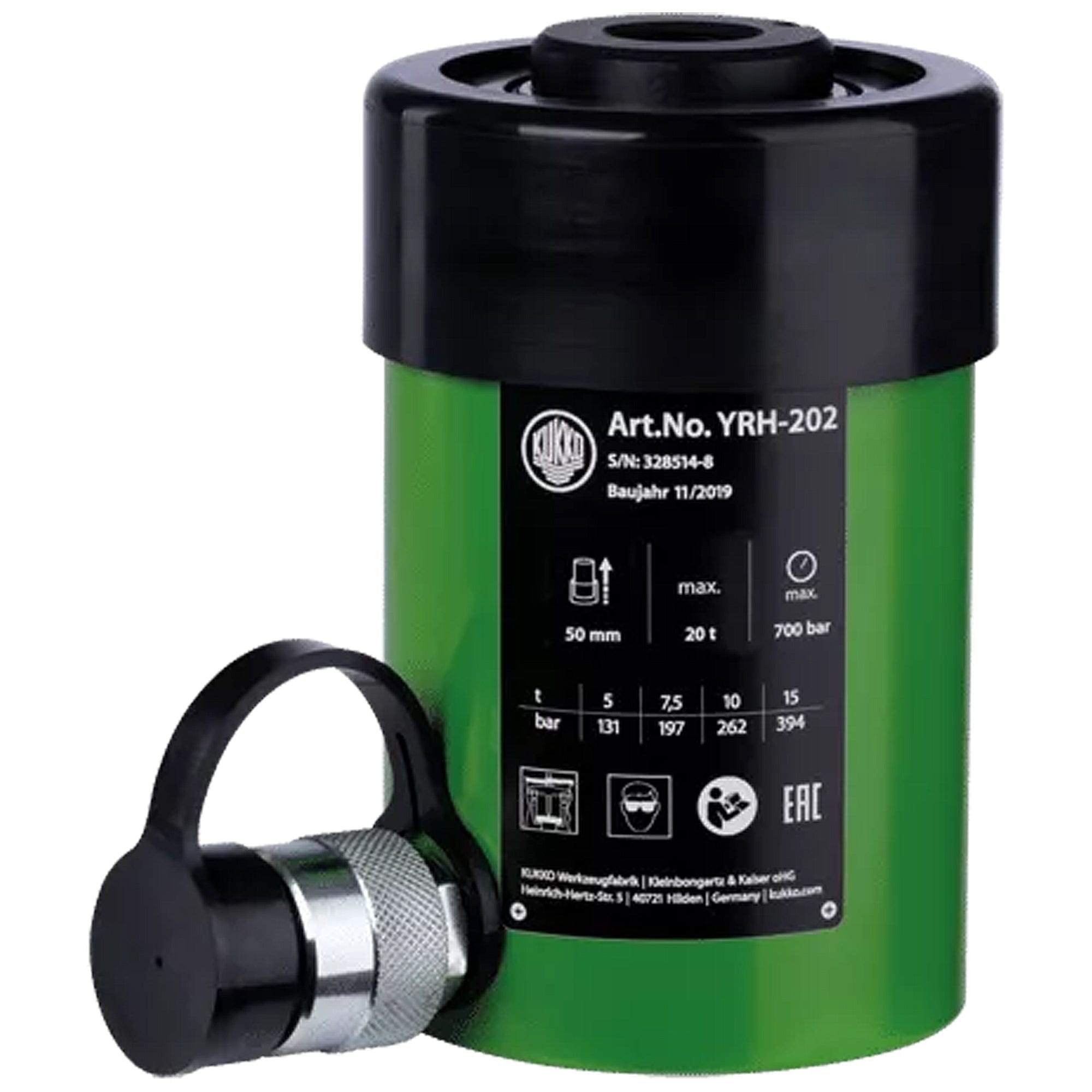

Kukko YRH-202 Hydraulic Hollow Ram 2 inch (50 mm)

|
Kukko ToolsSKU: WS03-YRH-202
filler

Price:
Sale price$954.40

Description

Description:

  • For use with the Kukko hydraulics range.
  • Use as pull- and pressure cylinder.
  • Single-acting with spring return.
  • Complete with threaded pressure piece.
  • Manufactured from high-strength, alloyed steel.
  • All models have a CR-400 coupler and dust cap.
  • MPN #: YRH-202
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Stroke 50 mm 2 inch
Maximum load 525 t 525 t
Maximum pressure 700 bar 700 bar
Outside diameter of the cylinder 98,5 mm 3 7/8 inch
Cylinder height 162 mm 6 3/8 inch
Weight 7.575 kg



Product Data Sheet



Advantage

  • Developed for use in all situations.

  • External threads on cylinder head, piston-rod internal threads and mounting threads on the cylinder bottom enable easy assembly (applies to most models).

  • Preloaded return spring increases the entry speed and thus improves performance.

  • The integrated wiper removes impurities on the piston and extends the service life of the cylinder.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.



Functionality

  • Hydraulics

  • Accessories

  • Accessories for hydraulic pullers
