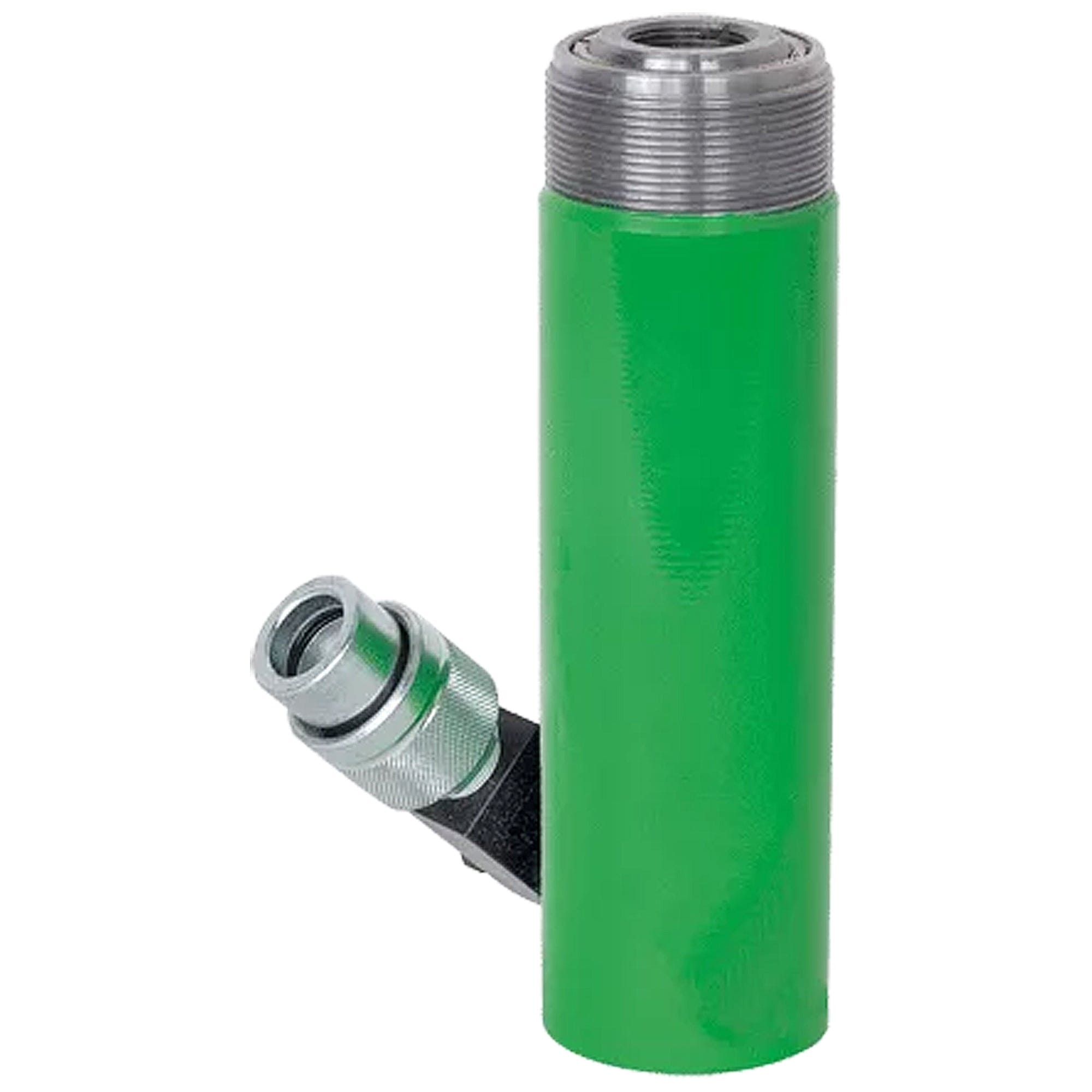

- Developed for use in all situations
- Long stroke models.
- Single-acting with spring return.
- Manufactured from high-strength, alloyed steel.
- All models have a CR-400 coupler and dust cap.
- MPN #: YRE-106
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|Stroke||250 mm||9 7/8 inch|
|Thread||2.1/4"-14 UNS||2.1/4"-14 UNS|
|Maximum load||561 t||561 US t|
|Maximum pressure||700 bar||700 bar|
|Outside diameter of the cylinder||57 mm||2 1/4 inch|
|Cylinder height||350 mm||13 3/4 inch|
Developed for use in all situations.
External threads on cylinder head, piston-rod internal threads and mounting threads on the cylinder bottom enable easy assembly (applies to most models).
Preloaded return spring increases the entry speed and thus improves performance.
The integrated wiper removes impurities on the piston and extends the service life of the cylinder.
KUKKO quality standards
Quality made in Germany.
Strong design, high performance and long service life.
Safety label to ensure protection of intellectual property.
Accessories for hydraulic pullers
