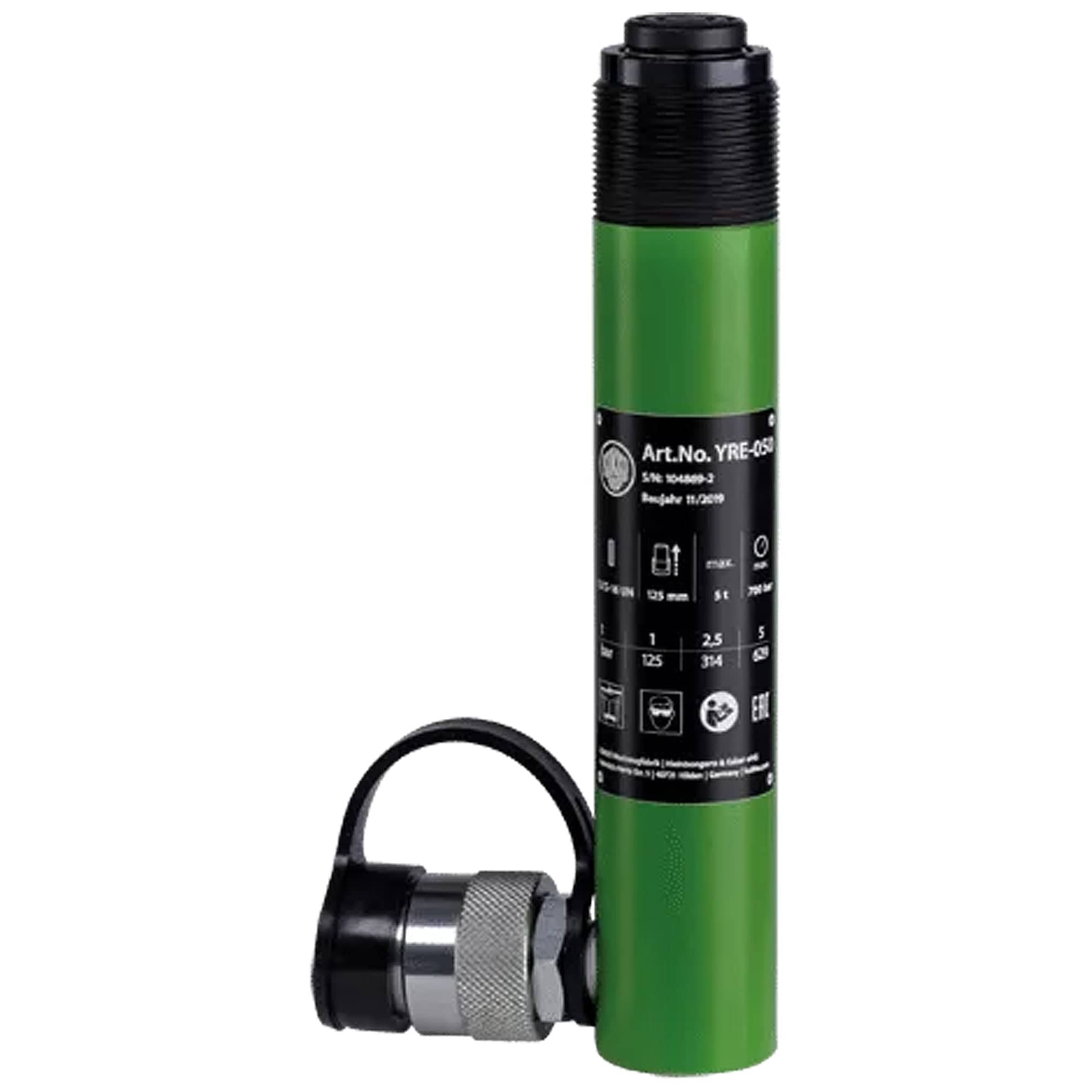

Kukko YRE-050 Hydraulic Cylinder Ram With Collar Threads 4 7/8 inch (125 mm)

|
Kukko ToolsSKU: WS03-YRE-050
filler

Price:
Sale price$420

Description

Description:

  • Developed for use in all situations
  • Long stroke models.
  • Single-acting with spring return.
  • Manufactured from high-strength, alloyed steel.
  • All models have a CR-400 coupler and dust cap.
  • MPN #: YRE-050
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Stroke 125 mm 4 7/8 inch
Thread 1.1/2"-16 UN 1.1/2"-16 UN
Maximum load 625 t 625 US t
Maximum pressure 700 bar 700 bar
Outside diameter of the cylinder 38 mm 1 1/2 inch
Cylinder height 216 mm 8 1/2 inch
Weight 2.2 kg



Product Data Sheet



Advantage

  • Developed for use in all situations.

  • External threads on cylinder head, piston-rod internal threads and mounting threads on the cylinder bottom enable easy assembly (applies to most models).

  • Preloaded return spring increases the entry speed and thus improves performance.

  • The integrated wiper removes impurities on the piston and extends the service life of the cylinder.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.


Functionality

  • Hydraulics

  • Accessories

  • Accessories for hydraulic pullers
