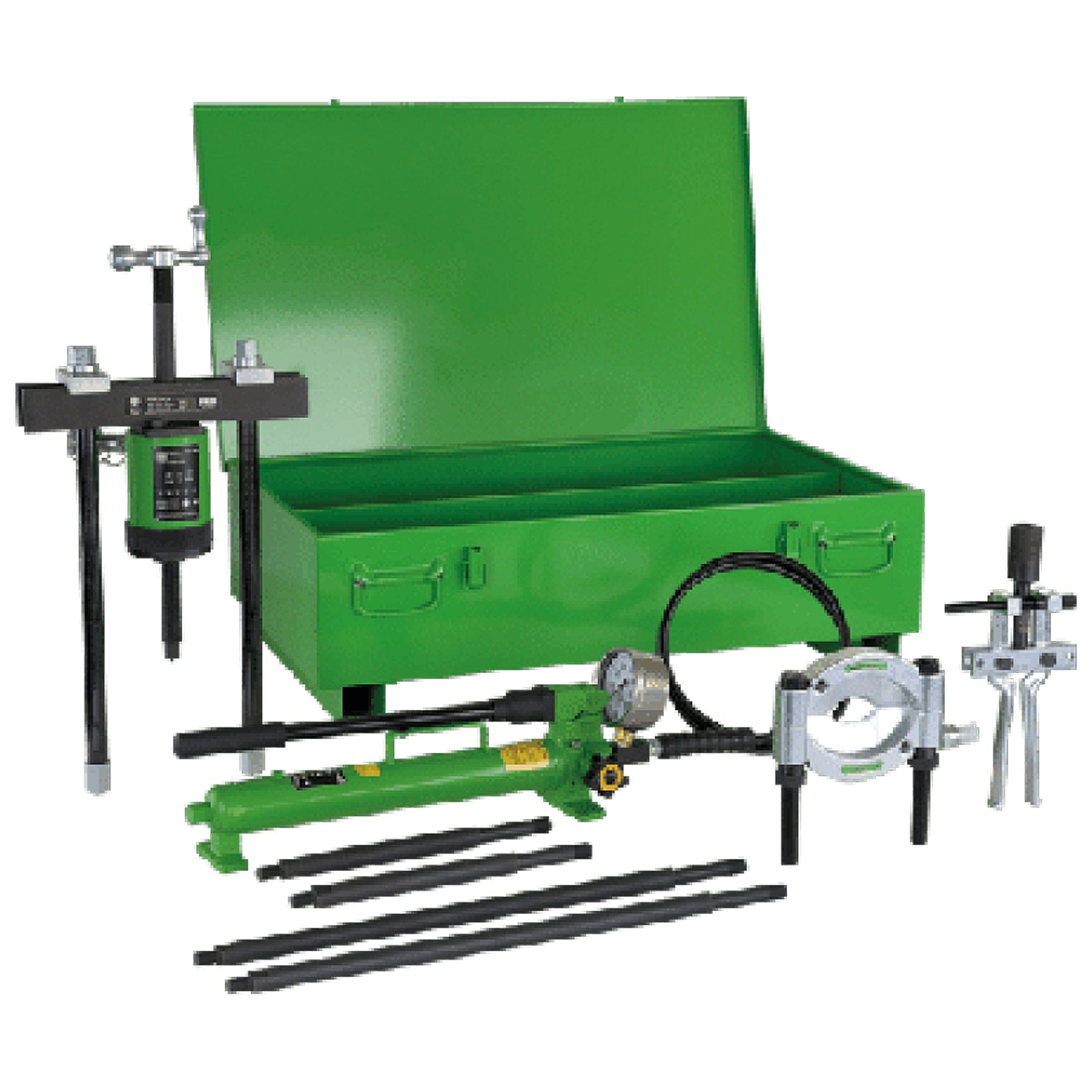

Kukko Y58-518 Hydraulic Push/Pull Device Set 26 inch (660 mm)

|
Kukko ToolsSKU: WS03-Y58-518
filler

Price:
Sale price$12,669.20

Description

Description:

  • For separation and internal extraction of particularly large and tight bearings, gears, discs, etc. in industry and commercial vehicles.
  • Large range for use in industry, commercial vehicles and farm machinery.
  • Hydraulic hollow ram.
  • Hydraulic hand pump, gauge and hoses.
  • Separator blade.
  • Internal extractor.
  • Extensions.
  • Counterstay.
  • MPN #: Y58-518
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 460 - 1200 mm 18 1/8 inch
Depth 700 mm 27 5/8 inch
Distance of side screw 235 - 540 mm 9 1/4 - 21 1/4 inch
Depth of side screw 400 mm 11 7/8 inch
Diameter of the shaft 75 - 330 mm 3 inch
Inner diameter of ball bearing 75 - 230 mm
Maximum load as a 2-arm puller 45 t 49.6 US t
Maximum load as a 3-arm puller 50 t 55.1 US t
Maximum load as pulling device only with tension bolts 35 t 38.6 US t
Maximum load as pulling device with separator 30 t 33.0 US t
Maximum load as pulling device with internal extractor 25 t 27.5 US t



Product Data Sheet



Advantage

  • Arranged and space-efficient custody in the metal case.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Safety label to ensure protection of intellectual property.

  • Product video on the product can be opened.



Functionality

  • Hydraulics

  • Internal Extracting

  • Separating

  • Hydraulic Sets
