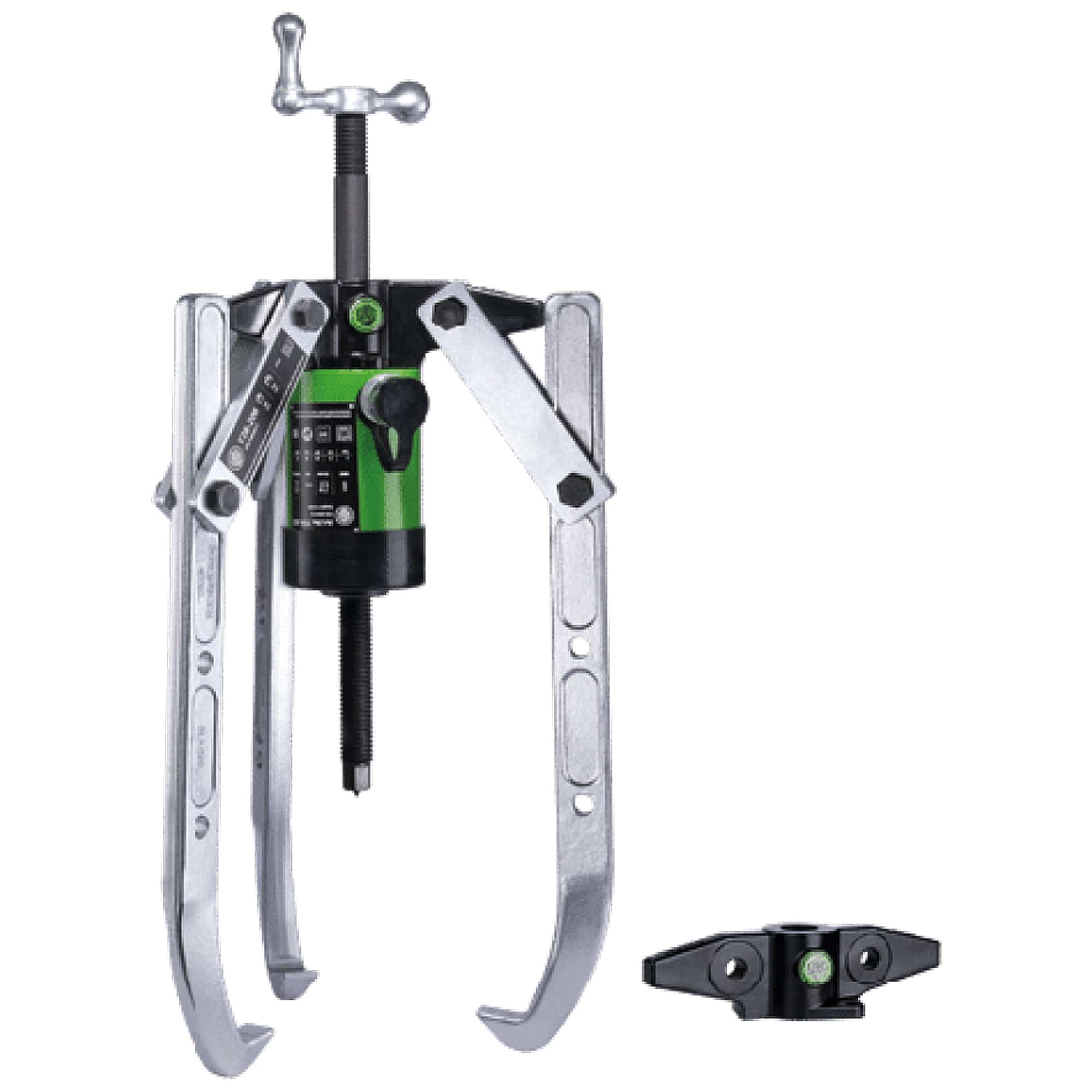

Kukko Y58-206 Hydraulic 3-Jaw Pullers With Adjustable Reach, With Hydraulic Hollow Ram For Pump Drive 27 5/8 inch (700 mm)

|
Kukko ToolsSKU: WS03-Y58-206
filler

Price:
Sale price$7,870.40

Description

Description:

  • For removing particularly large and tight bearings, gears, discs, etc.
  • Hydraulic hollow ram.
  • Flexibility assured thanks to two-arm or three-arm design.
  • If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
  • Swivelling puller jaws.
  • MPN #: Y58-206
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 460 - 1200 mm 18 1/8 - 44 inch
Depth 700 mm 27 5/8 inch
Maximum pressure 498 bar 498 bar
Maximum load as a 2-arm puller 45 t 49.6 US t
Maximum load as a 3-arm puller 50 t 55.1 US t
Weight 125 kg
Space below 63 mm 2 1/2 inch
Space next to it 155 mm 6 1/8 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • Universal application thanks to adjustable depths.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Hydraulics

  • External Extracting
