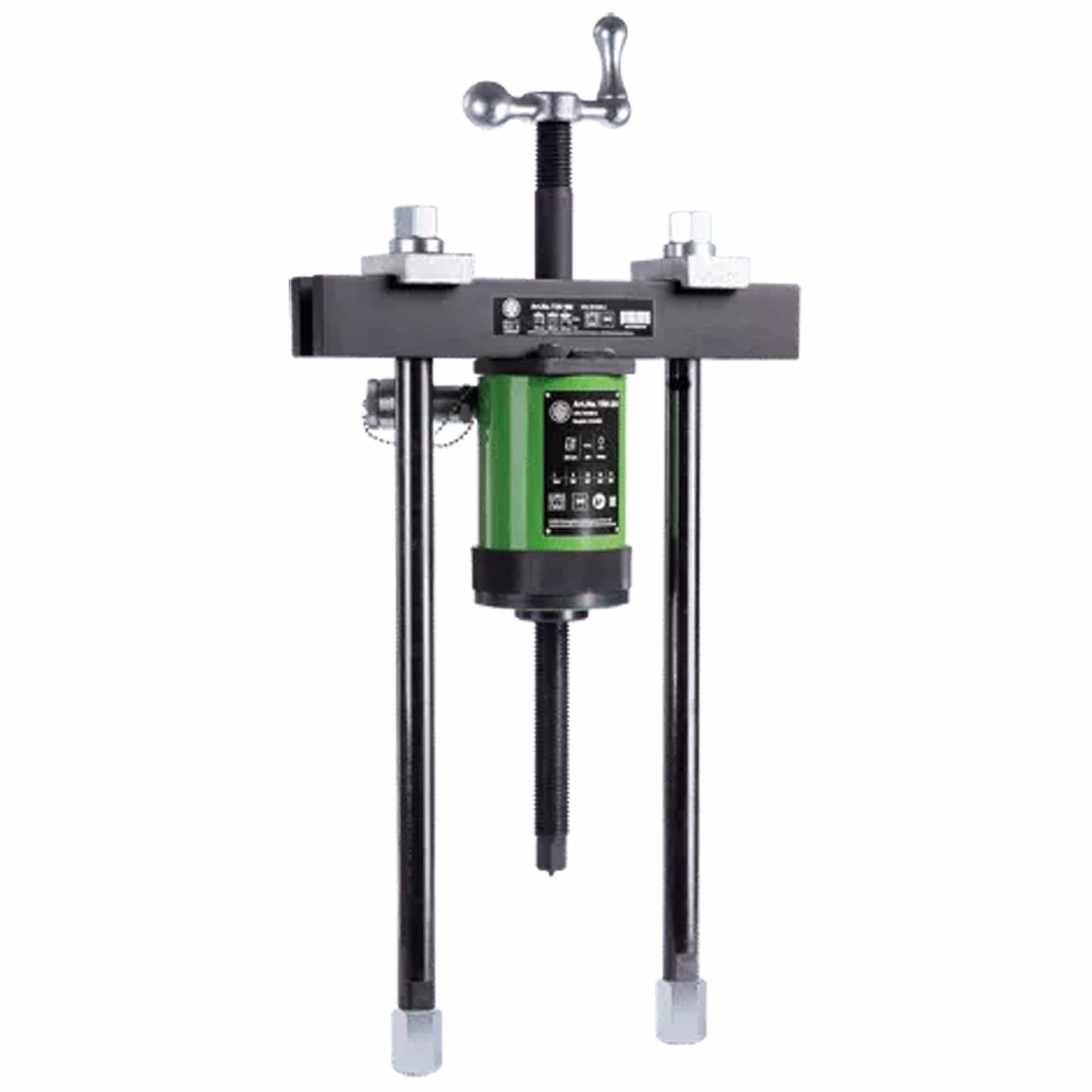

Kukko Y58-180 Hydraulic Push/Pulling Device With Hydraulic Hollow Ram For Pump Drive 26 inch (660 mm)

|
Kukko ToolsSKU: WS03-Y58-180
filler

Price:
Sale price$8,173.10

Description

Description:

  • For removing particularly large and tight bearings, gears, discs, etc. using separator blades and internal extractors.
  • For use with series Y-15 separators and series Y-21-E internal extractors.
  • Hydraulic hollow ram.
  • MPN #: Y58-180
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Distance of side screw 235 - 540 mm 9 1/4 - 21 1/4 inch
Depth of side screw 660 mm 26 inch
Tension bolt depth with hydraulics below the cross-beam 400 mm 15 3/4 inch
Maximum load as pulling device only with tension bolts 35 t 38.5 US t
Maximum pressure 348 bar 348 bar
Weight 84 kg



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Hydraulics

  • Internal Extracting

  • Separating
