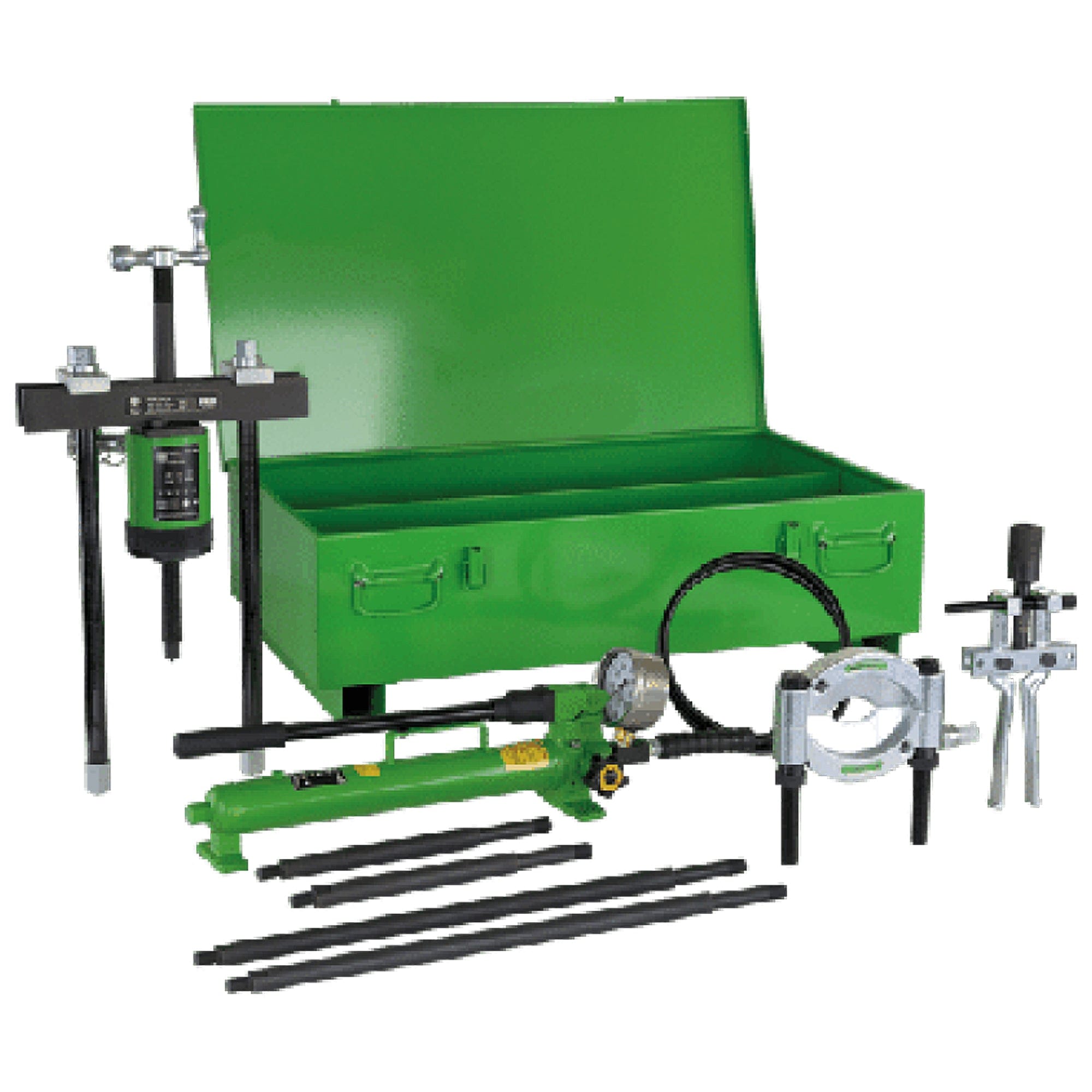

Kukko Y38-318 Hydraulic Push/Pull Device Set 20 1/2 inch (520 mm)

|
Kukko ToolsSKU: WS03-Y38-318
filler

Price:
Sale price$7,830.10

Description

Description:

  • For separation and internal extraction of particularly large and tight bearings, gears, discs, etc. in industry and commercial vehicles.
  • Large range for use in industry, commercial vehicles and farm machinery.
  • Hydraulic hollow ram.
  • Hydraulic hand pump, gauge and hoses.
  • Separator blade.
  • Internal extractor.
  • Extensions.
  • Counterstay.
  • MPN #: Y38-318
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Distance of side screw 180 - 420 mm 7 - 16 1/4 inch
Depth of side screw 520 mm 20 1/2 inch
Tension bolt depth with hydraulics below the cross-beam 330 mm 13 inch
Diameter of the shaft 30 - 250 mm 1 3/16 - 9 7/8 inch
Inner diameter of ball bearing 75 - 230 mm
Maximum load as pulling device only with tension bolts 25 t 27.5 US t
Maximum load as pulling device with separator 20 t 22.0 US t
Maximum load as pulling device with internal extractor 20 t 22.0 US t
Maximum pressure 514 bar 514 bar
Weight 115 kg



Product Data Sheet



Advantage

  • Arranged and space-efficient custody in the metal case.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Safety label to ensure protection of intellectual property.

  • Product video on the product can be opened.


Functionality

  • Hydraulics

  • Internal Extracting

  • Separating

  • Hydraulic Sets
