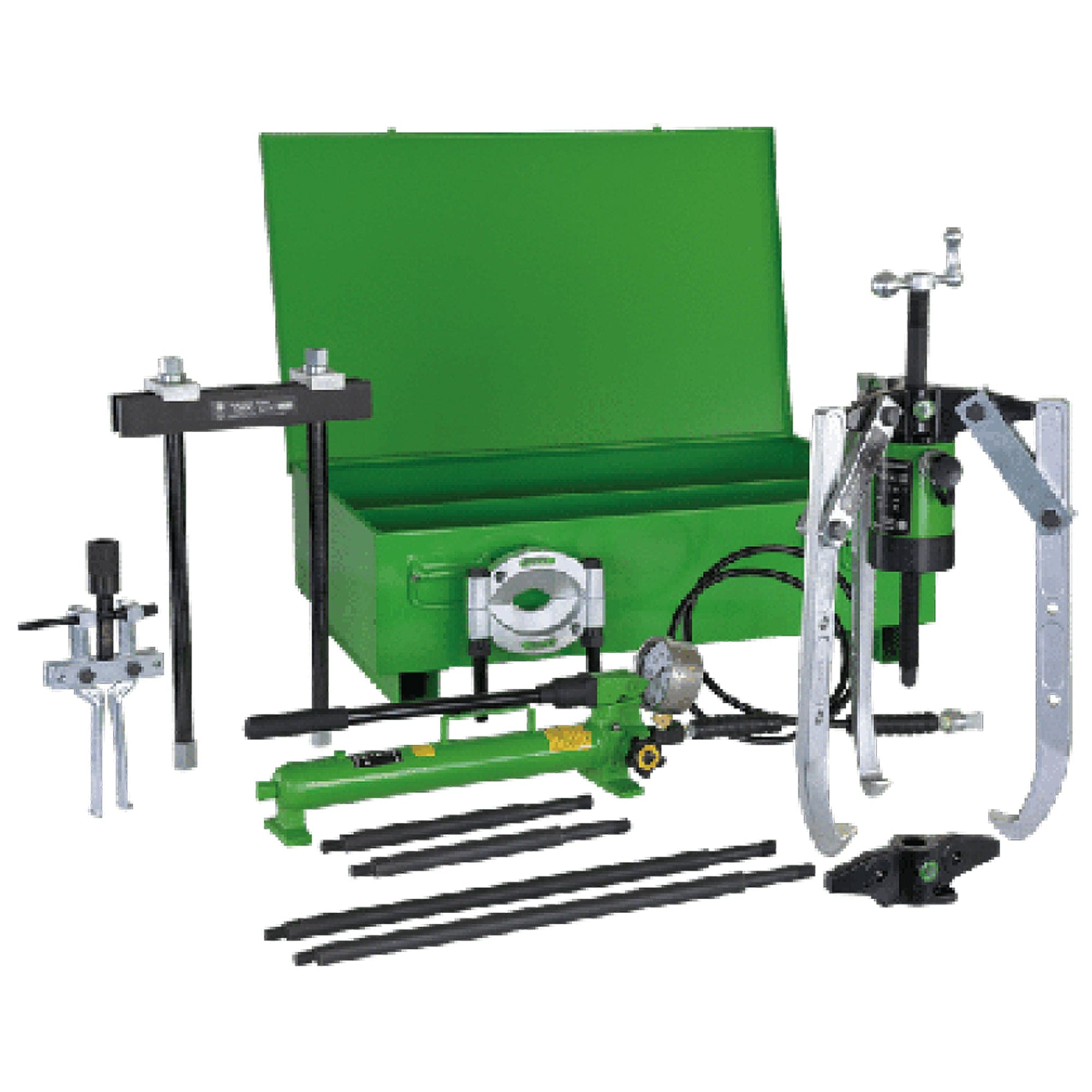

Kukko Y38-300 Universal Hydraulic Puller Set 20 1/2 inch (520 mm)

|
Kukko ToolsSKU: WS03-Y38-300
filler

Price:
Sale price$10,191.30

Description

Description:

  • For removal, separation and internal extraction of particularly large and tight bearings, gears, discs, etc. in industry and commercial vehicles.
  • Large range for use in industry, commercial vehicles and farm machinery.
  • Hydraulic hollow ram.
  • Hydraulic hand pump, gauge and hoses.
  • 2- and 3-jaw pullers.
  • Separator blade.
  • Internal extractor.
  • Extensions.
  • Counterstay.
  • MPN #: Y38-300
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 330 - 900 mm 13 inch
Depth 520 mm 20 1/2 inch
Distance of side screw 135 - 300 mm 5 3/8 - 11 7/8 inch
Depth of side screw 300 mm 11 7/8 inch
Diameter of the shaft 30 - 250 mm 1 3/16 - 9 7/8 inch
Inner diameter of ball bearing 75 - 230 mm
Maximum load as a 2-arm puller 25 t 27.5 US t
Maximum load as a 3-arm puller 30 t 33.0 US t
Maximum load as pulling device only with tension bolts 25 t 27.5 US t
Maximum load as pulling device with separator 20 t 22.0 US t
Maximum load as pulling device with internal extractor 20 t 22.0 US t



Product Data Sheet



Advantage

  • Arranged and space-efficient custody in the metal case.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Safety label to ensure protection of intellectual property.

  • Product video on the product can be opened.



Functionality

  • Hydraulics

  • External Extracting

  • Internal Extracting

  • Separating

  • Hydraulic Sets
