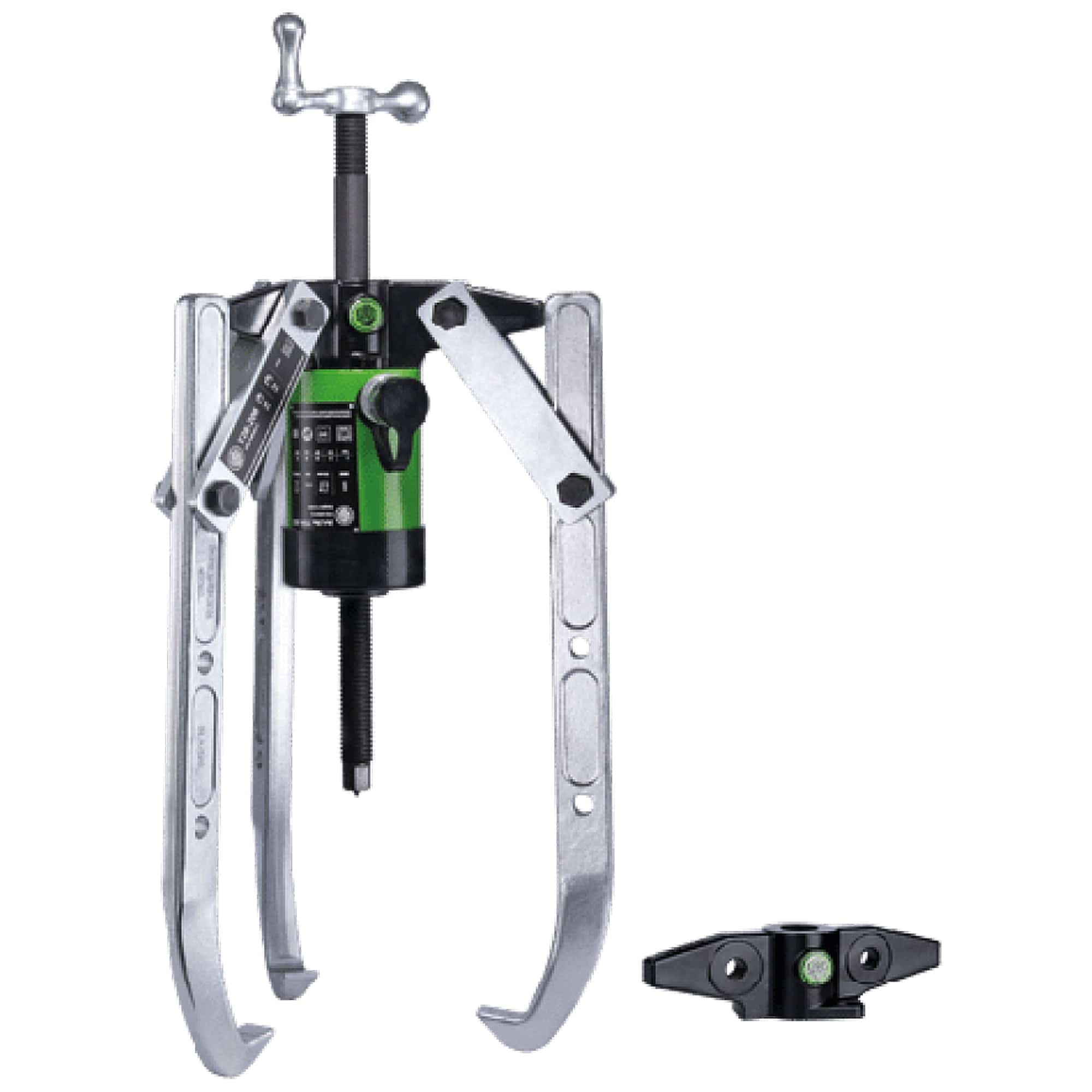

- For removing particularly large and tight bearings, gears, discs, etc.
- Hydraulic hollow ram.
- Flexibility assured thanks to two-arm or three-arm design.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
- Swivelling puller jaws.
- MPN #: Y38-206
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|Spread||330 - 900 mm||13 inch|
|Depth||520 mm||20 1/2 inch|
|Maximum pressure||617 bar||617 bar|
|Maximum load as a 2-arm puller||30 t||27.5 US t|
|Maximum load as a 3-arm puller||33 t||33.0 US t|
|Space below||41 mm||1 5/8 inch|
|Space next to it||125 mm||4 7/8 inch|
|Number of jaws||3||3|
Universal application thanks to adjustable depths.
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
Quality made in Germany.
Strong design, high performance and long service life.
Safety label to ensure protection of intellectual property.
A tube of KUKKO special grease included for pressure spindle.
Product video on the product can be opened.
