Kukko Y28-218 Universal Hydraulic Pushing and Pulling Device Set - 5 1/4 - 11 3/4 inch (135 - 300 mm)

|
Kukko ToolsSKU: WS03-Y28-218
filler

Price:
Sale price$4,748.60

Description

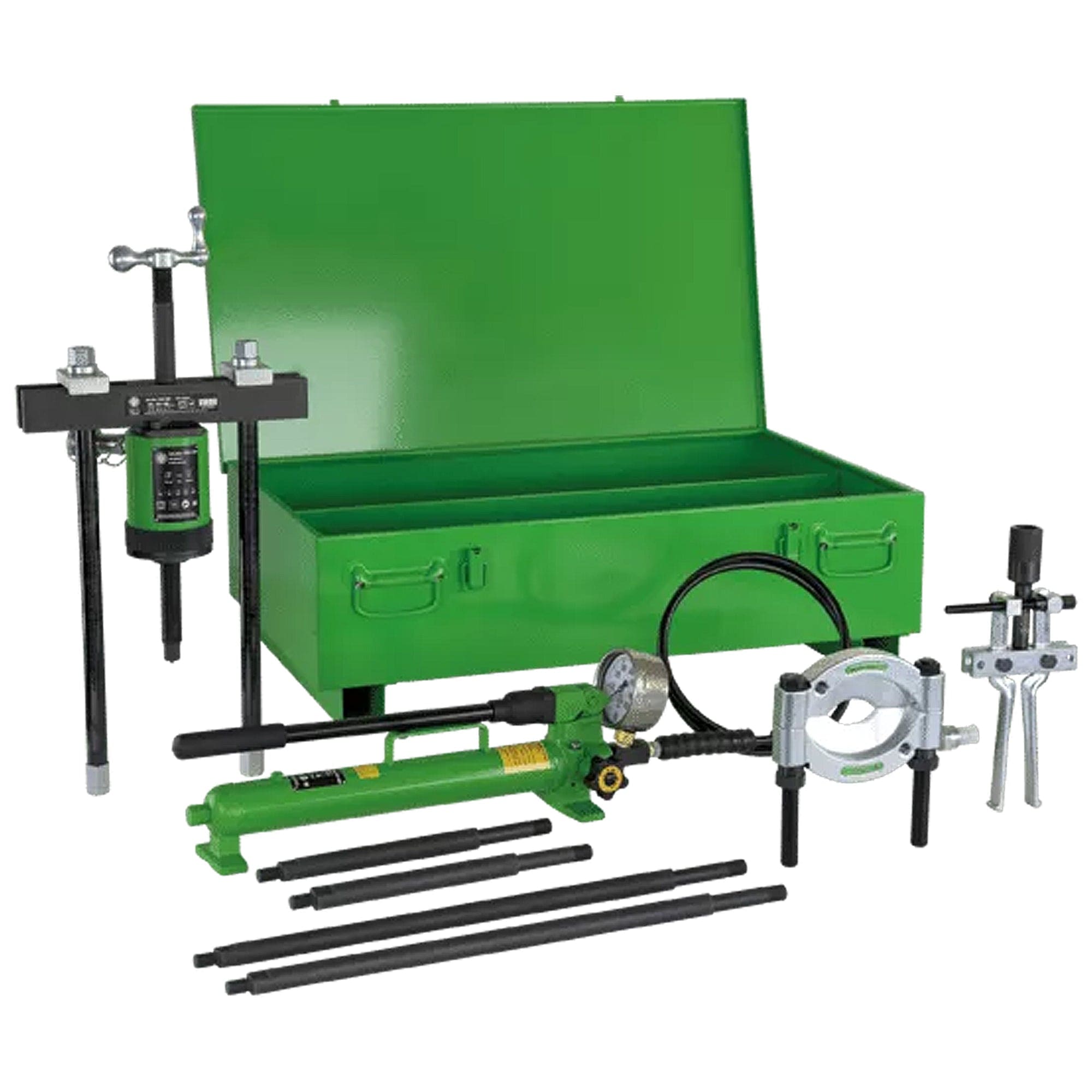

Set Contents:

  • Y-221-E - Internal extractors
  • YHP-325 - Hydraulic hand pump
  • Y-215-3 - Separator for hydraulic push/pull device
  • YDB-27E - Pressure pad for hollow rams
  • YRH-202 - Hydraulic hollow ram
  • Y20-180 - Push/pulling device (without hydraulic hollow ram for pump drive)
  • Y218-06-P - 240 mm tension bolts, pair
  • Y218-08-P - 570 mm tension bolts, pair
  • Y218-31-P - Pair of connectors for tension bolts
  • Y218-33 - Quick-adjust nuts
  • Y218-10 - Crank
  • Y218-11 - Mechanical screw


Description:

  • For removal, separation and internal extraction of particularly large and tight bearings, gears, discs, etc. in industry and commercial vehicles.
  • Large range for use in industry, commercial vehicles and farm machinery.
  • Hydraulic hollow ram.
  • Hydraulic hand pump, gauge and hoses.
  • Separator blade.
  • Internal extractor.
  • Extensions.
  • Counterstay.
  • MPN #: Y28-218
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Distance of side screw 135 - 300 mm 5 1/4 - 11 3/4 inch
Depth of side screw 470 mm
18 1/2 inch
Tension bolt depth with hydraulics below the cross-beam 300 mm 12 inch
Diameter of the shaft 25 - 155 mm 1 - 6 1/8 inch
Inner diameter of ball bearing 30 - 180 mm
Maximum load as pulling device only with tension bolts 15 t 16.5 US t
Maximum load as pulling device with separator 15 t 16.5 US t
Maximum load as pulling device with internal extractor 10 t 11.0 US t
Maximum pressure 394 bar 394 bar
Weight 60 kg



Product Data Sheet



Advantage

  • Arranged and space-efficient custody in the metal case.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Hydraulics
  • Internal Extracting
  • Separating
  • Hydraulic Sets
