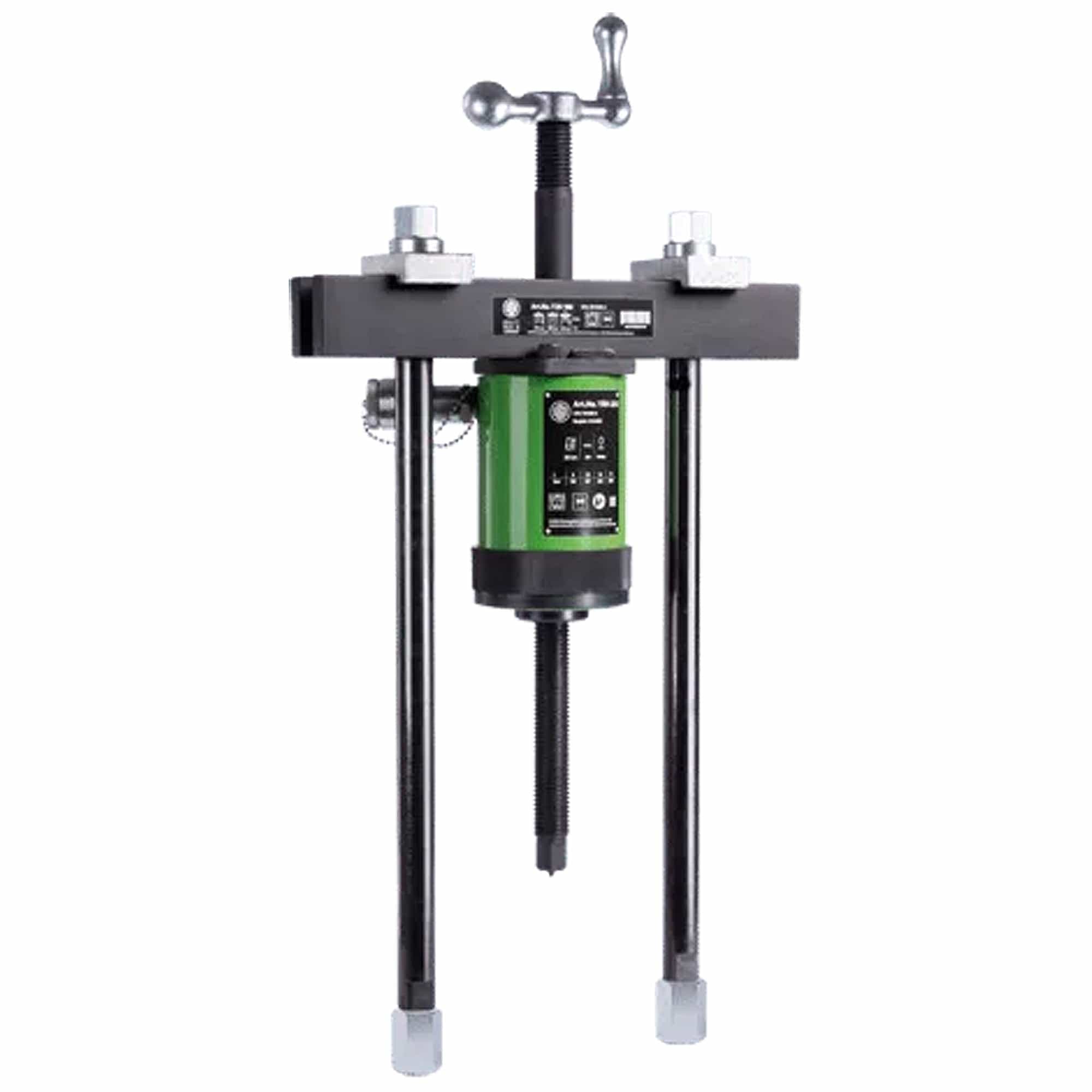

Kukko Y28-180 Universal Hydraulic Push/pulling Device With Hydraulic Hollow Ram For Pump Drive - 5 3/8 - 11 7/8 Inch (135 - 300 mm)

|
Kukko ToolsSKU: WS03-Y28-180
filler

Price:
Sale price$2,607.70

Description

Description:

  • For pulling particularly tight bearings, gears, discs, etc.
  • For use with series Y-15 separators and series Y-21-E internal extractors.
  • Hydraulic hollow ram.
  • MPN #: Y28-180
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Distance of side screw 135 - 300 mm 5 3/8 - 11 7/8 inch
Depth of side screw 470 mm 18 1/2 inch
Tension bolt depth with hydraulics below the cross-beam 300 mm 11 7/8 inch
Maximum load as pulling device only with tension bolts 15 t
16.5 US t
Maximum pressure 394 bar 394 bar
Weight 20.81 kg



Product Data Sheet



Advantage

  • Easy and even pulling for particularly tight parts.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Hydraulics
  • Internal Extracting
  • Separating
