Description
Description:

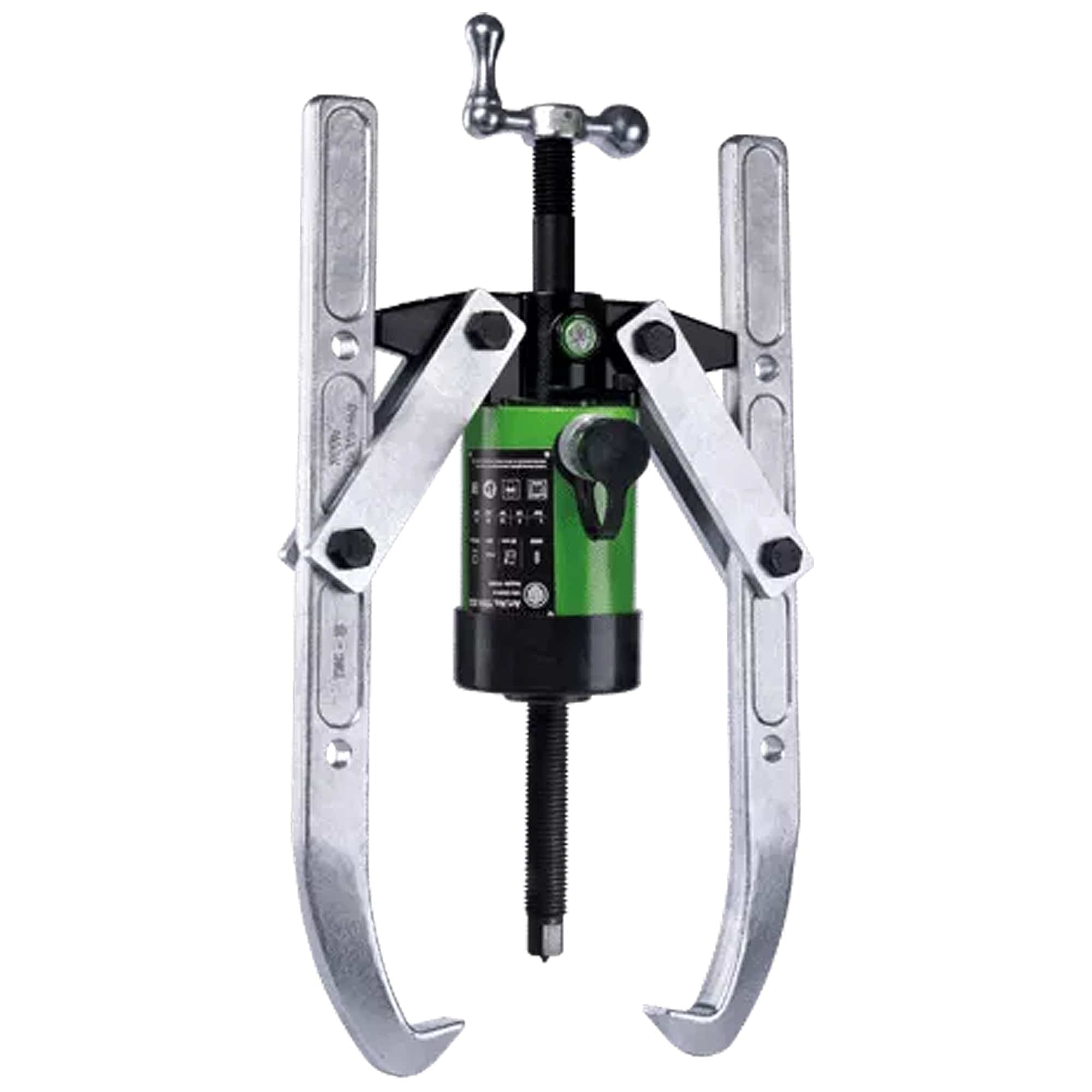

- For pulling particularly tight bearings, gears, discs, etc.
- Hydraulic hollow ram.
- 2-jaw puller.
- Swivelling puller jaws.
- MPN #: Y28-205
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 110 - 420 mm | 4 3/8 - 16 inch |
Depth | 300 mm | 11 7/8 inch |
Maximum pressure | 394 bar | 394 bar |
Maximum load as a 2-arm puller | 15 t |
16.5 US t |
Weight | 21.5 kg | |
Space below | 33 mm | 1 3/8 inch |
Space next to it | 102 mm | 4 1/32 inch |
Number of jaws | 2 | 2 |
Advantage
- Universal application thanks to adjustable depths.
- The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
- Hydraulics
- Internal Extracting
