Description
Description:

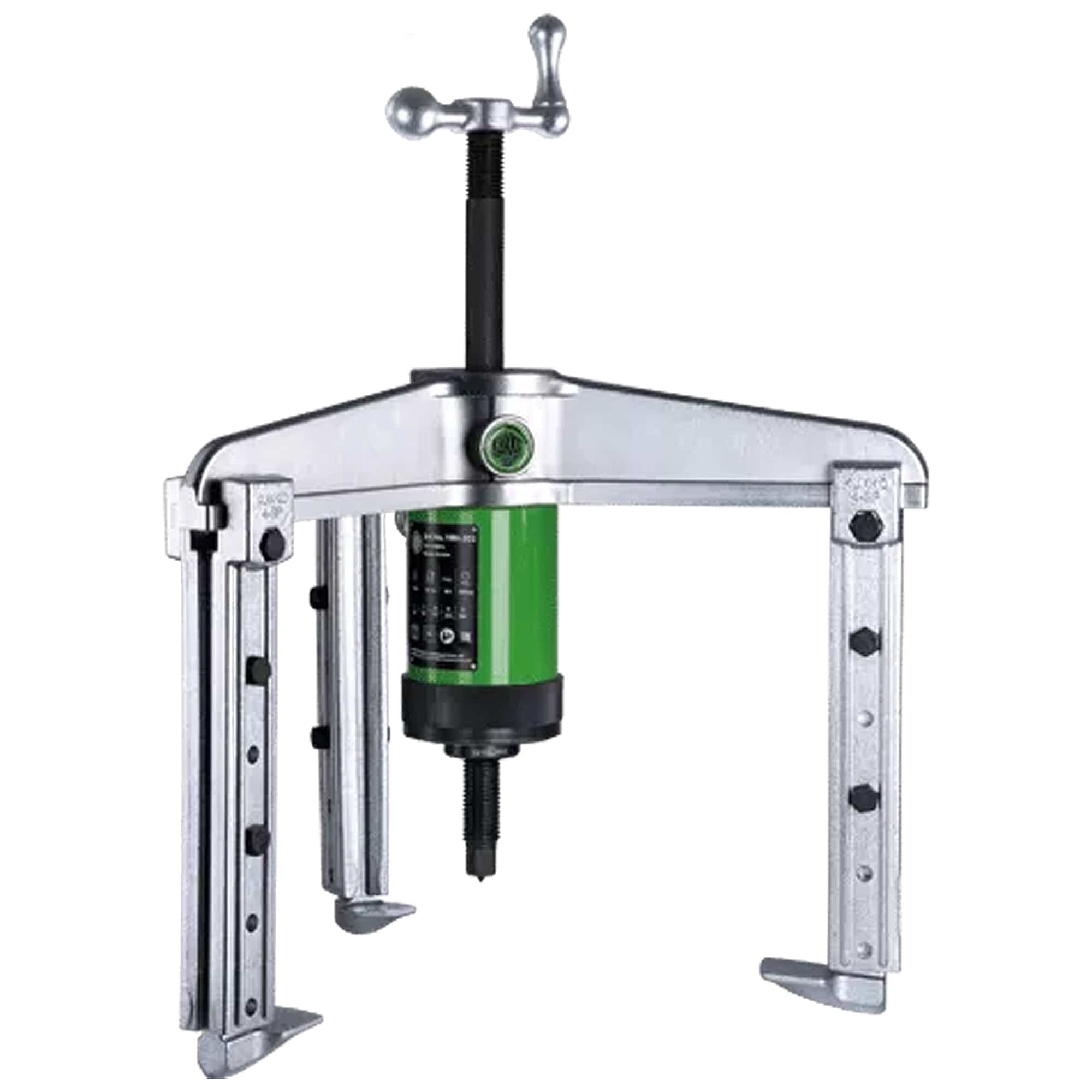

- For pulling particularly tight bearings, gears, discs, etc.
- High performance is guaranteed.
- Hydraulic hollow ram
- Standard pulling hook with adjustable depths.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- MPN #: Y28-11-2
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 650 mm | |
Depth | 300 - 500 mm | |
Spread used internal | 290 - 740 mm | |
Maximum load | 30 t |
Advantage
- Pulling hooks can be adjusted lengthwise to meet the required clamping depths.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
- Pullers with sliding, parallel jaws
