Description
Description:

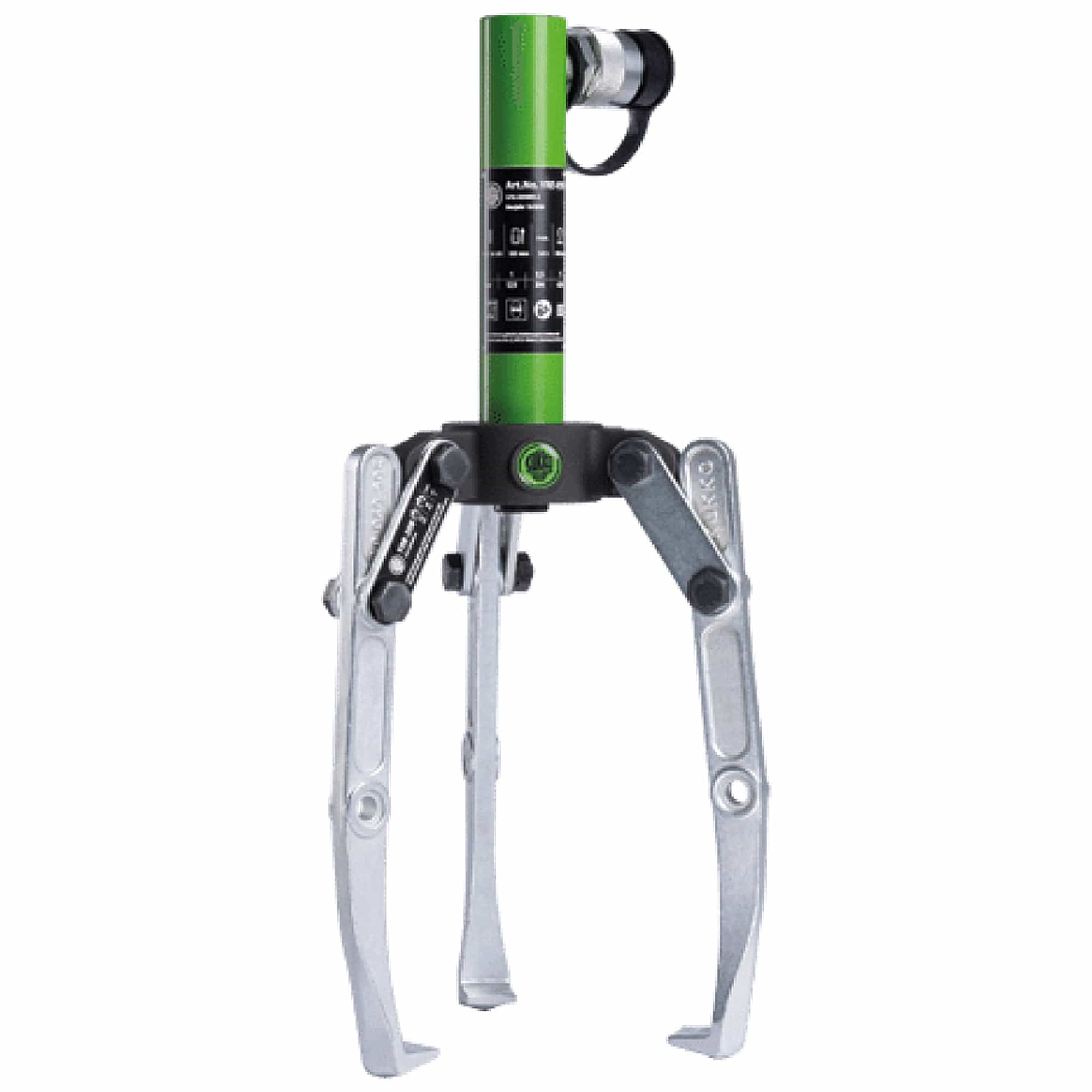

- For removing particularly large and tight bearings, gears, discs, etc.
- 2-jaw and 3-jaw combination cross beam.
- Swivelling puller jaws.
- YRE series hydraulic cylinder ram with collar threads is required for use.
- MPN #: Y-208
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 160 - 500 mm | 6 3/8 - 19 3/4 inch |
Depth | 500 mm | 19 3/4 inch |
Stroke | 250 mm | 9 7/8 inch |
Cross-beam thread | 2 1/4 - 14 UNS | 2 1/4 - 14 UNS |
Maximum pressure | 561 bar | 561 bar |
Maximum load | 10 t |
11 US t |
Weight | 17.41 kg | |
Space below | 19 mm | 3/4 inch |
Space next to it | 58 mm | 2 1/4 inch |
Number of jaws | 2/3 |
2/3 |
Advantage
-
Combi-pullers can be used as a 3-jaw and 2-jaw puller.
-
Universal application thanks to adjustable clamping depths up to a certain size.
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with swivelling jaws
