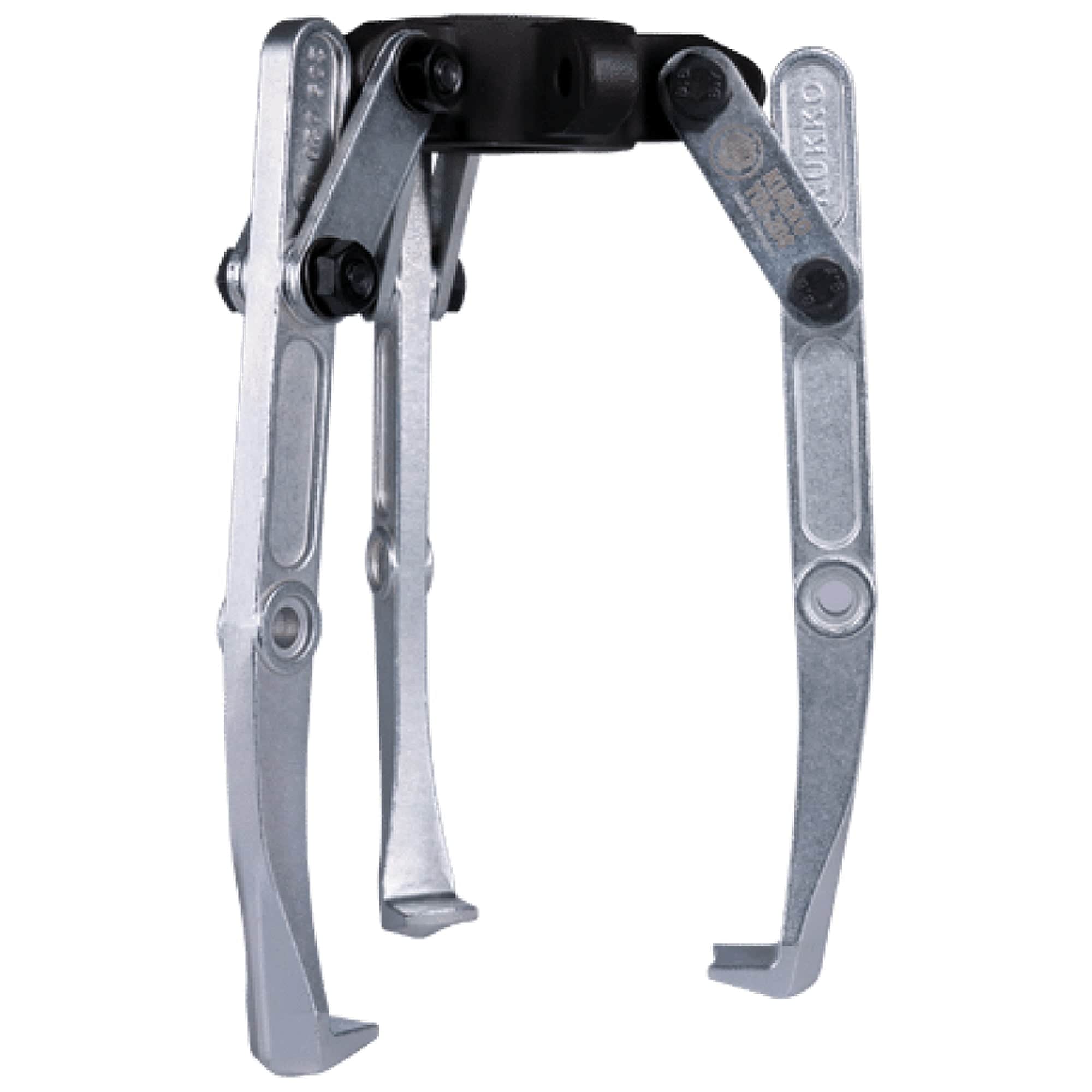

Kukko Y10-208 Universal Hydraulic 3-jaw Combination Puller With Swiveling Jaws (Without Hydraulic Cylinder For Pump Drive)- 6 3/8 - 19 3/4 inch (160 - 500 mm)

|
Kukko ToolsSKU: WS03-Y10-208
filler

Price:
Sale price$757.90

Description

Description:

  • For removing particularly large and tight bearings, gears, discs, etc.
  • 2-jaw and 3-jaw combination cross beam.
  • Swivelling puller jaws.
  • YRE series hydraulic cylinder ram with collar threads is required for use.
  • MPN #: Y10-208
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 160 - 500 mm 6 3/8 - 19 3/4 inch
Depth 500 mm 19 3/4 inch
Stroke 125 mm 4 7/8 inch
Cross-beam thread 2 1/4 - 14 UNS 2 1/4 - 14 UNS
Application KUKKO, Enerpac, OTC, Powerteam, REHOBOT, NIKE KUKKO, Enerpac, OTC, Powerteam, REHOBOT, NIKE
Maximum load 10 t
11 US t
Weight 10.32 kg
Space below 19 mm 3/4 inch
Space next to it 58 mm 2 1/4 inch
Number of jaws 2/3
2/3



Product Data Sheet



Advantage

  • Combi-pullers can be used as a 3-jaw and 2-jaw puller.

  • Universal application thanks to adjustable clamping depths up to a certain size.

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with swivelling jaws
