Description
Description:

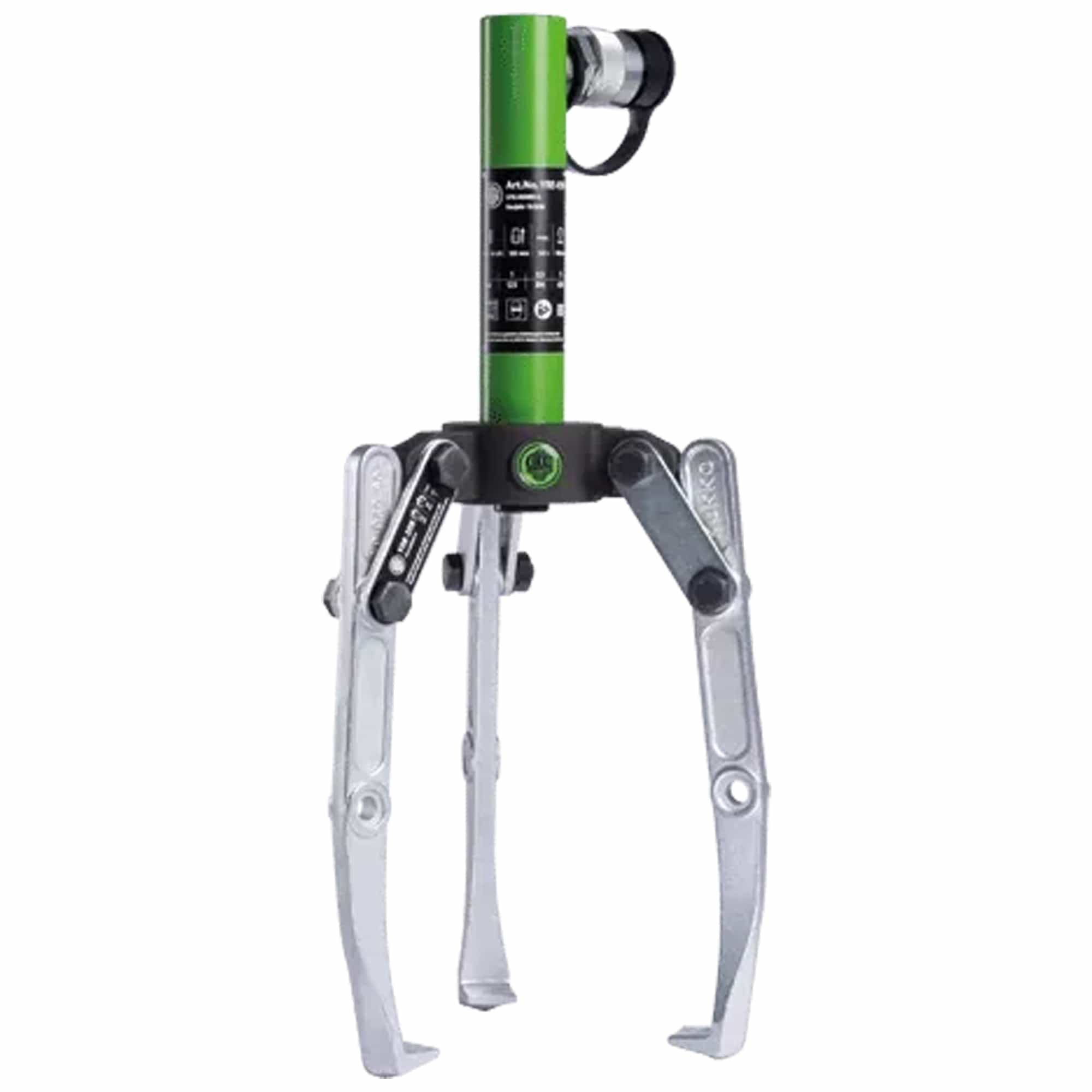

- For removing particularly large and tight bearings, gears, discs, etc.
- 2-jaw and 3-jaw combination cross beam.
- Swiveling puller jaws.
- YRE series hydraulic cylinder ram with collar threads is required for use.
- MPN #: Y08-208
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 110 - 250 mm | 4 3/8 - 9 7/8 inch |
Depth | 215 mm | 8 1/2 inch |
Stroke | 125 mm | 4 7/8 inch |
Cross-beam thread | 1 1/2" - 16UN | 1 1/2" - 16UN |
Maximum pressure | 625 bar | 625 bar |
Maximum load | 4,5 t |
5 US t |
Weight | 5.39 kg | |
Space below | 18 mm | 3/4 inch |
Space next to it | 50 mm | 2 inch |
Number of jaws | 2/3 |
2/3 |
Advantage
-
Combi-pullers can be used as a 3-jaw and 2-jaw puller.
-
Universal application thanks to adjustable clamping depths up to a certain size.
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with swivelling jaws
