Description
Description:
- For extracting bushings and components with threads (dowel-pins, parallel-keys, bolts, etc.).
- Kukko screw adapters can be combined with counter supports and slide hammers.
- Milled thread treated with special coating.
- Secure storage in special foam.
- MPN #: KS-22-01-UNC
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Overall length of slide hammer |
290 mm | 11 3/8 inch |
Mass of impact |
0,9 kg | |
Slide hammer rod connection thread |
M12 | M12 |
Internal thread |
M12/M7; M12/M10; M12/15-16G | M12/M7; M12/M10; M12/15-16G |
Threaded adapters (IG + AG) |
IG: M12; AG: 1/4" 20 UNC | 5/16" - 18 UNC | 3/8" - 16 UNC | 7/16" - 14 UNC | 1/2" - 13 UNC | IG: M12; AG: 1/4" 20 UNC | 5/16" - 18 UNC | 3/8" - 16 UNC | 7/16" - 14 UNC | 1/2" - 13 UNC |
Weight |
2.155 kg |
Advantage
-
1. Extracting register pins: To extract parts with inner and outer threads such as register pins, taper pins or cylinder dowels.
-
2. Measuring function: The thread can be clearly identified with the help of the measurements lasered onto the thread adapters.
-
3. Exchange/replacement: Thanks to the adapter's modular construction with a flexible pin, this can be cheaply replaced by a standard part in the event of breakage.
-
Practical package for universal use.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Complete easy-to-manage package.
-

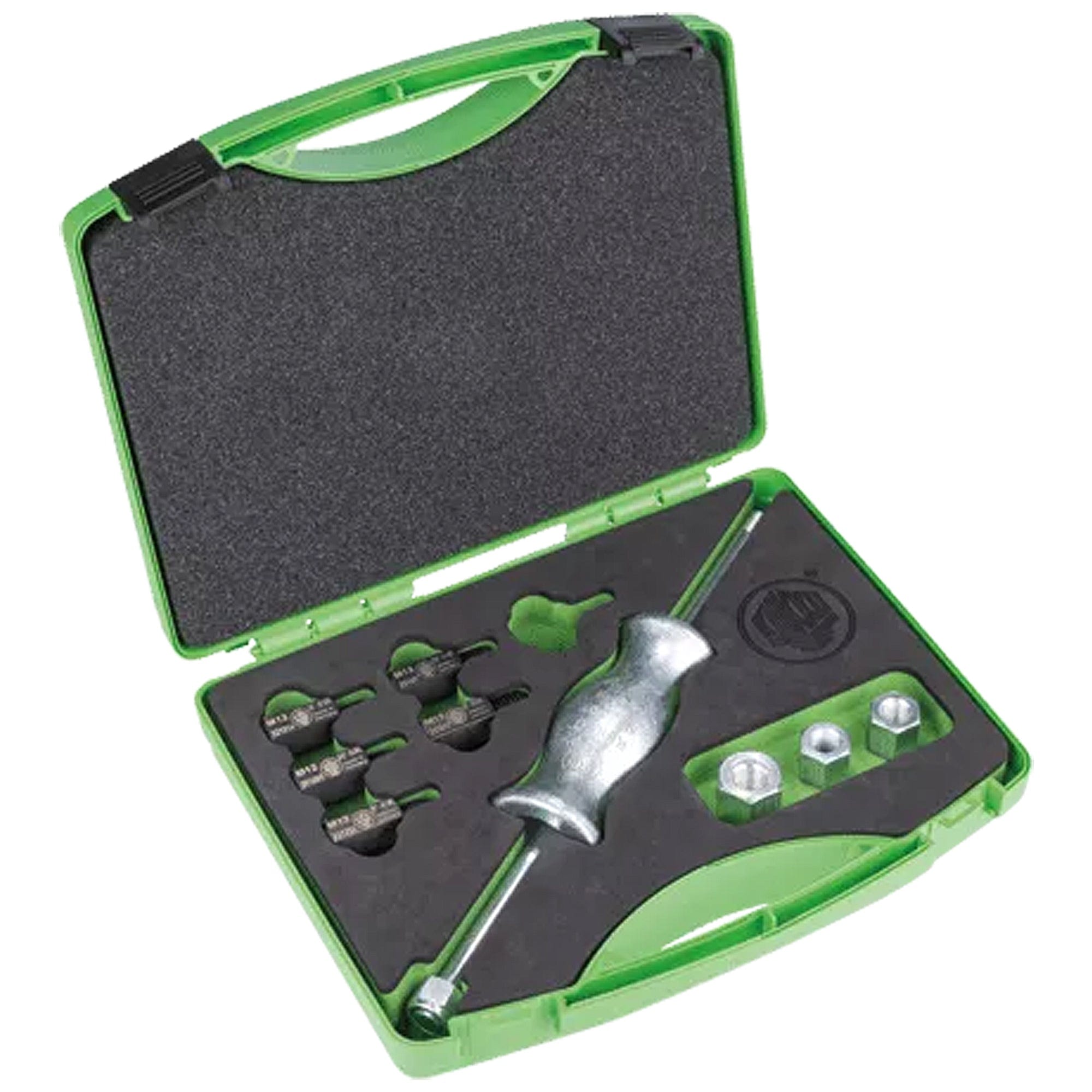

Clean and convenient storage in the plastic case.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
Functionality
-
Slide hammer
-
Internal Extracting
-
Set
