Dowel Pin Puller Kukko KS-22-01 Set of Slide Hammer in Case 11 3/8 inch (290 mm)

Kukko ToolsSKU: WS03-KS-22-01

Sale price$184.99

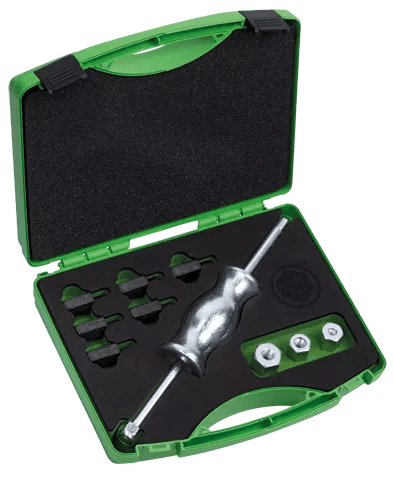

Set Contents:

  • Kukko KS-22-01-GH Slide hammer
  • Kukko GA12-3 Adapter M12 / M3
  • Kukko GA12-4 Adapter M12 / M4
  • Kukko GA12-5 Adapter M12 / M5
  • Kukko GA12-6 Adapter M12 / M6
  • Kukko GA12-8 Adapter M12 / M8
  • Kukko GA12-10 Adapter M12 / M10
  • Kukko VM12-1516 female adapter M12 / 15x16G
  • Kukko VM12-10 female adapter M12 / M10
  • Kukko VM12-7 female adapter M12 / M7

    Technical attribute   Metric Imperial
    Overall length of slide hammer 290 mm 11 3/8 inch
    Mass of impact 0,9 kg
    Slide hammer rod connection thread M12 M12
    Internal thread M12 - M7; M12 - M10; M12 - 15-16G M12 - M7; M12 - M10; M12 - 15-16G
    Threaded adapters (IG + AG) IG: M12 - AG: M3; M4; M5; M6; M8; M10 IG: M12 - AG: M3; M4; M5; M6; M8; M10
    Weight 2.12 kg

    Product Data Sheet


  • For extracting bushings and components with threads (dowel-pins, parallel-keys, bolts, etc.).
  • Kukko screw adapters can be combined with counter supports and slide hammers.
  • Milled thread treated with special coating.
  • Secure storage in special foam.
  • MPN #KS-22-01
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.

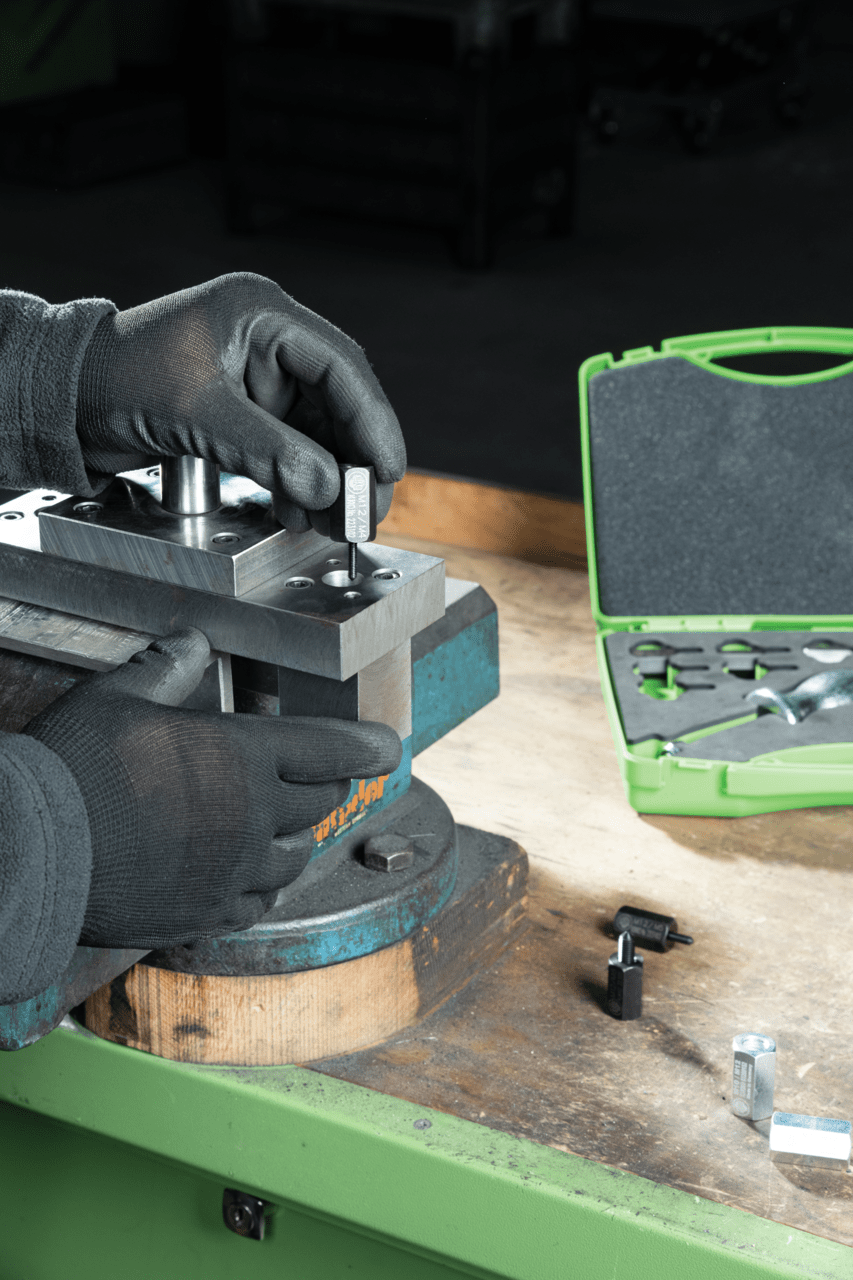

  • Extracting register pins: To extract parts with inner and outer threads such as register pins, taper pins or cylinder dowels
  • Measuring function: The thread can be clearly identified with the help of the measurements lasered onto the thread adapters
  • Exchange/replacement: Thanks to the adapter's modular construction with a flexible pin, this can be cheaply replaced by a standard part in the event of breakage.
  • Practical package for universal use
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Complete easy-to-manage package

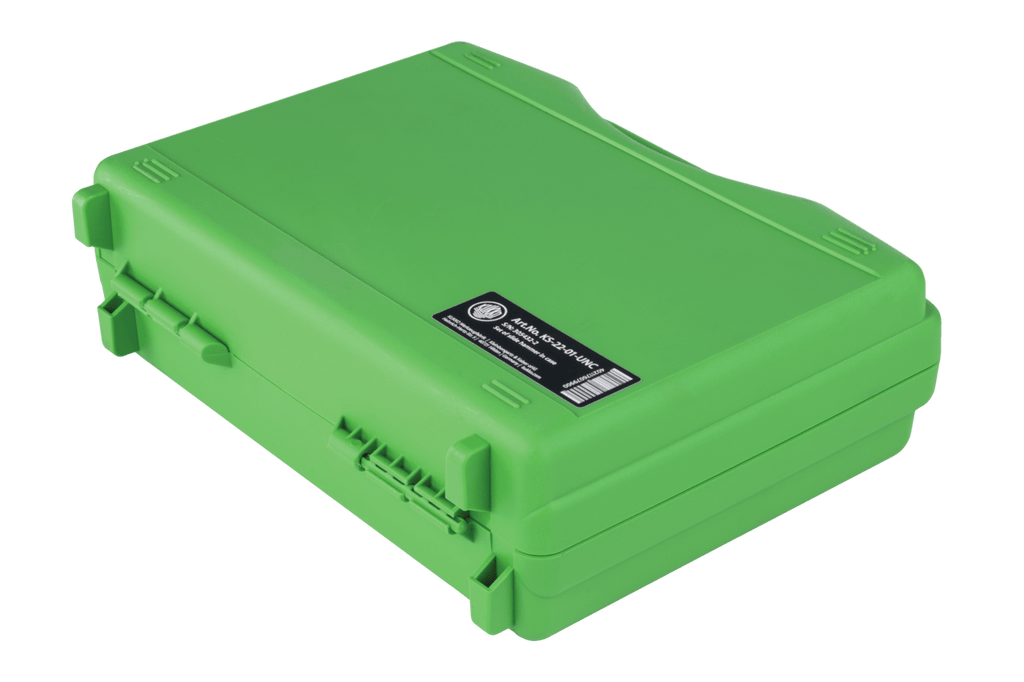

  • Clean and convenient storage in the plastic case

    KUKKO quality standards

    • Quality made in Germany.

    • Strong design, high performance and long service life.

    • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

    • Safety label to ensure protection of intellectual property
