Description:

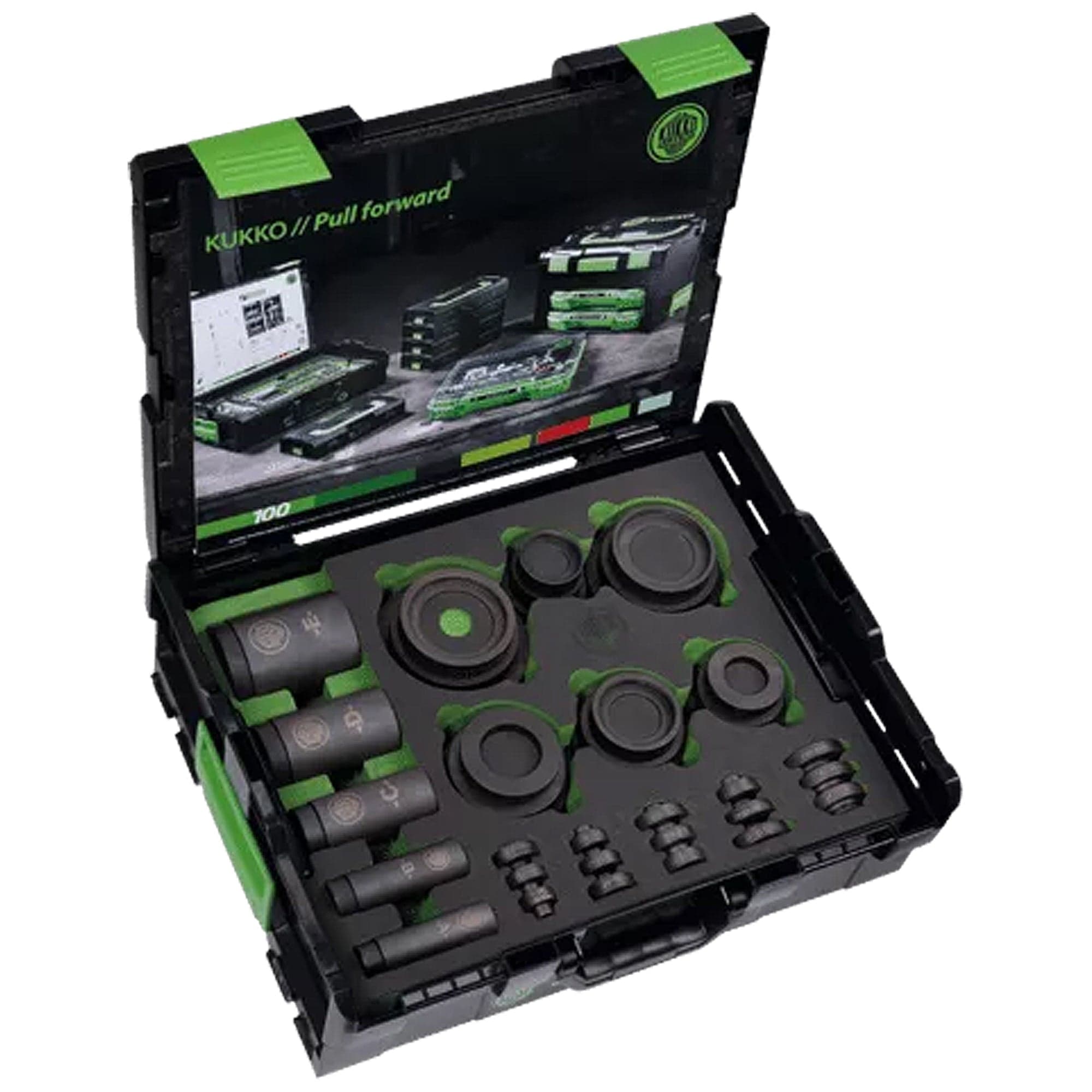

- For bearing installation with a hydraulic press.
- MPN #: K-71-W-C
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Inner diameter of ball bearing |
10 - 50 mm | 3/8 - 2 inch |
Outer diameter of ball bearing |
26 - 110 mm | 1 1/32 - 4 3/8 inch |
Number of impact sleeves |
5 St. / pcs. | 5 St. / pcs. |
Diameter of impact sleeves |
15; 20; 30; 40; 55 mm | 19/32; 25/32; 1 3/16; 1 9/16; 2 5/32 inch |
Length of impact sleeve |
77 mm | 3 inch |
Number of rings |
1/16 St. / pcs. | 1/16 St. / pcs. |
Weight |
12.93 kg |
Advantage
-
The combination of impact ring and impact sleeve required for the installation of the ball bearing can be found in the table inside the case cover.
-
The axes, bearing casings and gaskets of the bearing will not be damaged.
-
With the combination of the impact ring and the impact pipe, the installation forces are never directed through the rolling elements of the bearing.
Functionality
-
Ball bearing fitting
-
Removing
-
Set
