Description
Description:

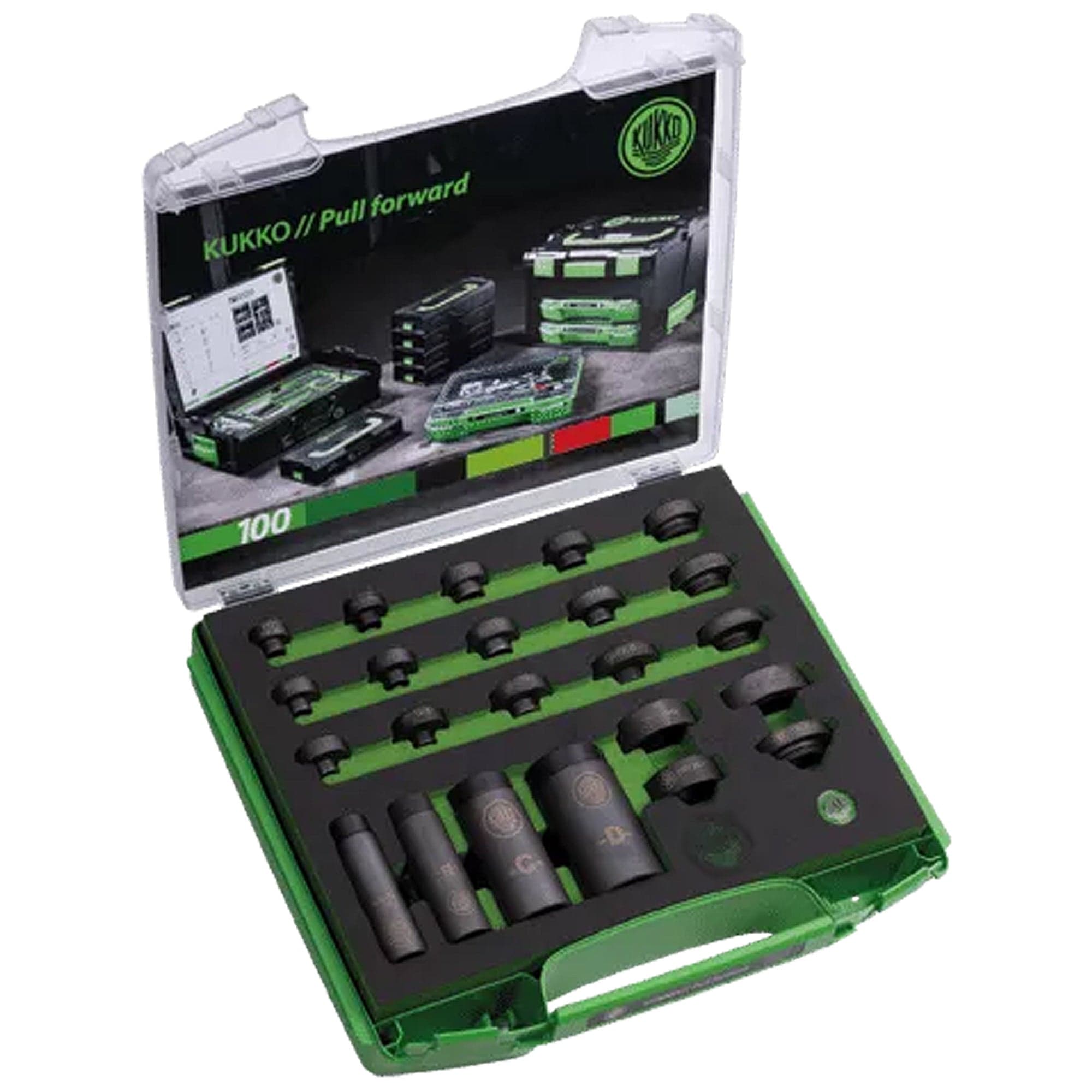

- For bearing installation with a hydraulic press.
- MPN #: K-71-W-A
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Inner diameter of ball bearing |
10 - 30 mm | 3/8 - 1 3/16 inch |
Outer diameter of ball bearing |
26 - 55 mm | 1 1/32 - 2 3/16 inch |
Number of impact sleeves |
4 St. / pcs. | 4 St. / pcs. |
Diameter of impact sleeves |
15, 20, 30, 40 mm | 19/32; 25/32; 1 3/16; 1 9/16 inch |
Length of impact sleeve |
77 mm | 3 1/16 inch |
Number of rings |
19 St. / pcs. | 19 St. / pcs. |
Weight |
4.72 kg | |
Diameter of impact ring |
3/8 inch |
Advantage
-
The combination of impact ring and impact sleeve required for the installation of the ball bearing can be found in the table inside the case cover.
-
The axes, bearing casings and gaskets of the bearing will not be damaged.
-
With the combination of the impact ring and the impact pipe, the installation forces are never directed through the rolling elements of the bearing.
Functionality
-
Ball bearing fitting
-
Removing
-
Set
