Description
Description:

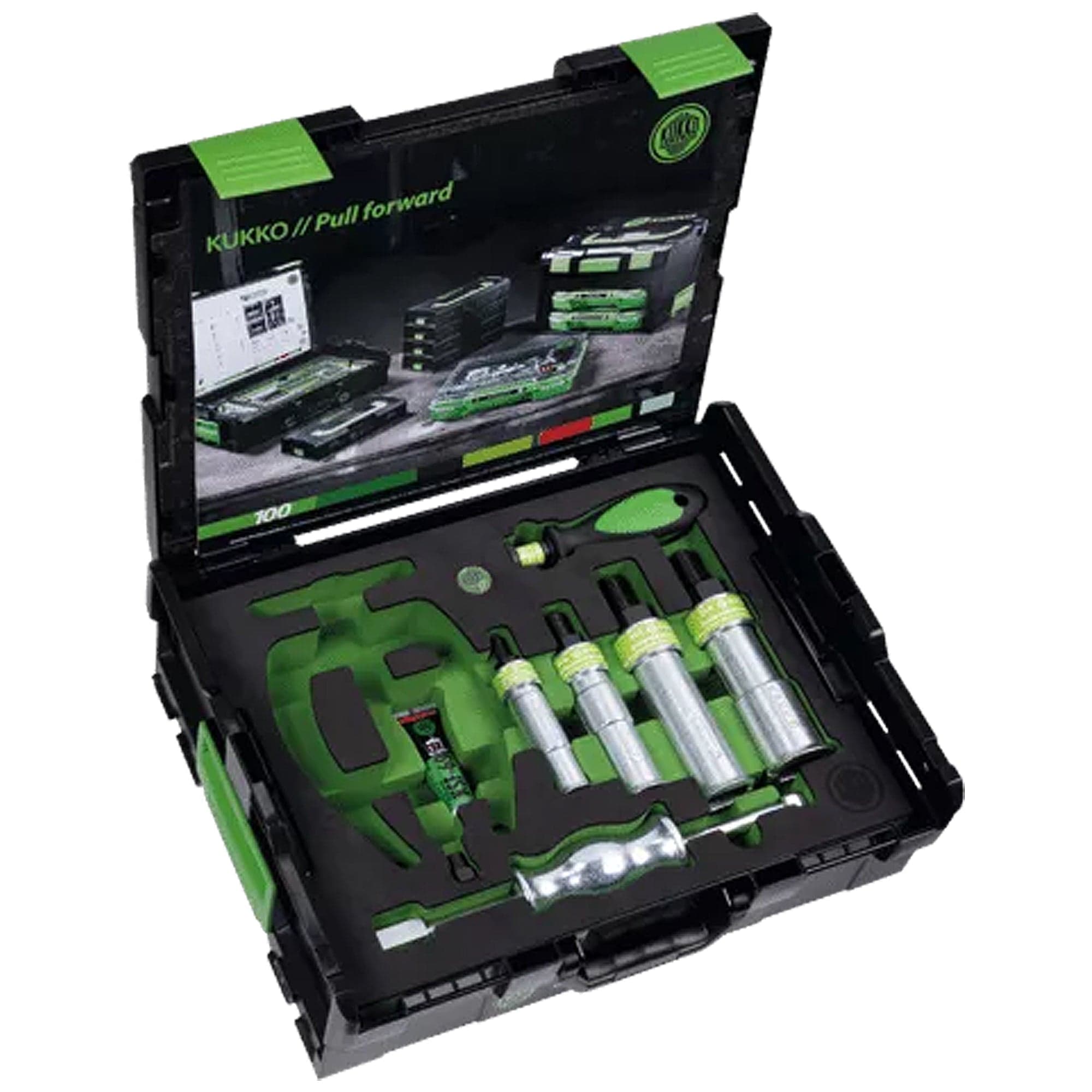

- For extracting inner bearings, bearing outer rings and bushings.
- Use of the internal extractor in combination with slide hammers.
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
- Instructions on the cover.
- Secure storage in special foam.
- Personal KUKKO-Chip-Code.
- MPN #: K-26-B
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Inner diameter of ball bearing |
28 - 70 mm | 1 1/8 - 2 3/4 inch |
Overall length of slide hammer |
290 mm | 11 3/8 inch |
Mass of impact |
0,9 kg | |
Slide hammer rod connection thread |
M12 | M12 |
Thread |
M12 - 15-16G | M12 - 15-16G |
Threaded adapters (IG + AG) |
AG: 15-16G - IG: M10 | AG: 15-16G - IG: M10 |
Weight |
8.435 kg |
Advantage
-
Practical package for universal use.
-
Thanks to the Kukko modular system, the counterstay and the sliding hammer can be combined and subsequently completed with segmented internal extractors, needle bearing extractors, threaded inserts, etc.
-
For better guidance during the removal process using the slide hammer, the G-22 handle is included in the set.
-
Complete easy-to-manage package.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance, and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Slide hammer
-
Internal Extracting
-
Set
