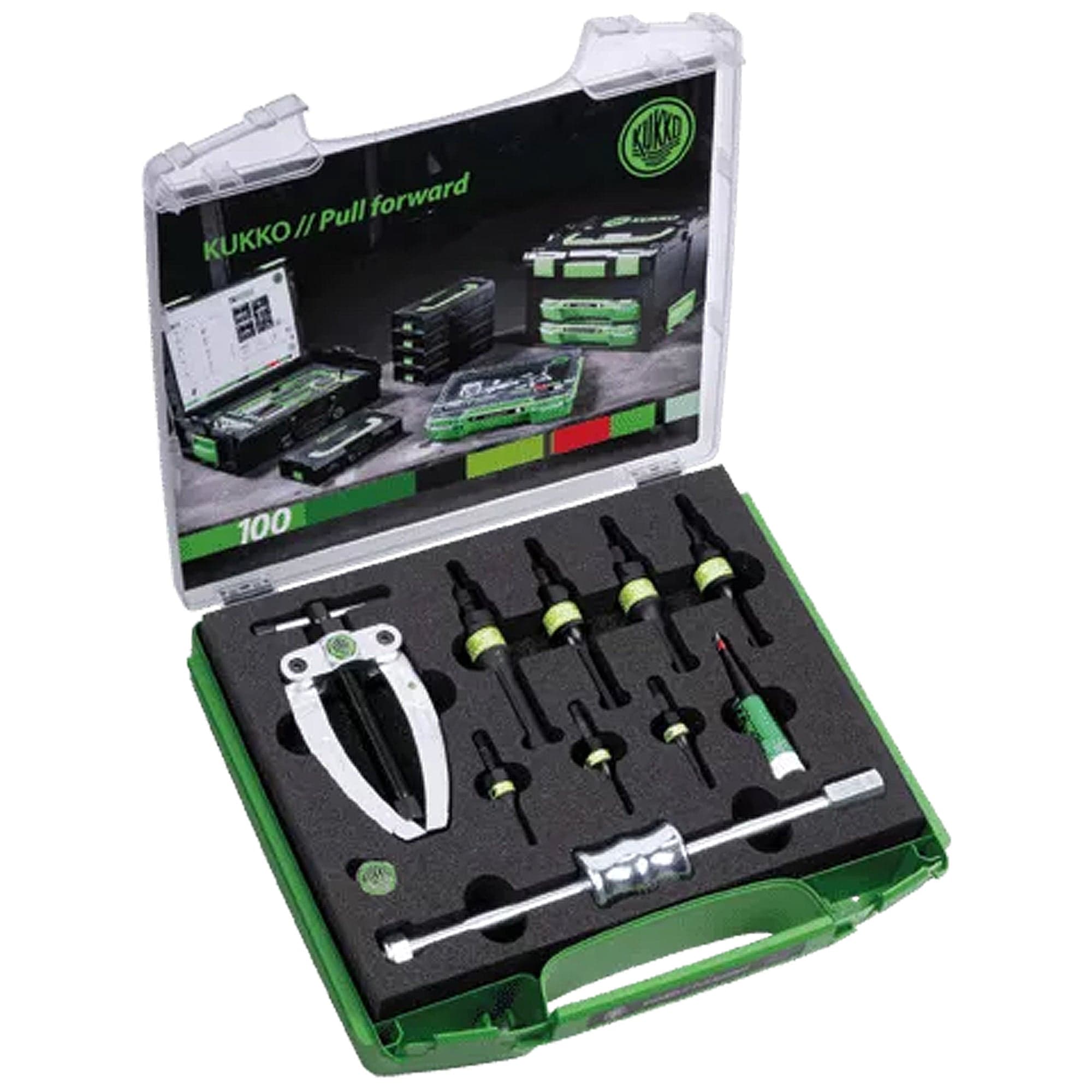

Kukko K-22-C-E Ball Bearing Extracting Set With Counterstay And Slide Hammer 3/16 - 1 3/8 inch (4,8 - 34 mm)

Kukko ToolsSKU: WS03-K-22-C-E

Sale price$973.40



  • For extracting inner bearings, bearing outer rings and bushings.
  • Use of the internal extractor in combination with slide hammers or counter stays.
  • The segmented design with extra fine grasp edges ensures safe extraction.
  • Instructions on the cover.
  • Secure storage in special foam.
  • Personal KUKKO-Chip-Code.
  • MPN #: K-22-C-E
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute



Inner diameter of ball bearing

4,8 - 34 mm 3/16 - 1 3/8 inch

Overall length of slide hammer

240 mm 9 3/8 inch

Mass of impact

0,5 kg

Slide hammer rod connection thread

M10 M10

Internal thread

M10 M10

Threaded adapters (IG + AG)

AG: M10 - IG: M7 AG: M10 - IG: M7


3.405 kg

Product Data Sheet



  • Practical package for universal use.

  • Thanks to the Kukko modular system, the counterstay and the sliding hammer can be combined and subsequently completed with segmented internal extractors, needle bearing extractors, threaded inserts, etc.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Complete easy-to-manage package.

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


  • Slide hammer

  • Counterstay

  • Internal extractors

  • Internal Extracting

  • Set
