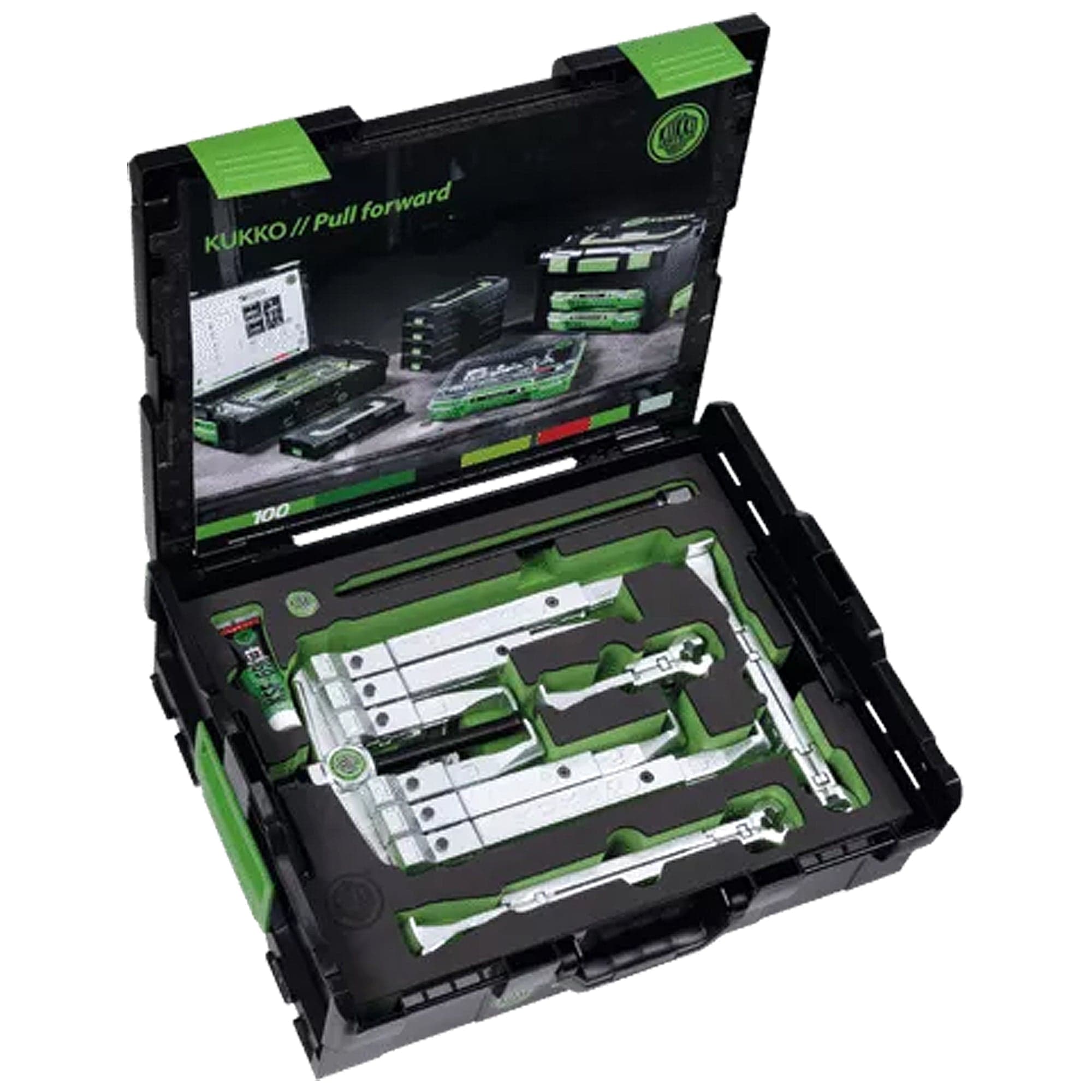

Kukko K-2030-10 Universal 2- And 3-Jaw Pullers Set 3 7/8 - 13 3/4 inch (100 - 350 mm)

Kukko ToolsSKU: WS03-K-2030-10

Sale price$982.60



  • For removing bearings, gears, discs, etc.
  • 8 in 1 kit in the tried-and-tested KUKKO-L-Boxx-System.
  • The set facilitates the assembly of eight different pulling device models through the combination of pulling jaws and extensions.
  • Flexibility assured thanks to two-arm or three-arm design.
  • Standard pulling hook.
  • Jaw extensions.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Short and long mechanical pressure screws.
  • Milled thread treated with special coating.
  • If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
  • Instructions on the cover.
  • Secure storage in special foam.
  • Personal KUKKO-Chip-Code.
  • MPN #: K-2030-10
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute




120; 130 mm 4 3/4; 5 1/8 inch


100 - 350 mm 3 7/8 - 13 3/4 inch

Spread used internal

70 - 180 mm 2 3/4 - 7 1/8 inch

Hexagon drive (male)

17 mm

Maximum torque

80 Nm

Maximum load

4,5 - 6,0 t 4.5 US t


9.19 kg

Number of jaws

3 3


Product Data Sheet



  • Practical package for universal use.

  • Variable reach thanks to optional jaw extensions.

  • Can be installed on various pulling hooks.

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Suitable for pulling asymmetric workpieces.

  • 2-jaw cross-beam with hexagonal profile for good grip.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

  • Stability support from optional series 219 clamp.

  • Complete easy-to-manage package.

  • KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


  • Pullers with sliding, parallel jaws

  • Set
