Description
Description:
- For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.

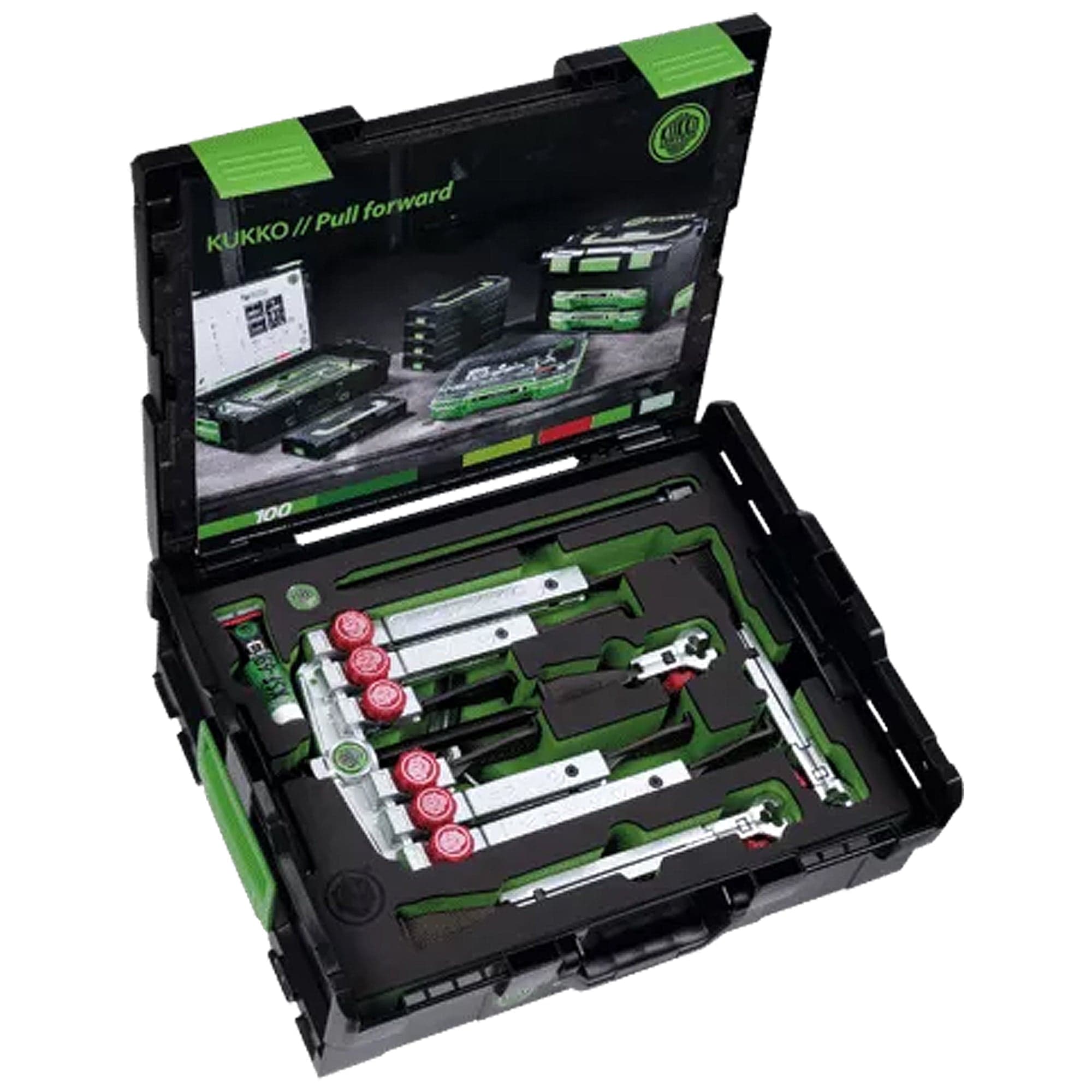

- 8 in 1 kit in the tried-and-tested KUKKO-L-Boxx-System.
- The set facilitates the assembly of eight different pulling device models through the combination of pulling jaws and extensions.
- Flexibility assured thanks to two-arm or three-arm design.
- Thin pulling jaws in various lengths with quick-adjusting capability.
- Jaw extensions.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Short and long mechanical pressure screws.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
- Instructions on the cover.
- Secure storage in special foam.
- Personal KUKKO-Chip-Code.
- MPN #: K-2030-10+S
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
120; 130 mm | 4 3/4; 5 1/8 inch |
Depth |
100 - 350 mm | 3 7/8 - 13 3/4 inch |
Spread used internal |
70 - 180 mm | 2 3/4 - 7 1/8 inch |
Wrench size |
17 mm | |
Maximum torque |
35 Nm | |
Maximum load |
2,5 - 3 t | 2.5 US t |
Weight |
8.5 kg |
Advantage
-
Practical package for universal use.
-
The thin pulling hooks are suitable for narrow, difficult-to-access locations.
-
A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
-
Variable reach thanks to optional jaw extensions.
-
Can be installed on various pulling hooks.
-
Turning the pulling hooks enables them to be used both internally and externally.
-
Suitable for pulling asymmetric workpieces.
-
2-arm cross bar with hexagonal profile for good grip.
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
-
Stability support from optional series 219 clamp.
-
Complete easy-to-manage package.
-
KUKKO-L-Boxx-System compatible with systems by all common manufacturers.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance, and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
Product video on the product can be opened.
Functionality
-
Pullers with sliding, parallel jaws
-
Set
