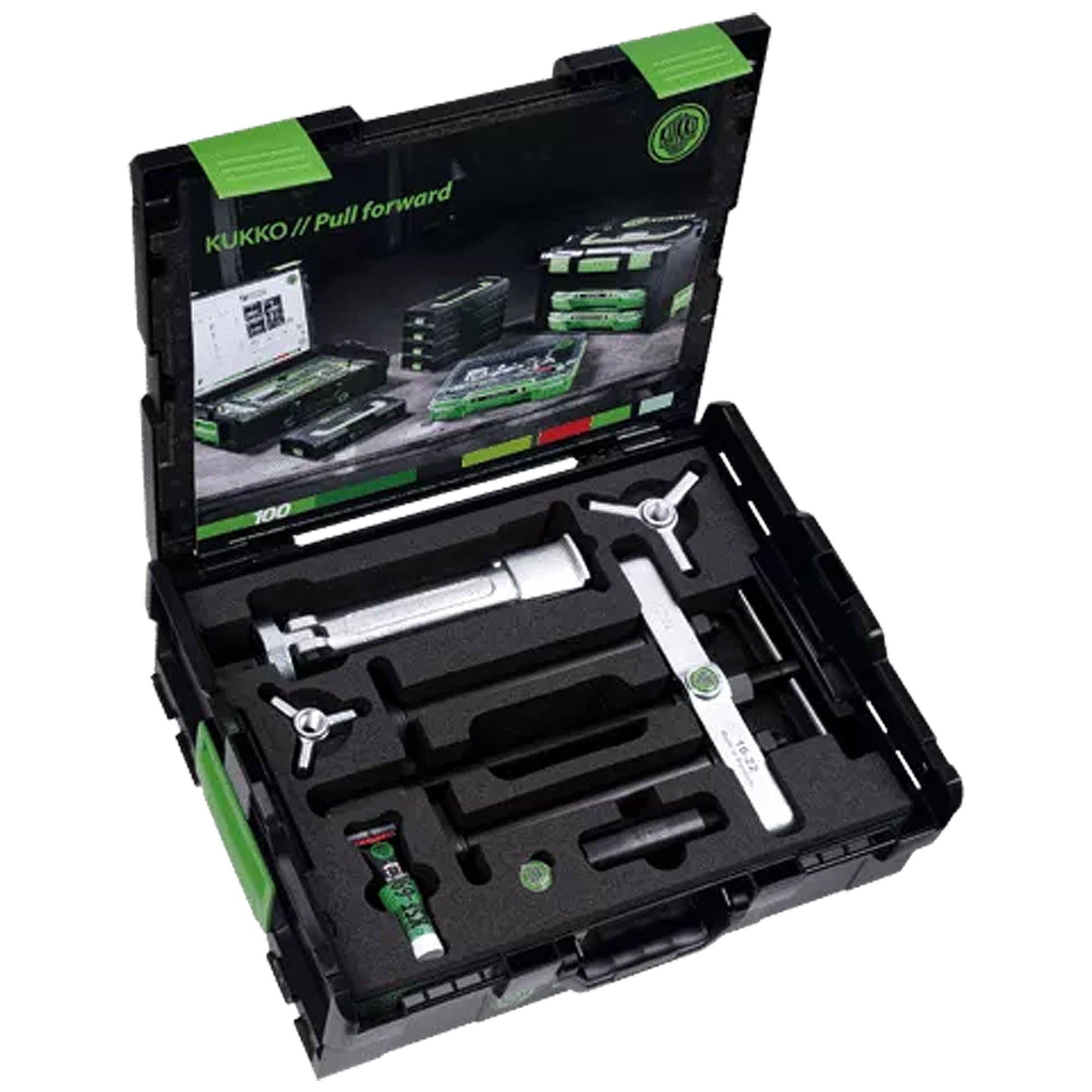

Kukko K-16 Universal Cylinder Liner Puller Set 2 3/8 - 6 1/8 inch (60 - 155 mm)

Kukko ToolsSKU: WS03-K-16

Sale price$1,210.50


  • For extracting cylinder liners in commercial vehicles and industry.
  • Three expansion elements guarantee optimal adaptation of the internal extractor to the respective application.
  • The counter support nuts' friction resistance is reduced to a minimum as a result of the built-in pressure bearing (size 2 to 5).
  • With their support struts, the counter supports are particularly suited for large cylinder liners and ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.

    Technical attribute  Metric Imperial
    Inner diameter of ball bearing 60 - 155 mm 2 3/8 - 6 1/8 inch
    Distance of side screw 85 - 250 mm 3 3/8 - 9 7/8 inch
    Depth of side screw 125 - 250 mm 4 7/8 - 9 7/8 inch
    Maximum load 7t 7.5 US t
    Weight 10.995 kg

Product Data Sheet



  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

KUKKO Quality Standards:

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
  • Safety label to ensure protection of intellectual property.
  • A tube of KUKKO special grease included for pressure spindle.


  • Internal extractors
  • Internal Extracting
