Description

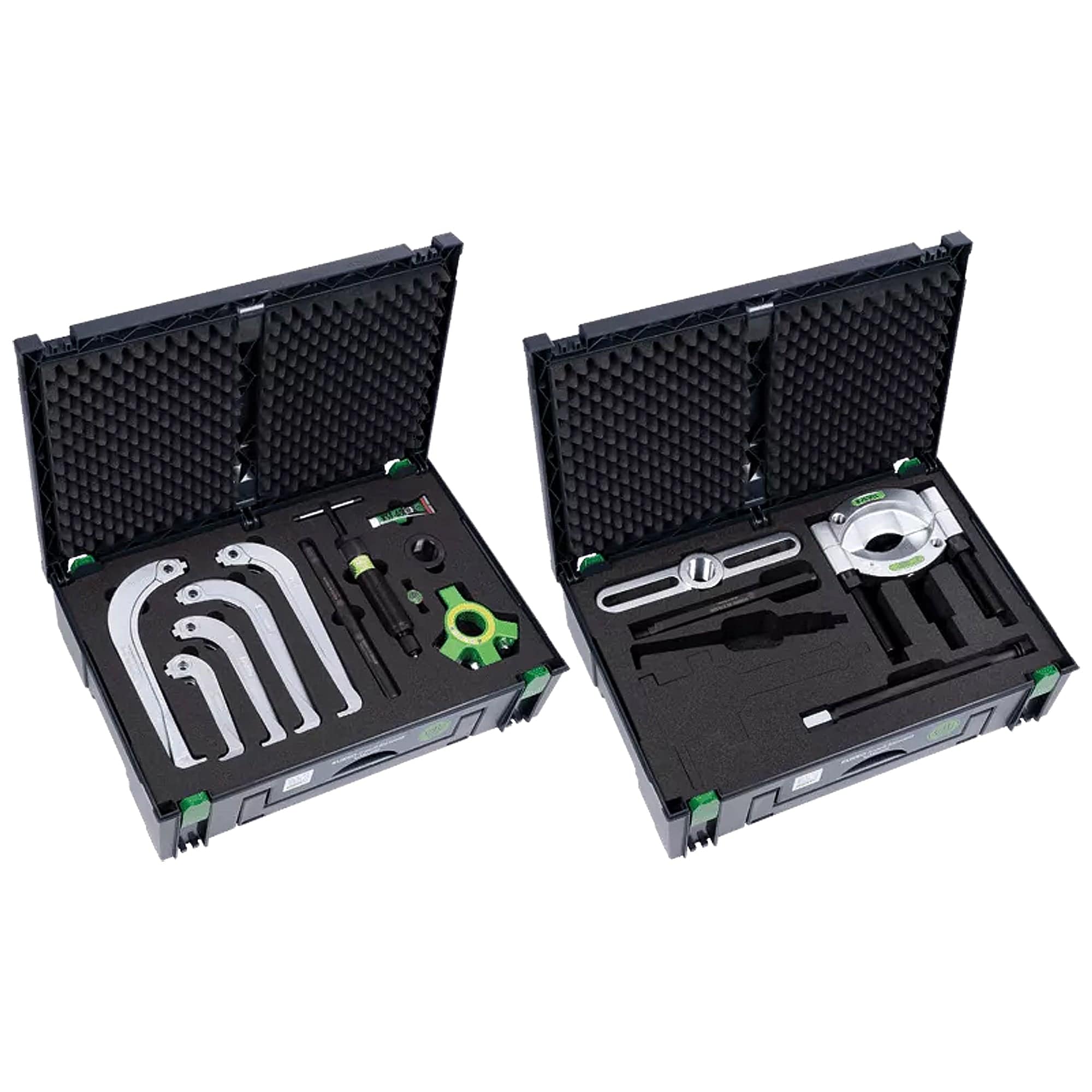

Set Contents:
- 818-0 Pulling device with hydraulic screw
- 844-1-B Universal 2-jaw puller with short hydraulic spindle and self-centering jaws
- 844-2-B Universal 2-jaw puller with short hydraulic spindle and self-centering jaws
- 844-3-B Universal 2-jaw puller with short hydraulic spindle and self-centering jaws
- 844-4-B Universal 2-jaw puller with short hydraulic spindle and self-centering jaws
- 844-5-B Universal 2-jaw puller with short hydraulic spindle and self-centering jaws
- 845-1-B Universal 3-jaw puller with short hydraulic spindle and self-centering jaws
- 845-2-B Universal 3-jaw puller with short hydraulic spindle and self-centering jaws
- 845-3-B Universal 3-jaw puller with short hydraulic spindle and self-centering jaws
- 845-4-B Universal 3-jaw puller with short hydraulic spindle and self-centering jaws
- Y-215-3 Separator for hydraulic push/pull device
Description:
- For removing and separating bearings, gears, discs, etc.
- Series is built on a modular system.
- Pullers have the same hydraulic spindle.
- Milled thread treated with special coating.
- Standard pulling hook.
- Flexibility assured thanks to two-arm or three-arm design.
- Easy-to-replace individual components that can be combined in a number of different ways.
- Secure storage in special foam.
- MPN #: 845-855
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
| Technical attribute | Metric | Imperial |
| Spread | 50 - 250 mm | 2 - 9 7/8 inch |
| Depth | 100 - 250 mm | 3 7/8 - 9 7/8 inch |
| Diameter of the shaft | 250 mm | 9 7/8 inch |
| Depth of side screw | 6 St. / pcs. | 6 St. / pcs. |
| Maximum torque | 20 t | 22 US t |
| Maximum load | 17.34 | |
| Weight | 37 kg | |
| Number of jaws | 2/3 | 23 |
Advantage:
- Little force required for a strong pulling performance.
- Piston functions on the axis and does not turn in the hydraulic spindle.
- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
- Available as complete hydraulic pullers, individual parts and sets.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Optional conversion to different jaw lengths.
- Practical package for universal use.
- Complete easy-to-manage package.
Kukko Quality Standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
Functionality:
- Series 800
- Set
