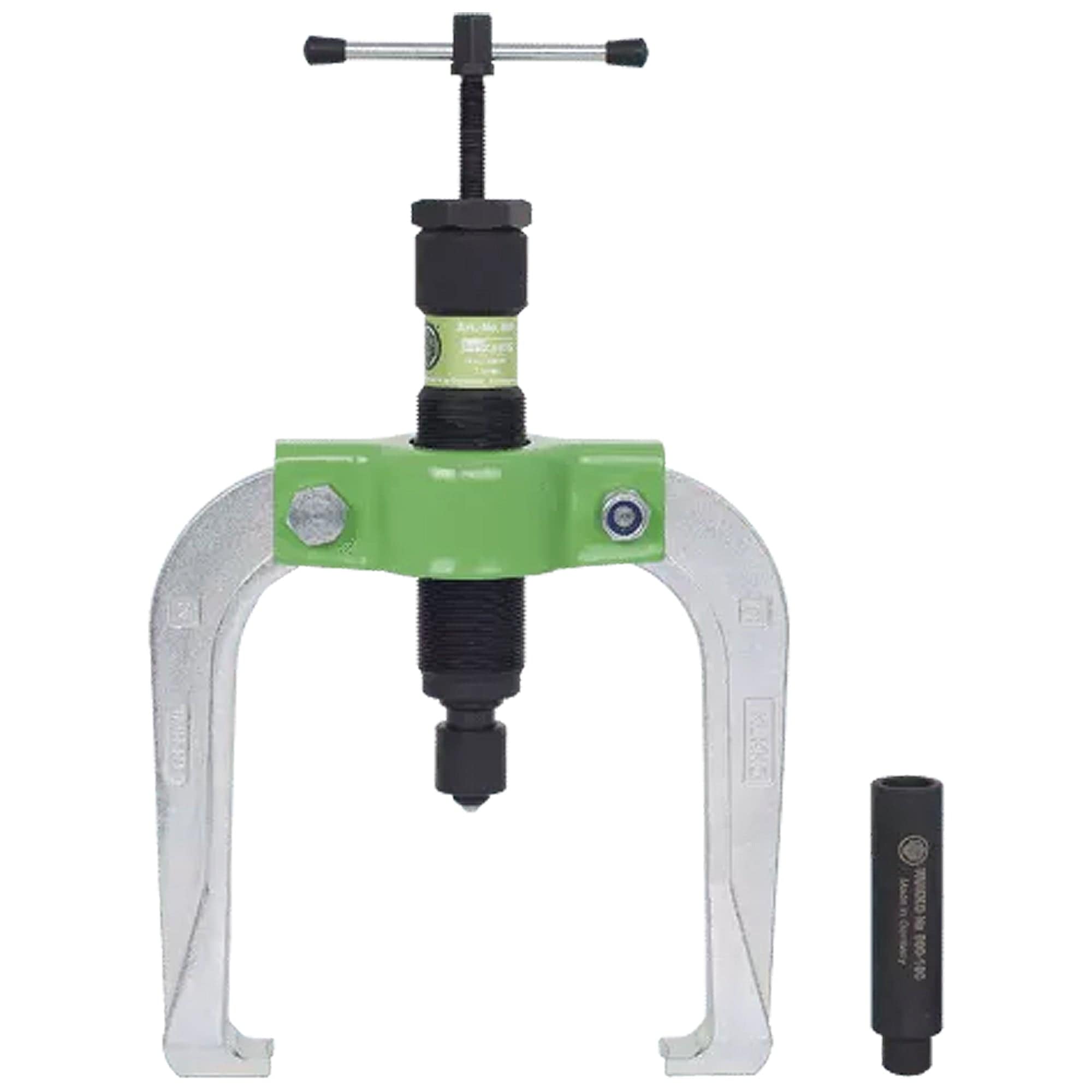

Kukko 844-2-B Universal 2-jaw Puller with Short Hydraulic Spindle and Self-centering Jaws - 3 - 5 7/8 inch (75 - 150 mm)

|
Kukko ToolsSKU: WS03-844-2-B
filler

Price:
Sale price$514.50

Description

  • For pulling particularly tight bearings, gears, discs, etc.
  • If there is adequate free space around the part to be removed, we recommend a 3-jaw puller series 845 for optimal force distribution.
  • Series is built on a modular system.
  • Pullers have the same hydraulic spindle.
  • Easy-to-replace individual components that can be combined in a number of different ways.
  • Standard pulling hook.
  • Two-arm design for space-saving operation.
  • Hydraulic spindle.
  • Milled thread treated with special coating.
  • MPN #: 844-2-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial

Spread 75 - 150 mm 3 - 5 7/8 inch
Depth 150 mm 5 7/8 inch
Maximum torque 40 Nm 29.5 ft lb
Maximum load 10 t 11 US t
Number of jaws 2 2
Weight 4.045 kg
Space below 6,5 mm 1/4 inch
Space next to it 38 mm 1 1/2 inch



Product Data Sheet


Advantage

  • Available as complete hydraulic pullers, individual parts and sets.
  • Little force required for a strong pulling performance.
  • Piston functions on the axis and does not turn in the hydraulic spindle.
  • Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Series 800
