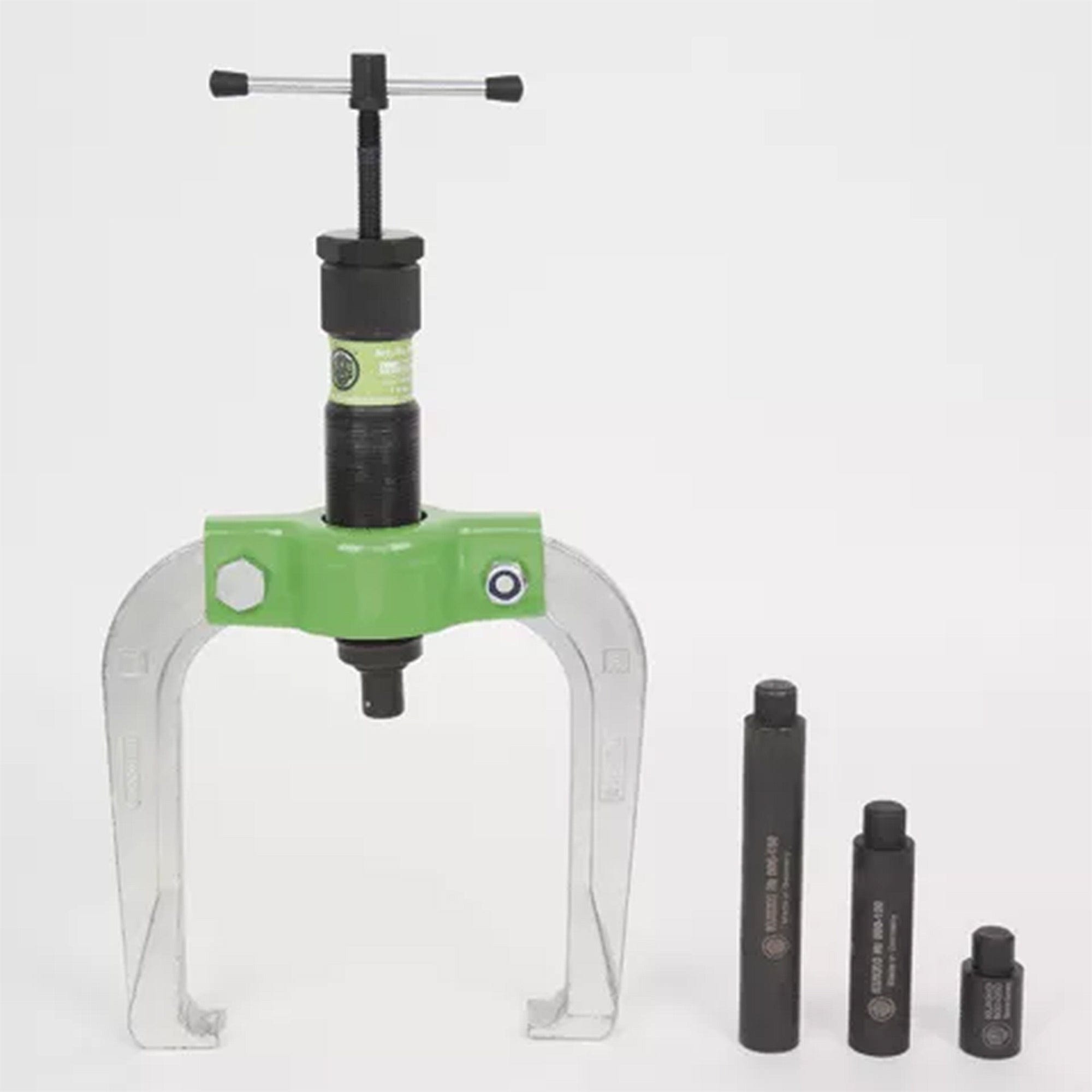

Description

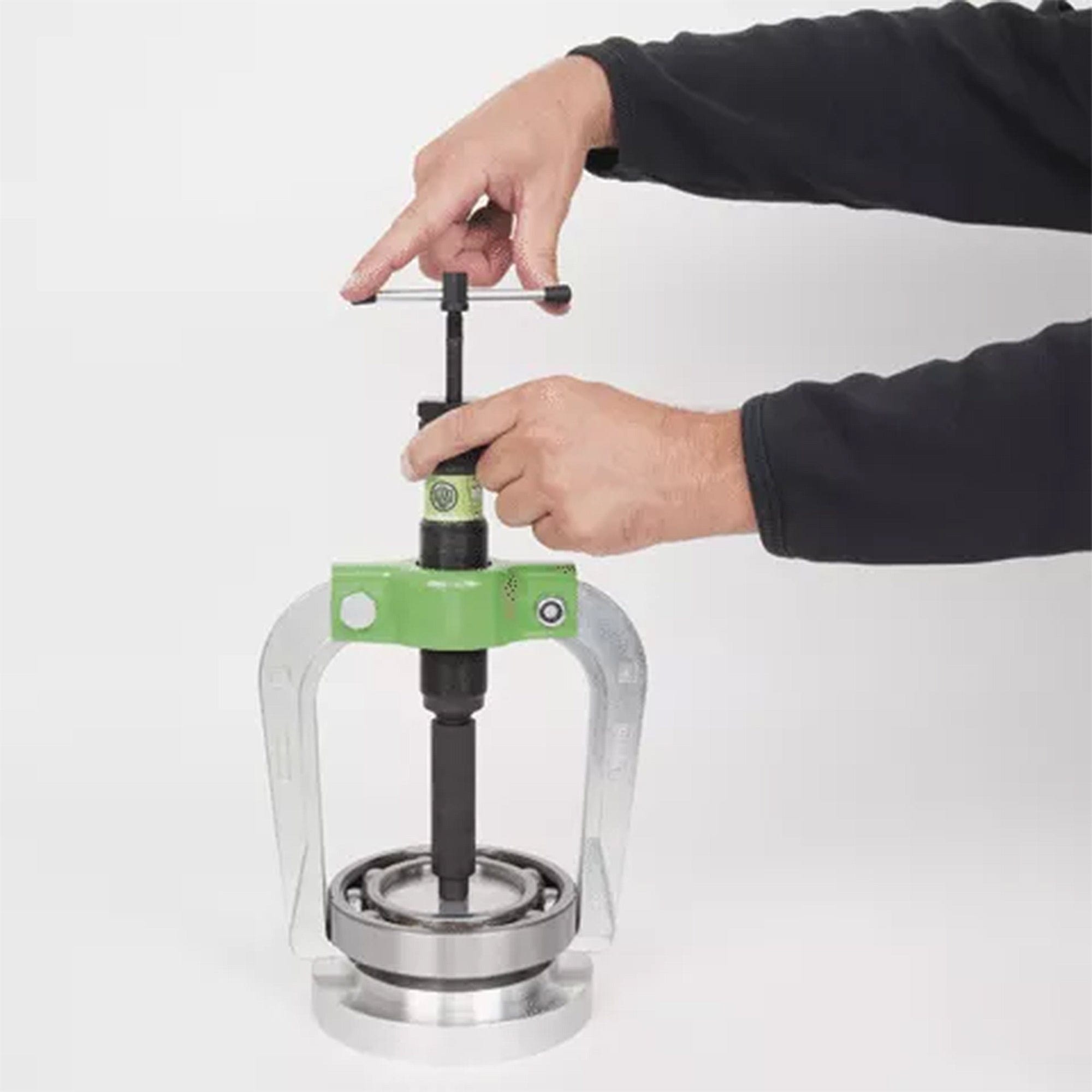

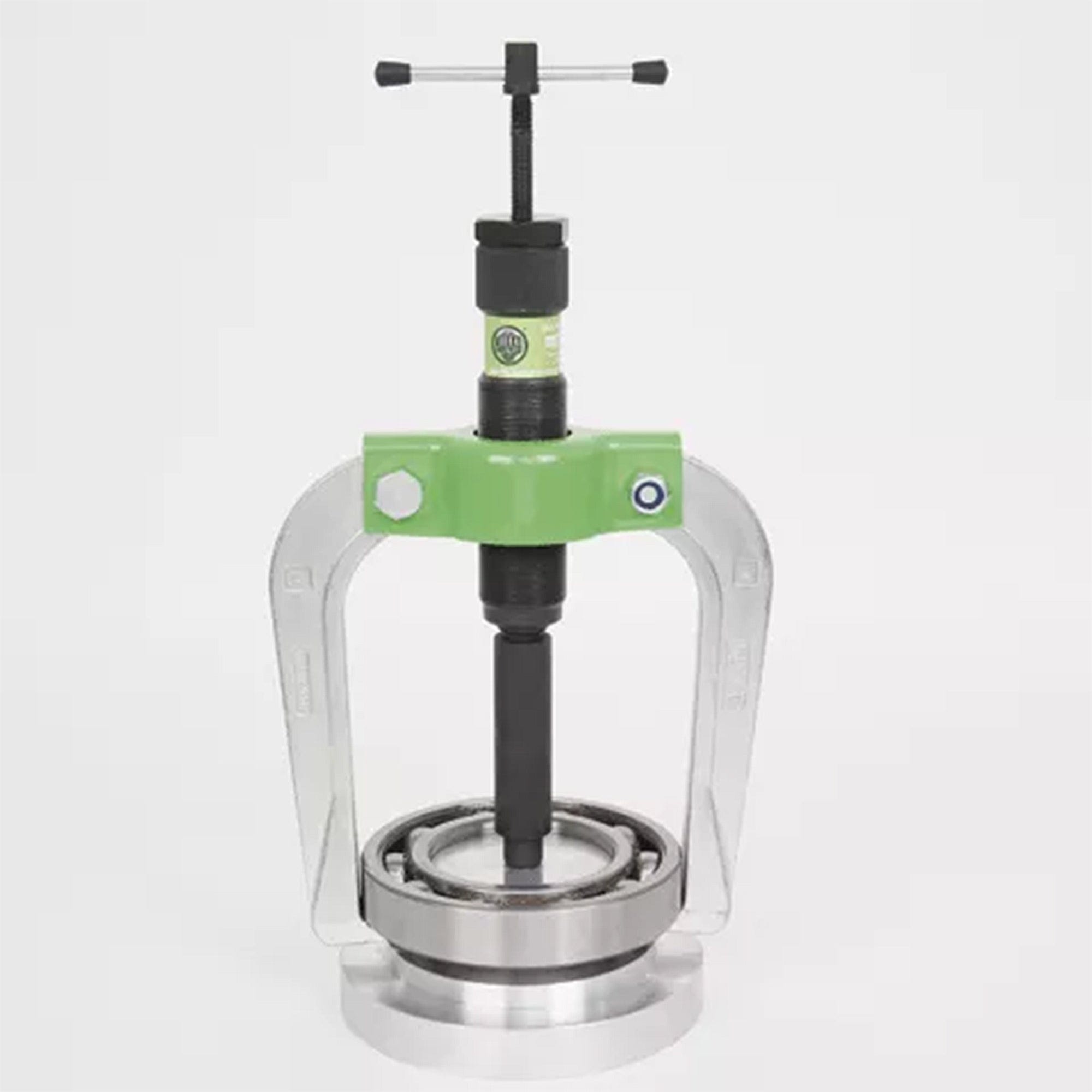

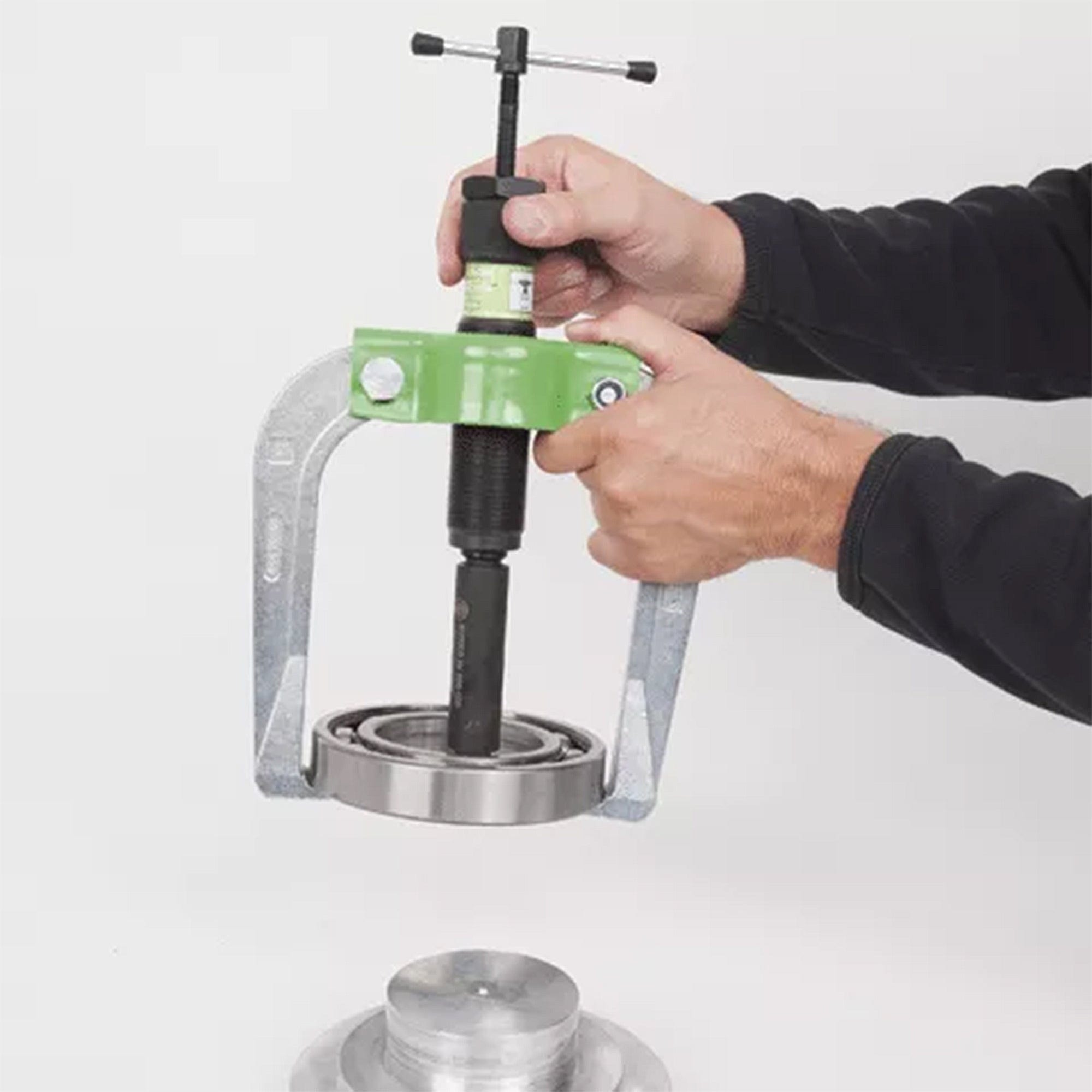

- For pulling particularly tight bearings, gears, discs, etc.
- If there is adequate free space around the part to be removed, we recommend a 3-jaw puller series 845 for optimal force distribution.
- Series is built on a modular system.
- Pullers have the same hydraulic spindle.

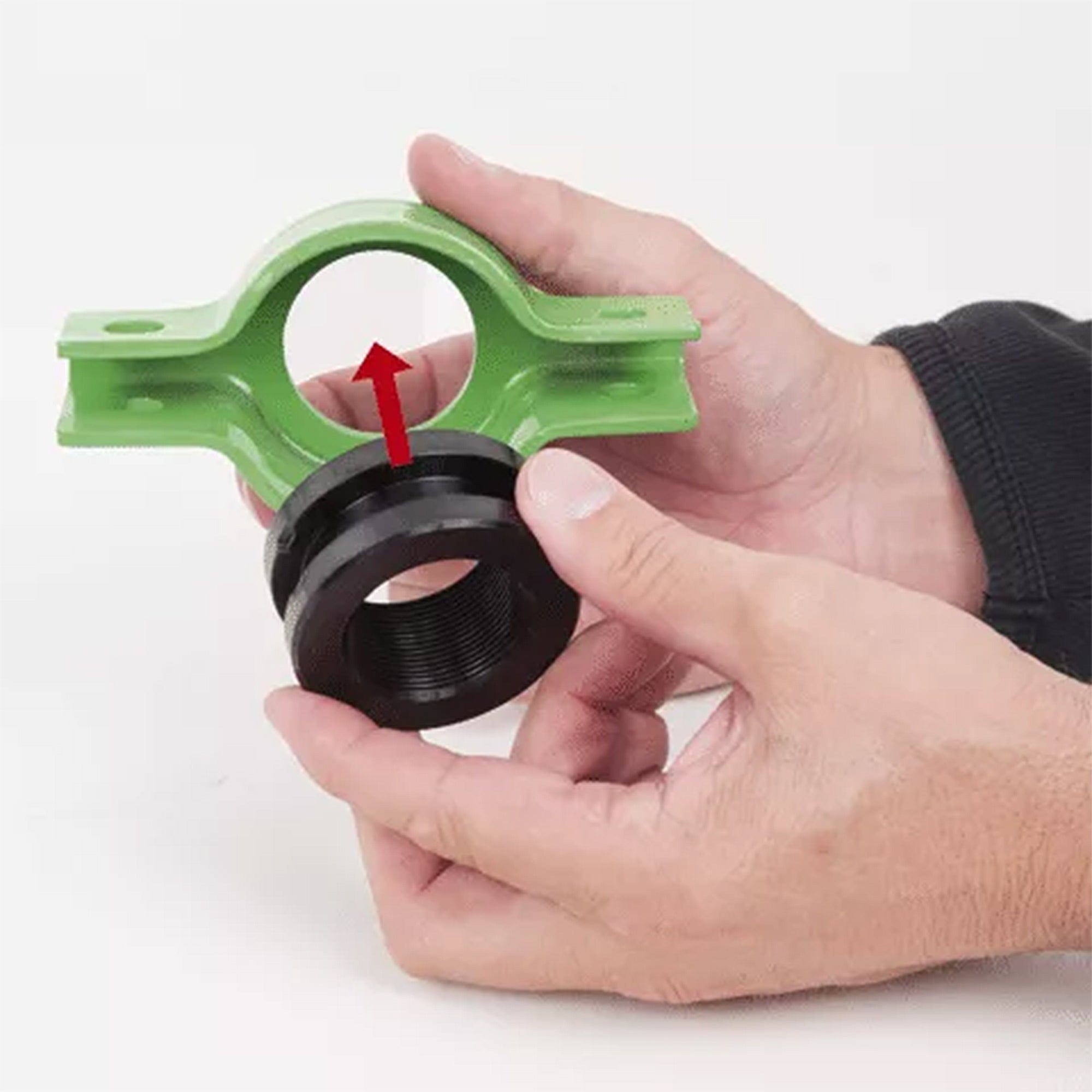

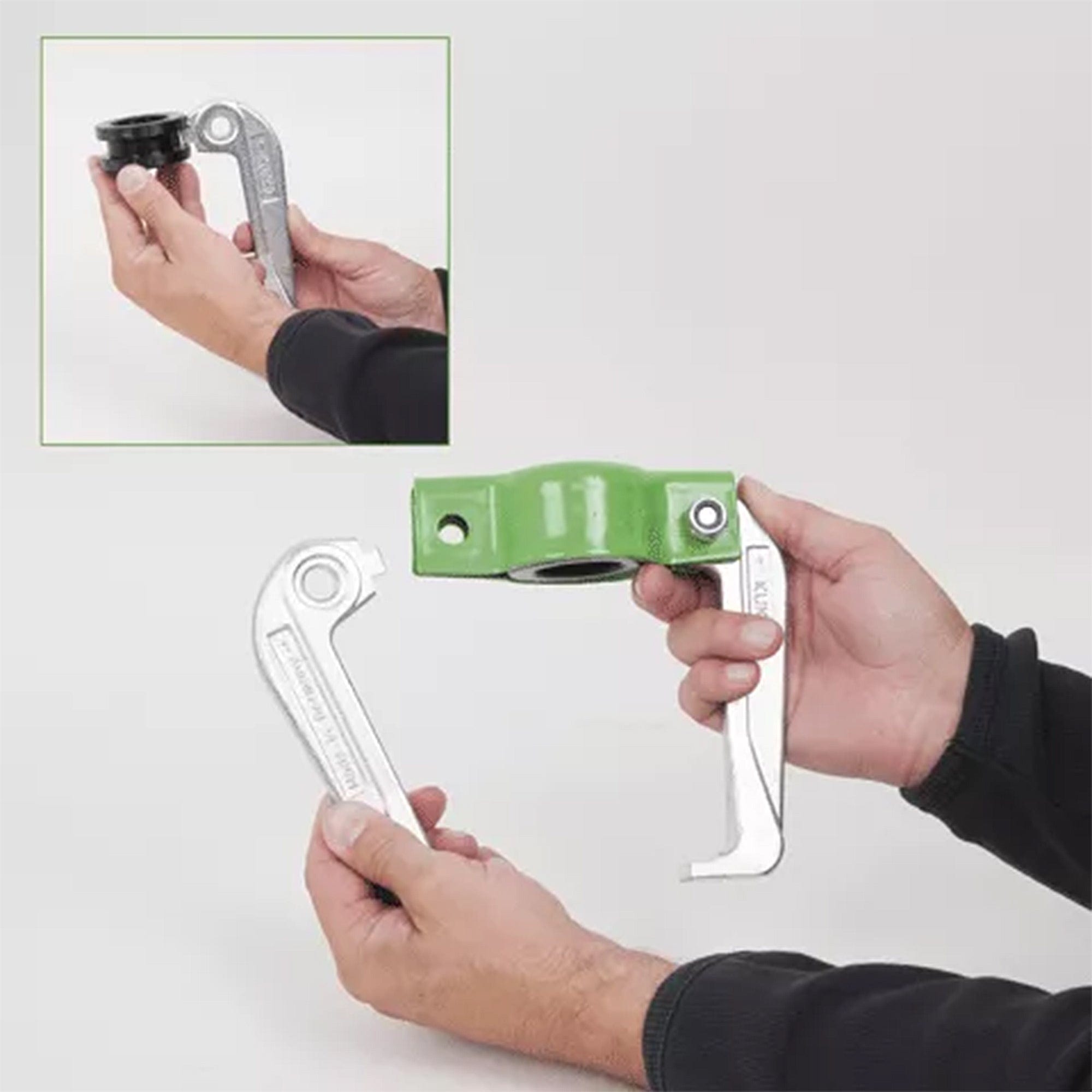

- Easy-to-replace individual components that can be combined in a number of different ways.
- Standard pulling hook.

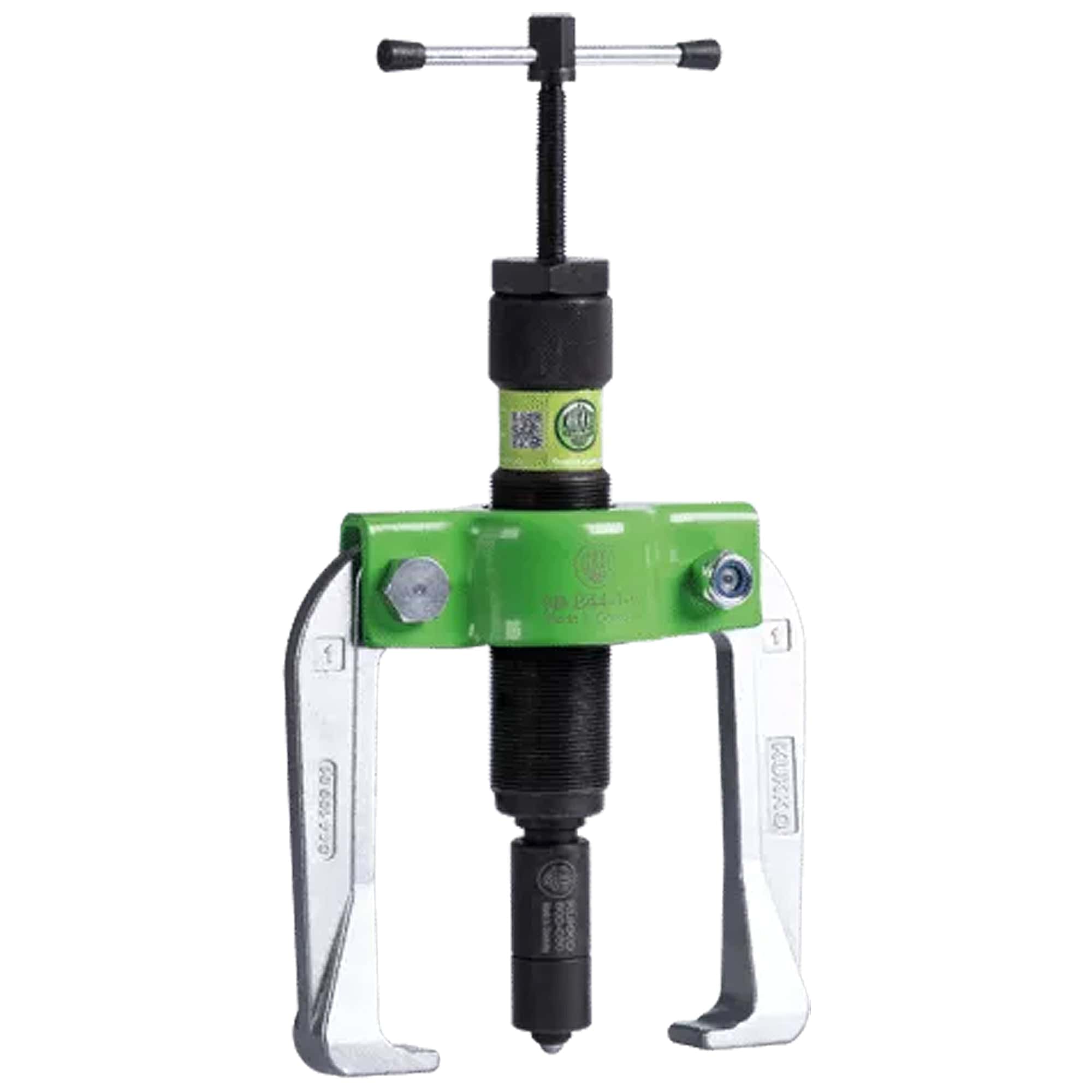

- Two-arm design for space-saving operation.

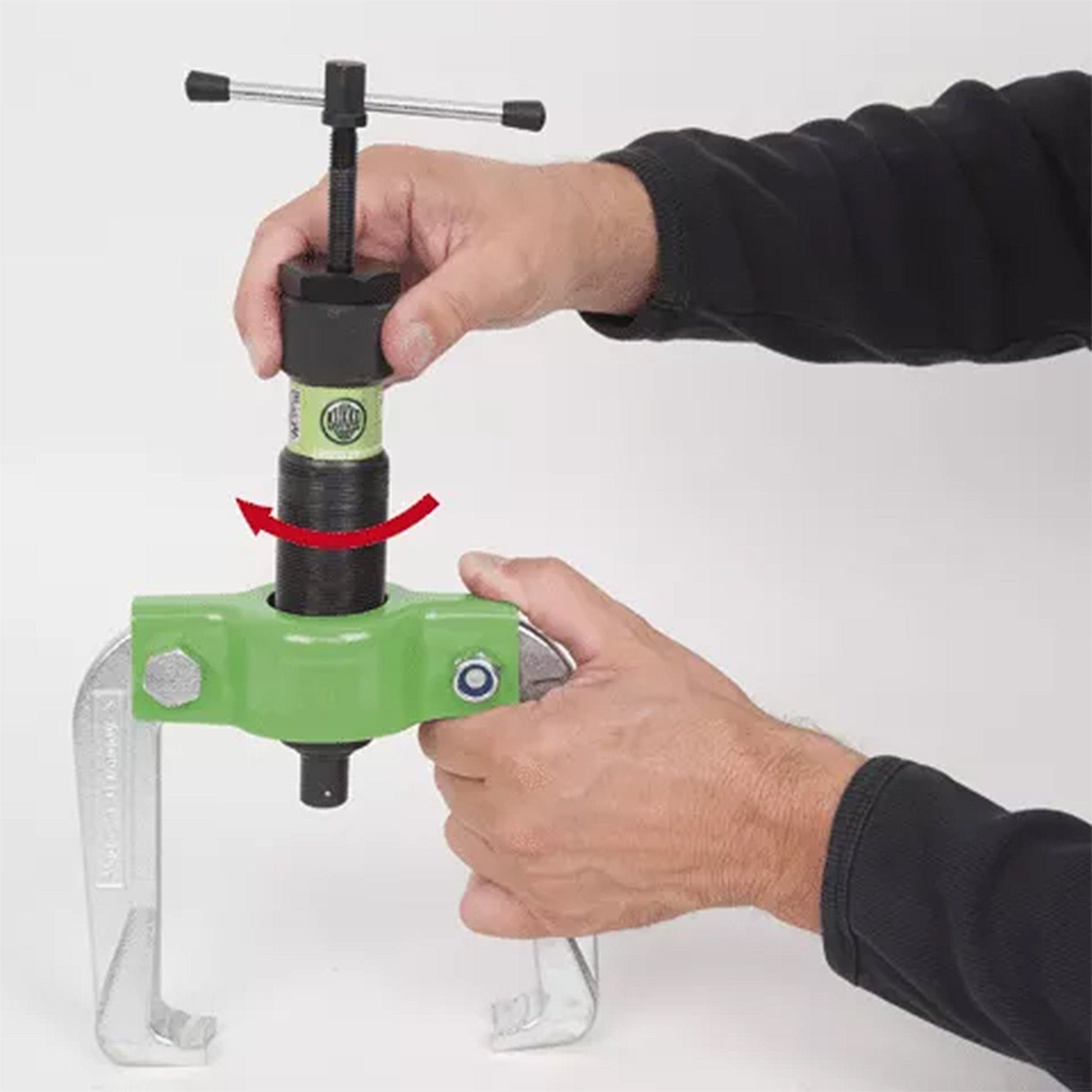

- Hydraulic spindle.
- Milled thread treated with special coating.
- MPN #: 844-1-B
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
| Spread | 50 - 100 mm | 2 - 3 7/8 inch |
| Depth | 100 mm | 3 7/8 inch |
| Hexagon drive (male) | 17 mm | |
| Maximum load | 10 t | 11 US t |
| Number of jaws | 2 | 2 |
| Weight | 3.39 kg | |
| Space below | 6,5 mm | 1/4 inch |
| Space next to it | 40 mm | 1 5/8 inch |
Advantage
- Available as complete hydraulic pullers, individual parts and sets.
- Little force required for a strong pulling performance.
- Piston functions on the axis and does not turn in the hydraulic spindle.

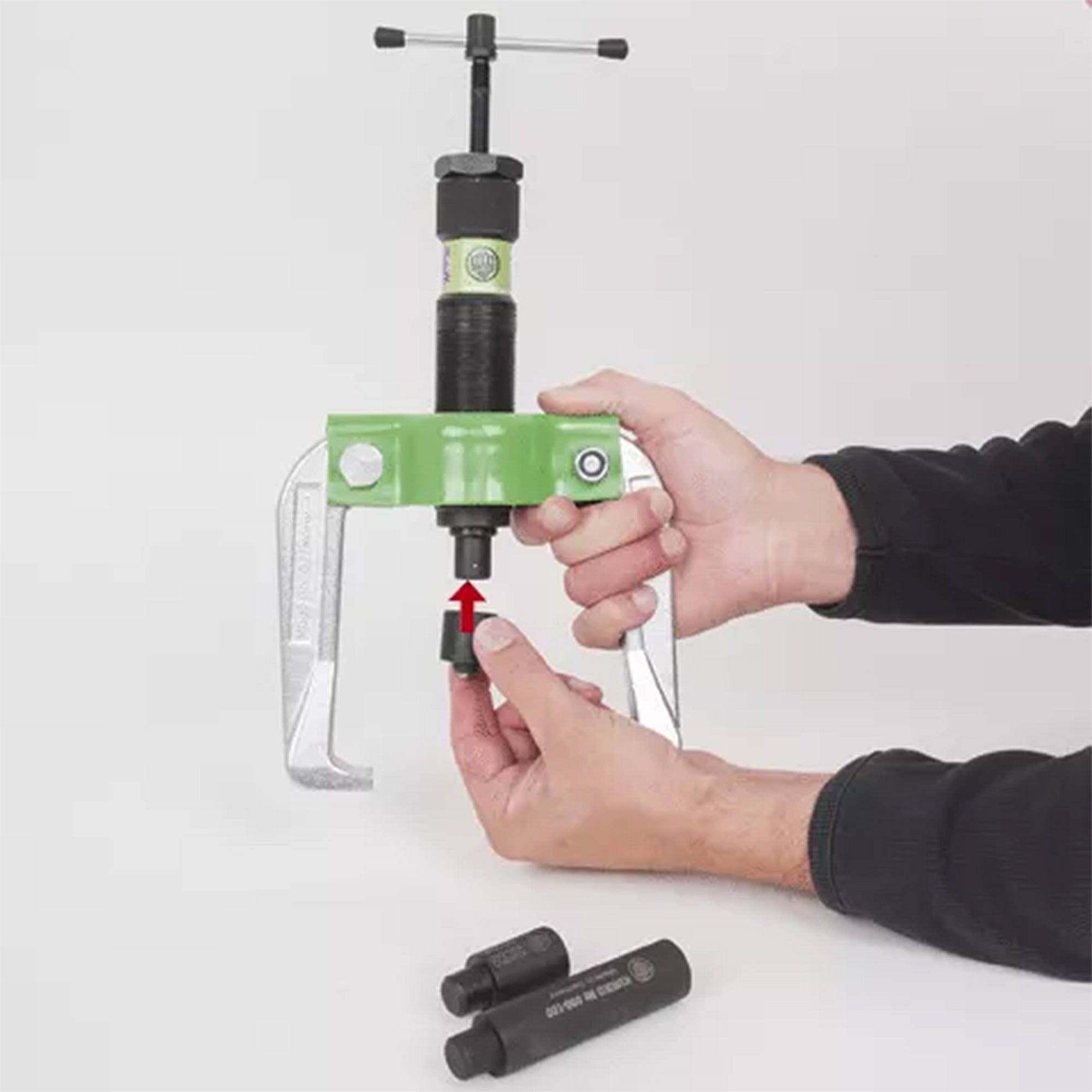

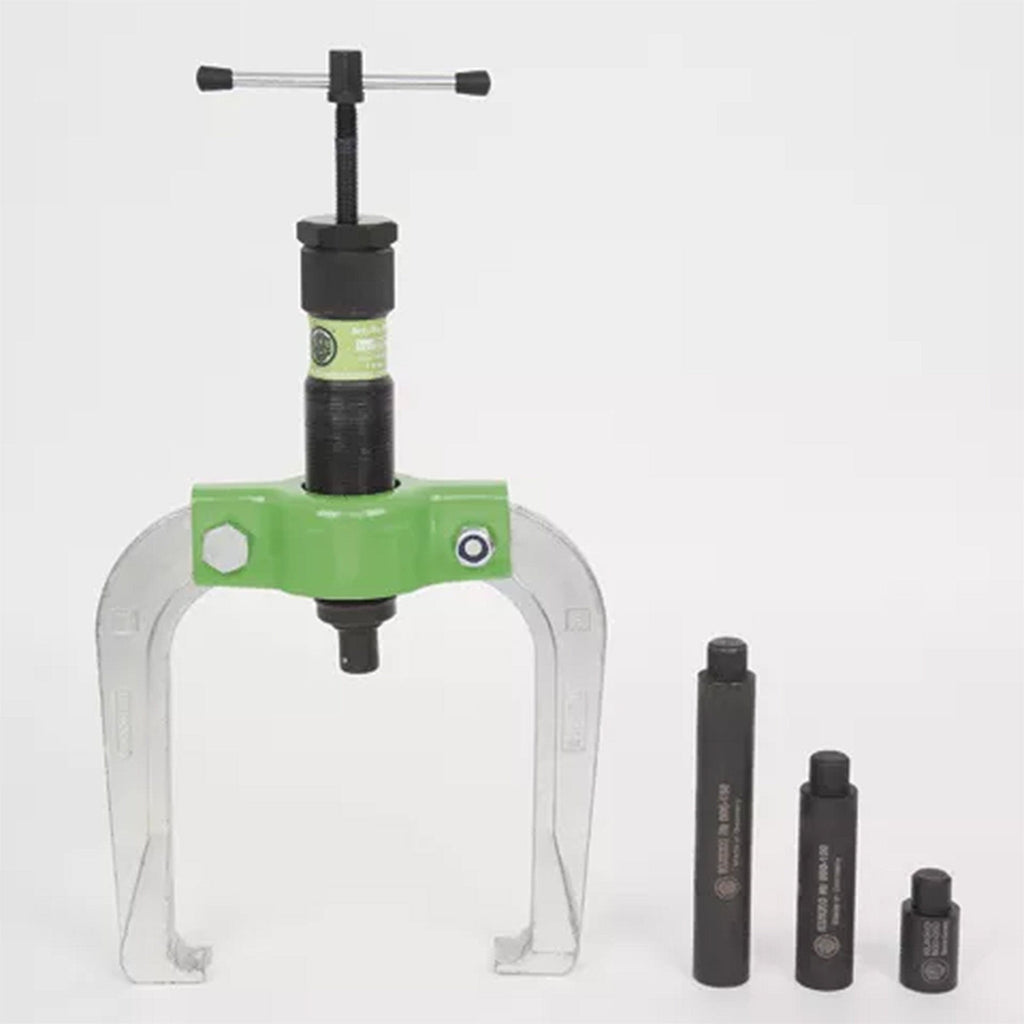

- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
- Series 800
