Description
Description:

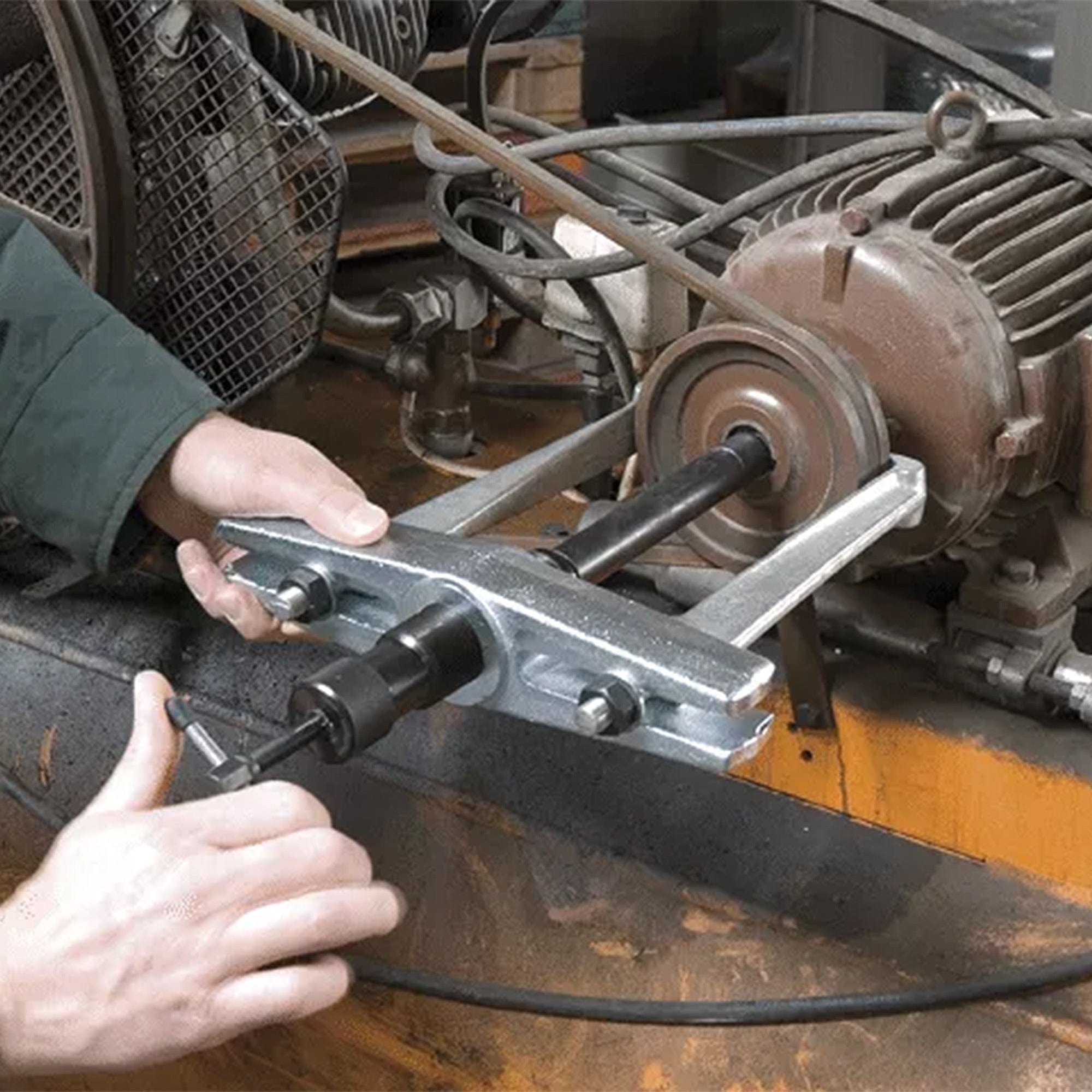

- For removing bearings, gears, discs, etc.
- Standard pulling hook.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Two-arm design for space-saving operation.
- Parallel pulling hooks in every position, even with full load.
- Hydraulic spindle.
- Milled thread treated with special coating.
- MPN #: 820-0
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 85 - 225 mm | 3 3/8 - 8 7/8 inch |
Depth | 225 mm | 8 7/8 inch |
Maximum load | 10 t | 11 US t |
Maximum torque | 40 Nm | 29.5 ft lb |
Weight | 7.24 kg | |
Space below | 8 mm | 3/8 inch |
Space next to it | 10 mm | 3/8 inch |
Number of jaws | 2 | 2 |
Advantage:
- Turning the pulling hooks enables them to be used both internally and externally.
- Available as complete hydraulic pullers, individual parts and sets.
- Little force required for a strong pulling performance.
- Piston functions on the axis and does not turn in the hydraulic spindle.
- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
- Suitable for pulling asymmetric workpieces.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Kukko Quality Standard
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Functionality
- Series 800
