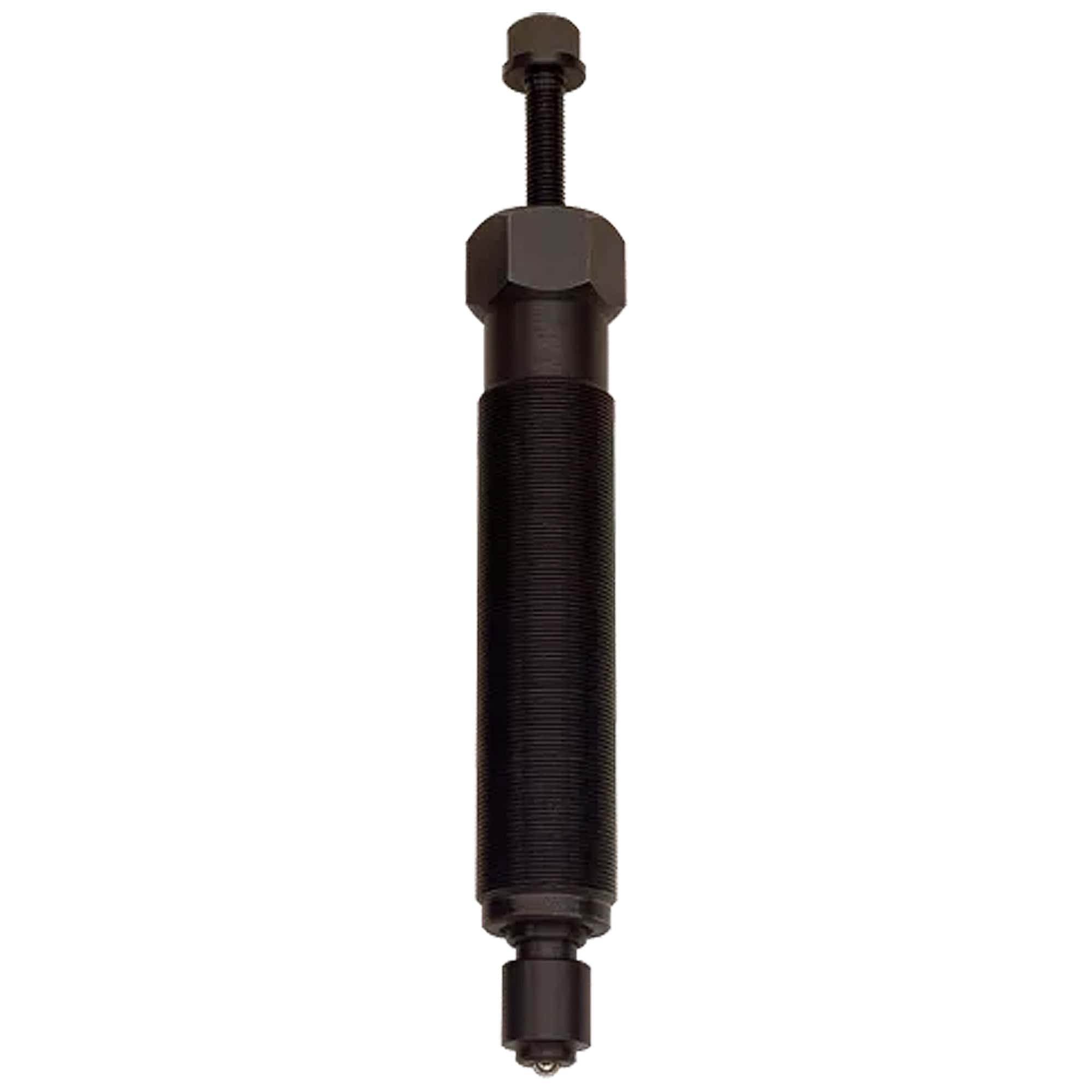

Kukko 802 Universal Short Hydraulic Spindle Puller - 3/8 inch (10 mm)

|
Kukko ToolsSKU: WS03-802
filler

Price:
Sale price$660.60

Description

Description:

  • For pulling particularly tight bearings, gears, discs, etc.
  • Series is built on a modular system.
  • Pullers have the same hydraulic spindle.
  • Easy-to-replace individual components that can be combined in a number of different ways.
  • Grease hydraulics.
  • Hydraulic spindle.
  • Milled thread treated with special coating.
  • MPN #: 802
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Wrench size 19 mm
Stroke 10 mm 3/8 inch
Thread M40x1,5 M40x1,5
Maximum load 20 t 22 US t
Maximum torque 100 Nm 73.5 ft lb
Weight 1.47 kg



Product Data Sheet

Advantage:

  • Piston functions on the axis and does not turn in the hydraulic spindle.
  • Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
  • Spindle head band prevents the wrench from slipping off.
  • Little force required for a strong pulling performance.
  • Available as complete hydraulic pullers, individual parts and sets.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



Kukko Quality Standard

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Safety label to ensure protection of intellectual property.
  • A tube of KUKKO special grease included for pressure spindle.
  • Product video on the product can be opened.

Functionality

  • Hydraulic pressure screws
  • Accessories
  • Series 800
