Description
Description:

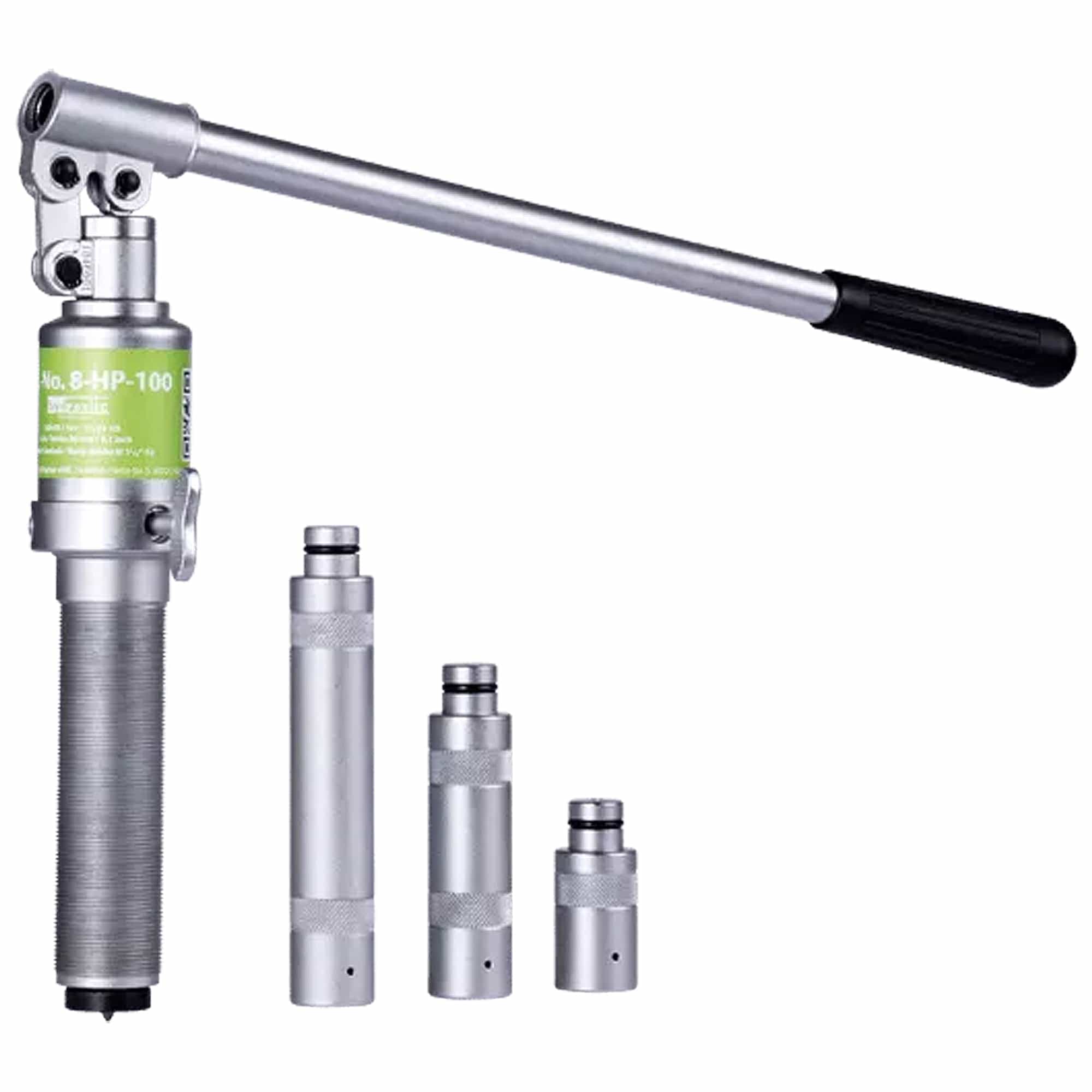

- For use with pulling devices series 844, series 845 and series 13-HP.
- Series is built on a modular system.
- With the new Kukko hydraulic spindles, it is now even easier to generate high pulling forces without having to apply a great deal of force.
- Three extension parts are included in the scope of delivery.
- Hydraulic spindle.
- MPN #: 8-HP-100
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Thread length of hydraulic spindle | 135 mm | |
Stroke | 80 mm | 3 3/16 inch |
Thread | W 1.1/2“-16 | W 1.1/2“-16 |
Maximum load | 10 t | 11 US t |
Weight | 4.455 kg |
Advantage:
- Clear reduction of dismantling times thanks to simple and fast handling.
- The hydraulic spindle can be combined with a number of pullers from the Kukko range.
- No additional oil pumps required as the system is closed.
- Hydraulic spindle is protected by an overloading valve.
- The pump's lever arm can be rotated by 360°.
- The pump's piston is hardened, chrome-plated and tensioned with a spring.
- The extension components enable the range of the hydraulic spindle to be adjusted to meet the relevant requirements.
- Available as complete hydraulic pullers, individual parts and sets.
- Little force required for a strong pulling performance.
- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
Kukko Quality STandard
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Functionality
- Hydraulic pressure screws
- Accessories
- Series 13
