Kukko 71-M Steering Head Bearing Fitting Tool Kit 1 - 1 3/8 inch (25 - 35 mm)

|
Kukko ToolsSKU: WS03-71-M
filler

Price:
Sale price$403.20

Description

Description:

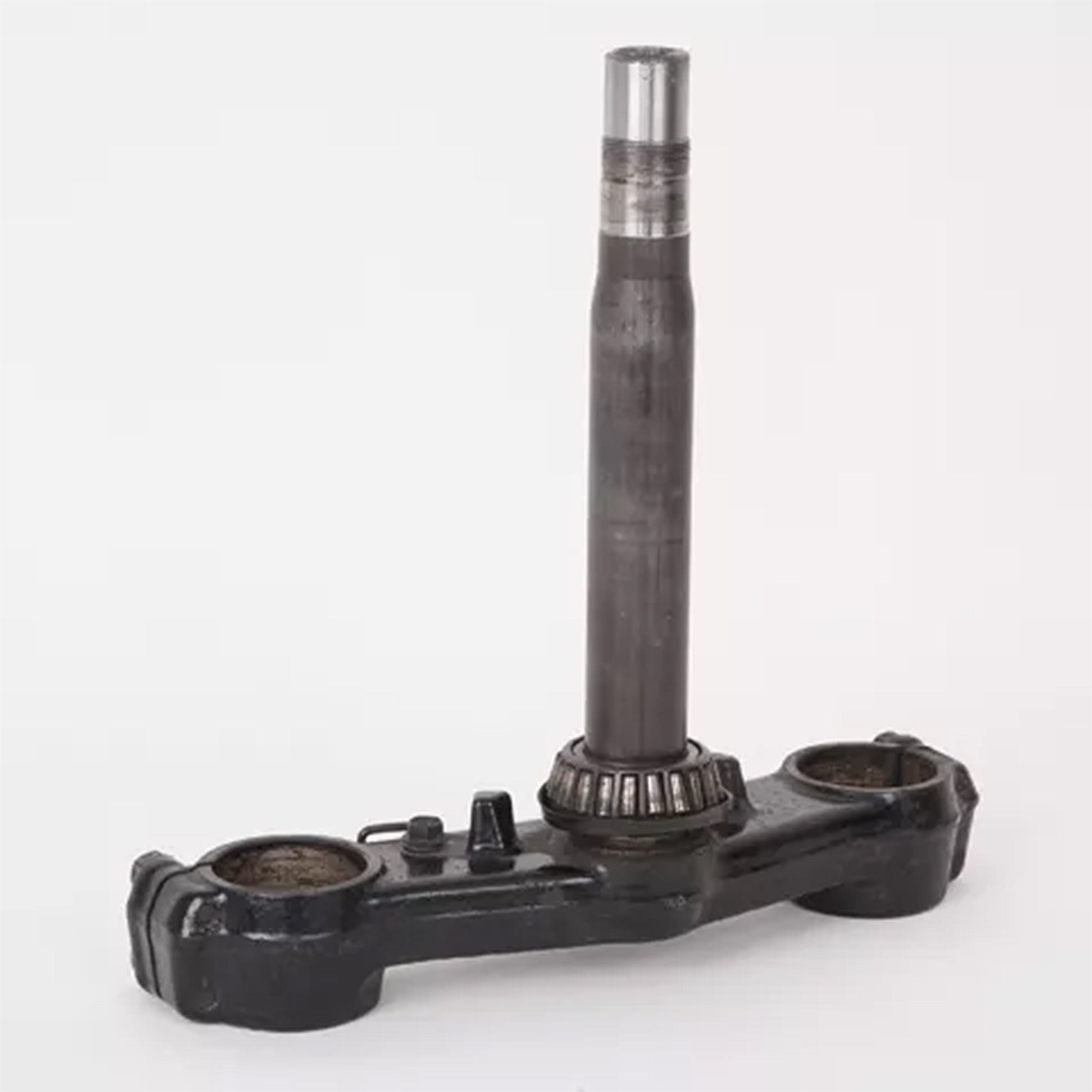

  • For installation of steering head bearings on motorcycles
  • Set is suitable for all motorcycles.
  • The following are also included in the set: 1 clipping device for fluid hoses
  • Specifically intended for the replacement of the steering head bearing.
  • Instructions and conversion table in the cover.

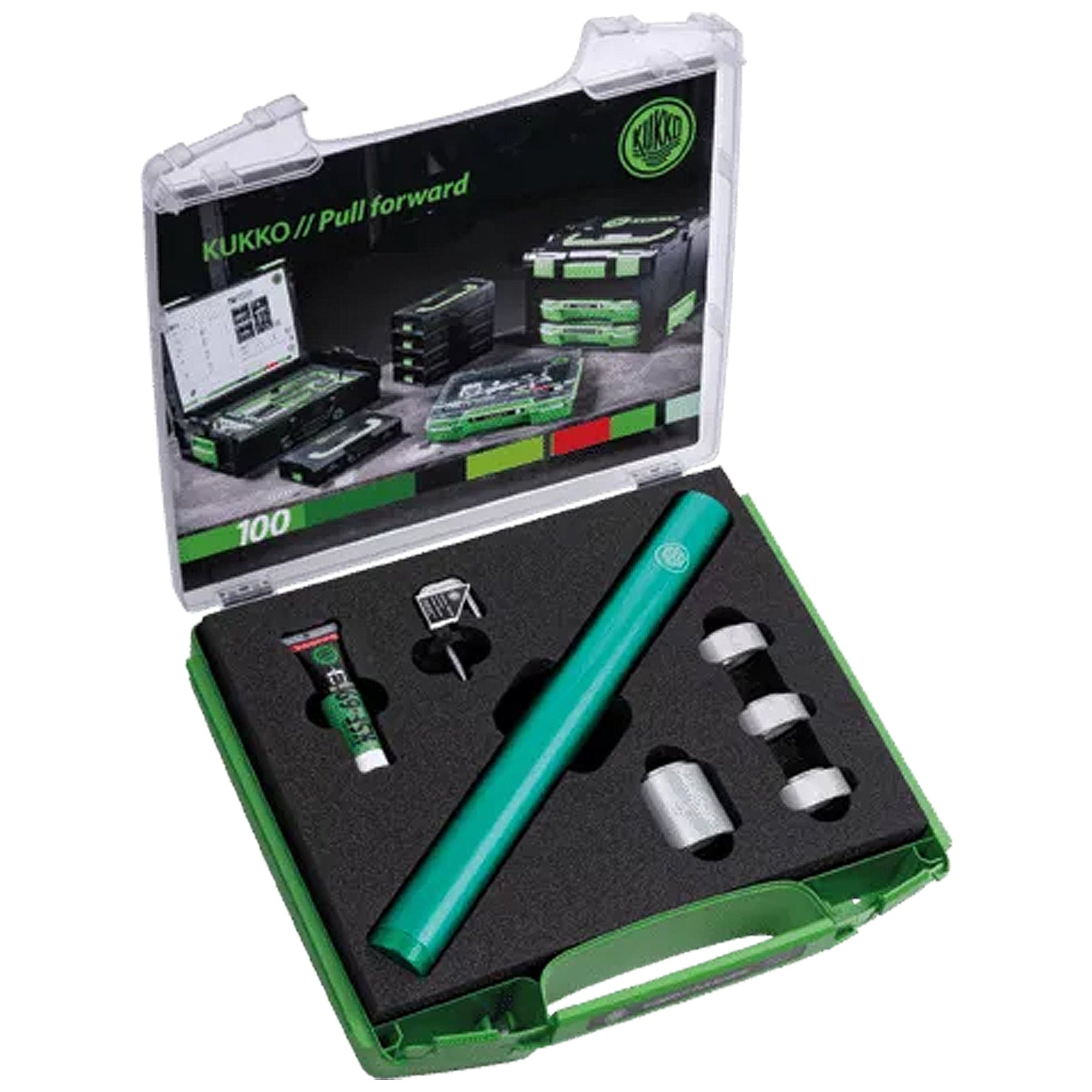

  • Secure storage in special foam.
  • MPN #: 71-M
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Inner diameter of ball bearing

25 - 35 mm 1 - 1 3/8 inch

Number of impact sleeves

1 St. / pcs. 1 St. / pcs.

Diameter of impact sleeves

32 mm 1 1/4 inch

Length of impact sleeve

360 mm 14 3/16 inch

Number of rings

4 St. / pcs. 4 St. / pcs.

Weight

1.935 kg



Product Data Sheet



Advantage

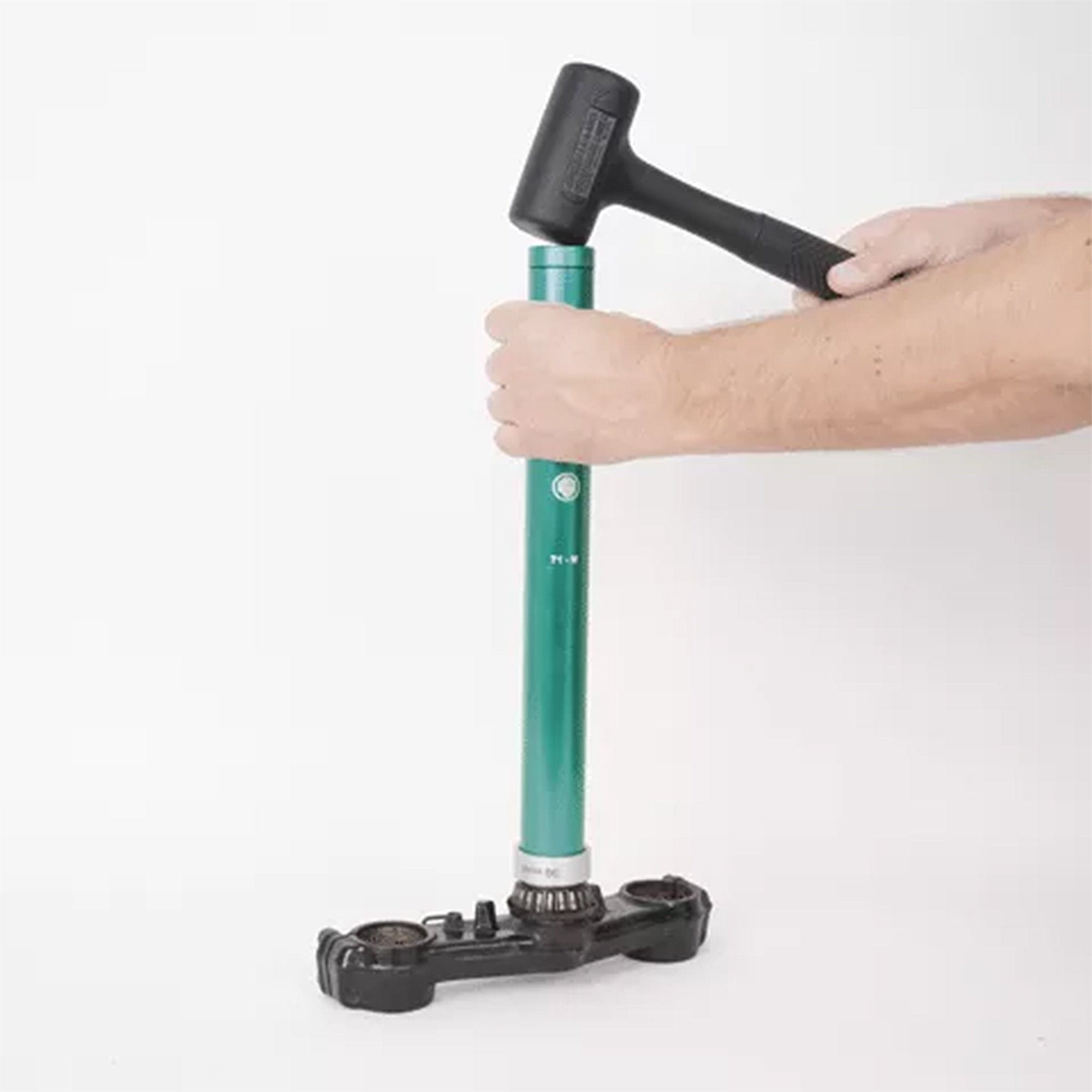

  • The special shape of the impact ring allows for the power to be transmitted only to the internal ring during pressing or hammering of the tapered roller bearing.

  • This means that the bearing cage will not be destroyed.

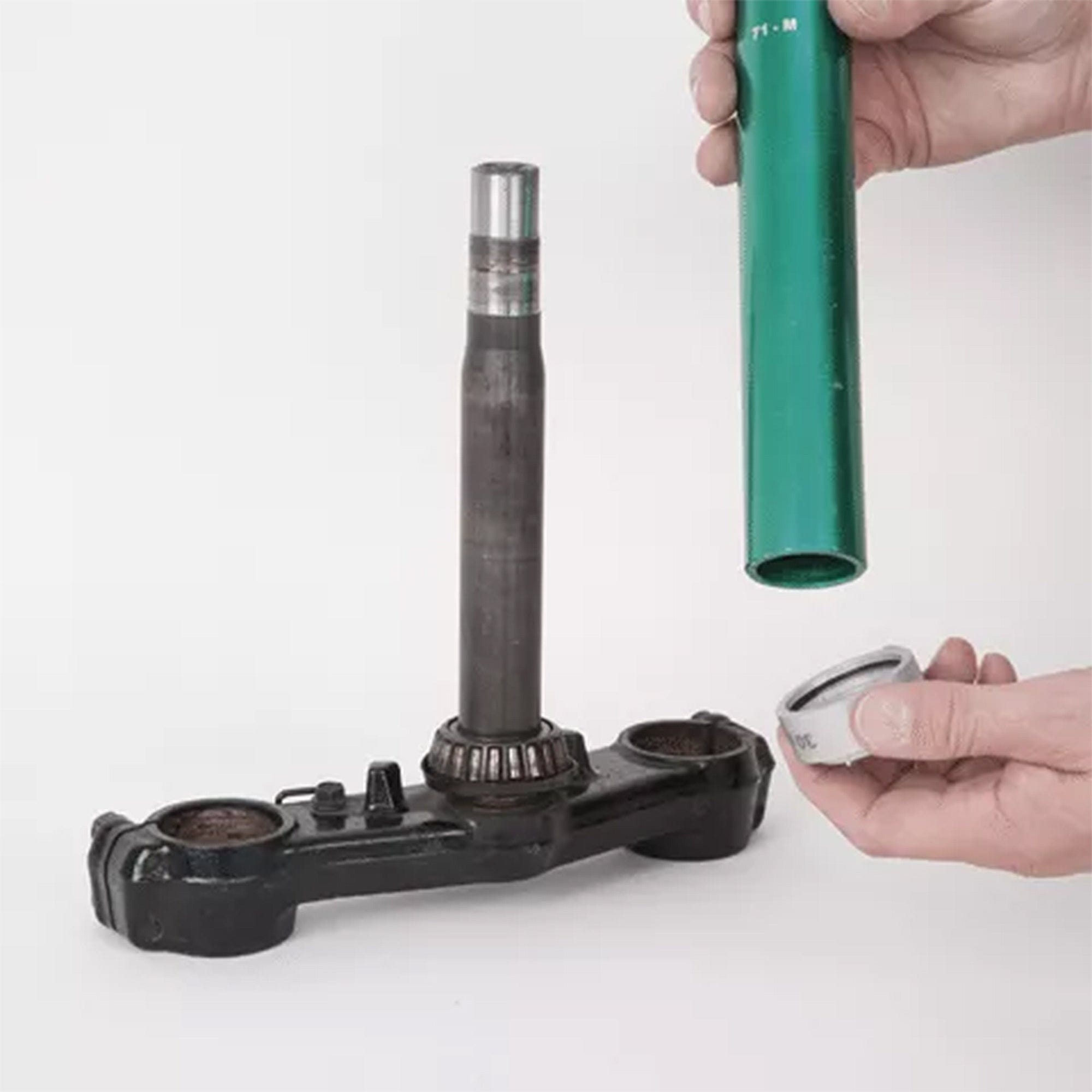

  • The combination of impact ring and impact sleeve required for the installation of the ball bearing can be found in the table inside the case cover.

  • The axes, bearing casings and gaskets of the bearing will not be damaged.

  • The impact rings have a rubber ring and ensure locking at the strike pipes.

  • With the combination of the impact ring and the impact pipe, the installation forces are never directed through the rolling elements of the bearing.

  • Complete easy-to-manage package.

  • Kit in the tried-and-tested KUKKO-i-Boxx-System.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.



Functionality

  • Ball bearing fitting

  • Removing

  • Set
