Description:
- For quick, precise and secure installation of bearings and seals.
- 33 impact rings made of extremely shockproof plastic.
- 3 strike pipes made of anodized aluminum.
- 1 Non-rebounding hammer.
- Instructions and conversion table in the cover.
- Secure storage in special foam.
- Personal KUKKO-Chip-Code.
- MPN #: 71-L
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|
Technical attribute |
Metric |
Imperial |
|
Inner diameter of ball bearing |
10 - 50 mm | 3/8 - 2 inch |
|
Outer diameter of ball bearing |
26 - 110 mm | 1 1/32 - 4 3/8 inch |
|
Number of impact sleeves |
3 St. / pcs. | 3 St. / pcs. |
|
Diameter of impact sleeves |
19, 32, 50 mm | 3/4; 1 1/4; 2 inch |
|
Length of impact sleeve |
220 mm | 8 5/8 inch |
|
Number of rings |
33 St. / pcs. | 33 St. / pcs. |
|
Weight |
6.34 kg |
Advantage
-

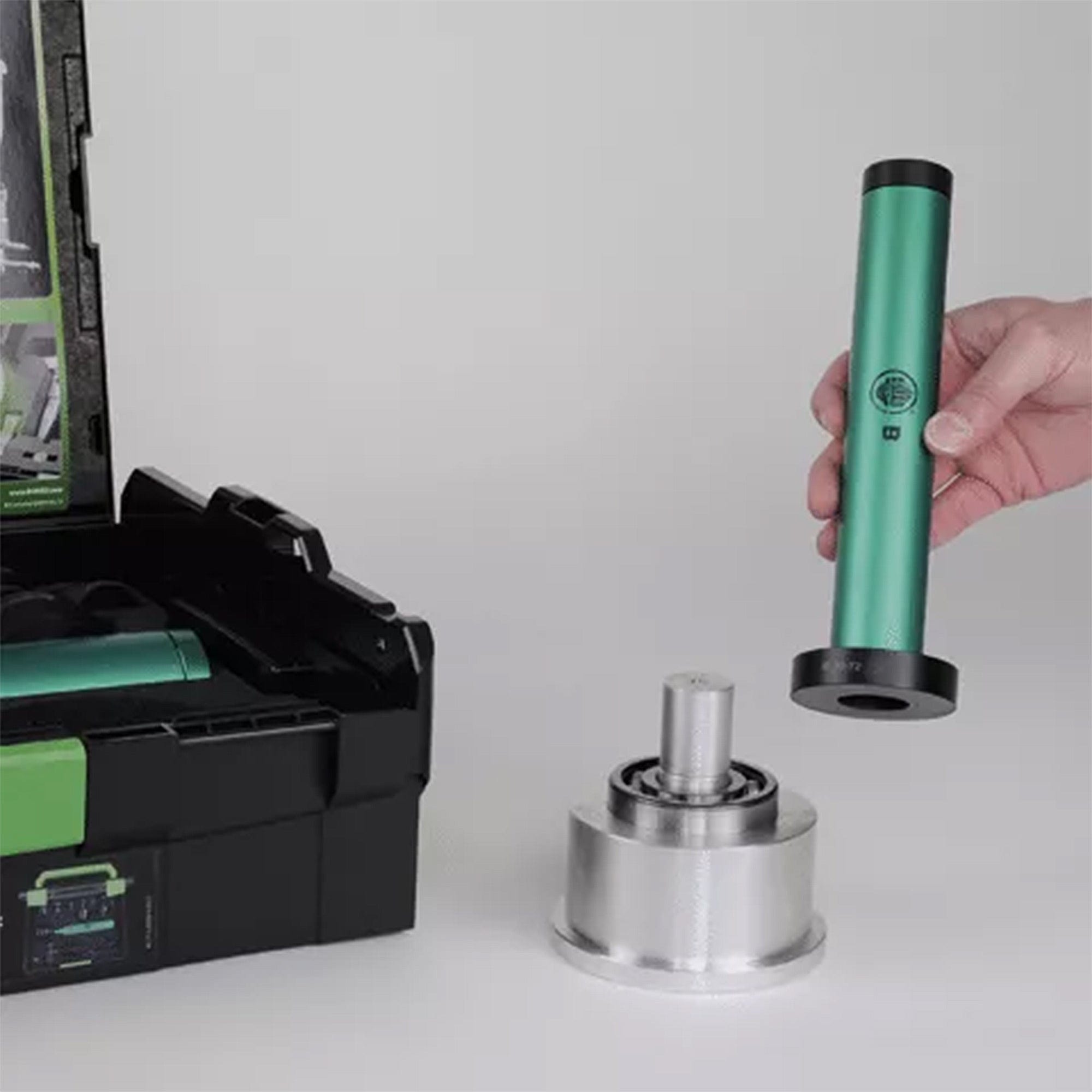

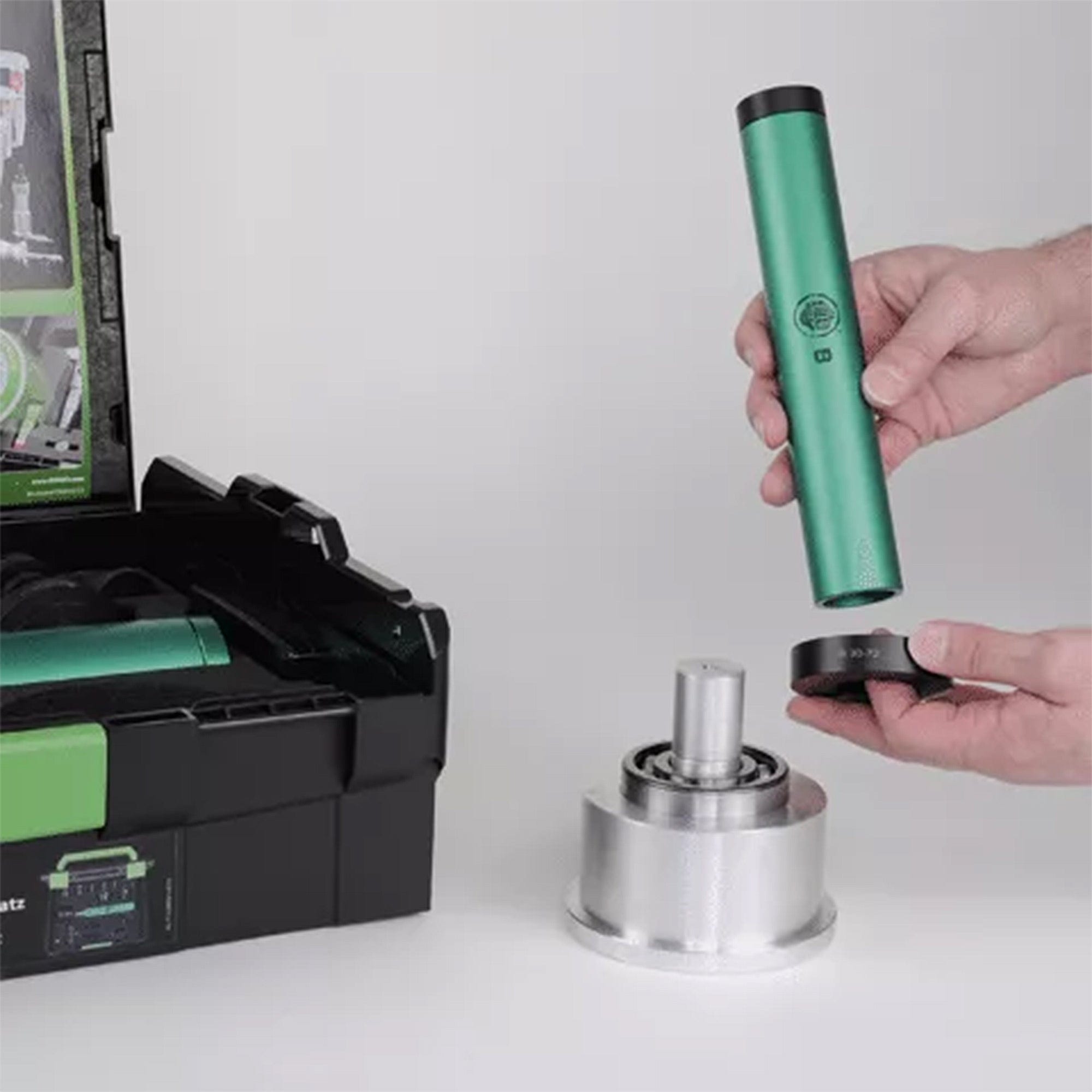

The combination of impact ring and impact sleeve required for the installation of the ball bearing can be found in the table inside the case cover.
-
The axes, bearing casings and gaskets of the bearing will not be damaged.
-
The impact rings have a rubber ring and ensure locking at the strike pipe.
-

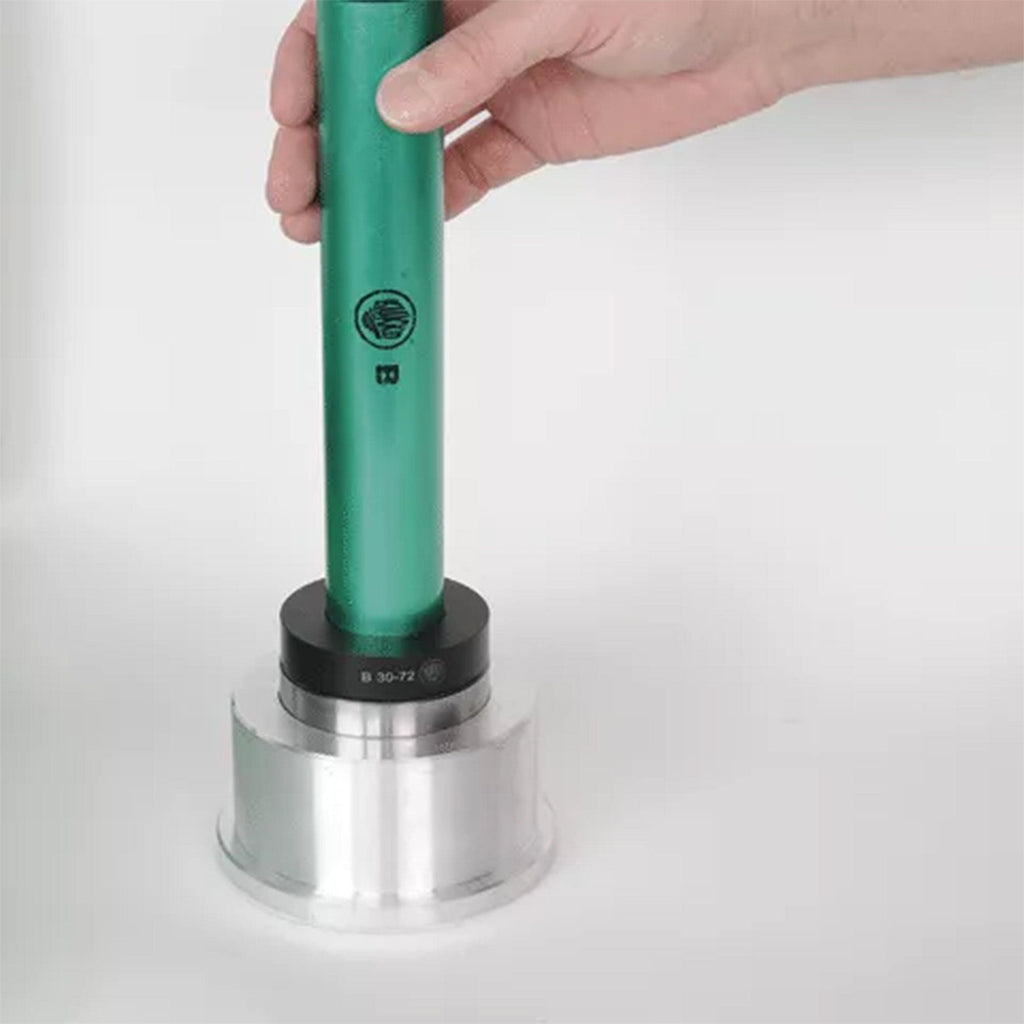

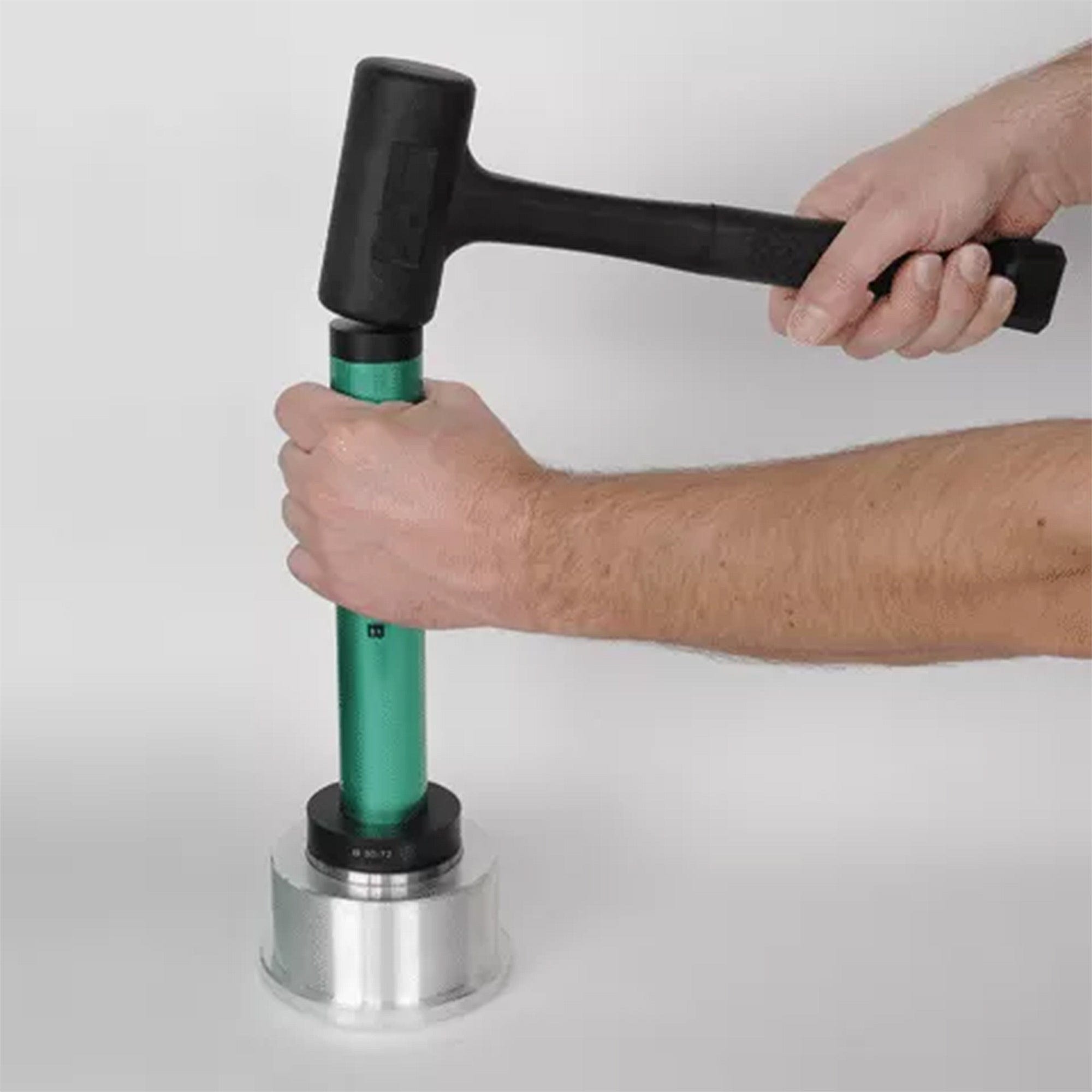

With the combination of the impact ring and the impact pipe, the installation forces are never directed through the rolling elements of the bearing.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
-
Complete easy-to-manage package.
-
KUKKO-L-Boxx-System compatible with systems by all common manufacturers.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
Functionality
-

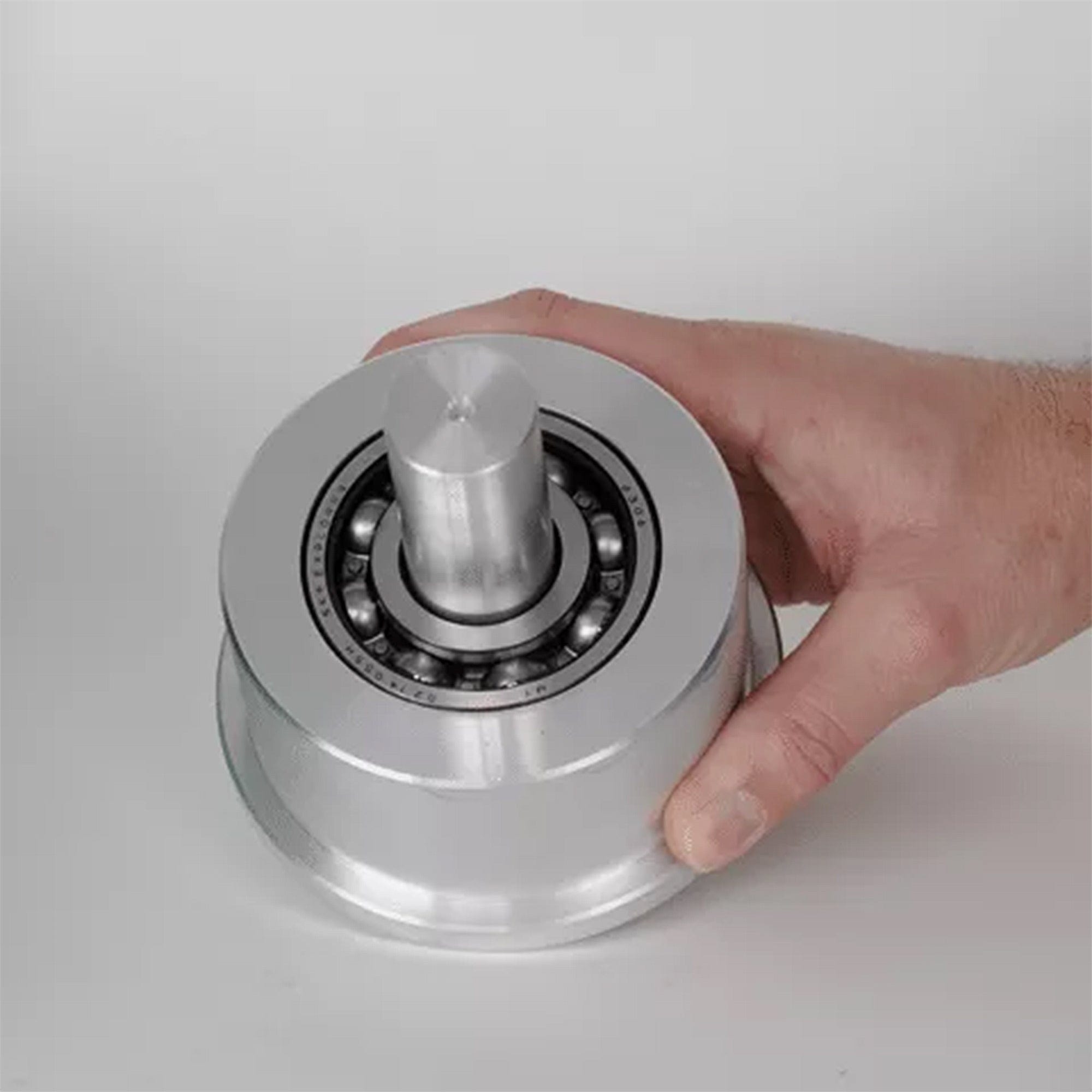

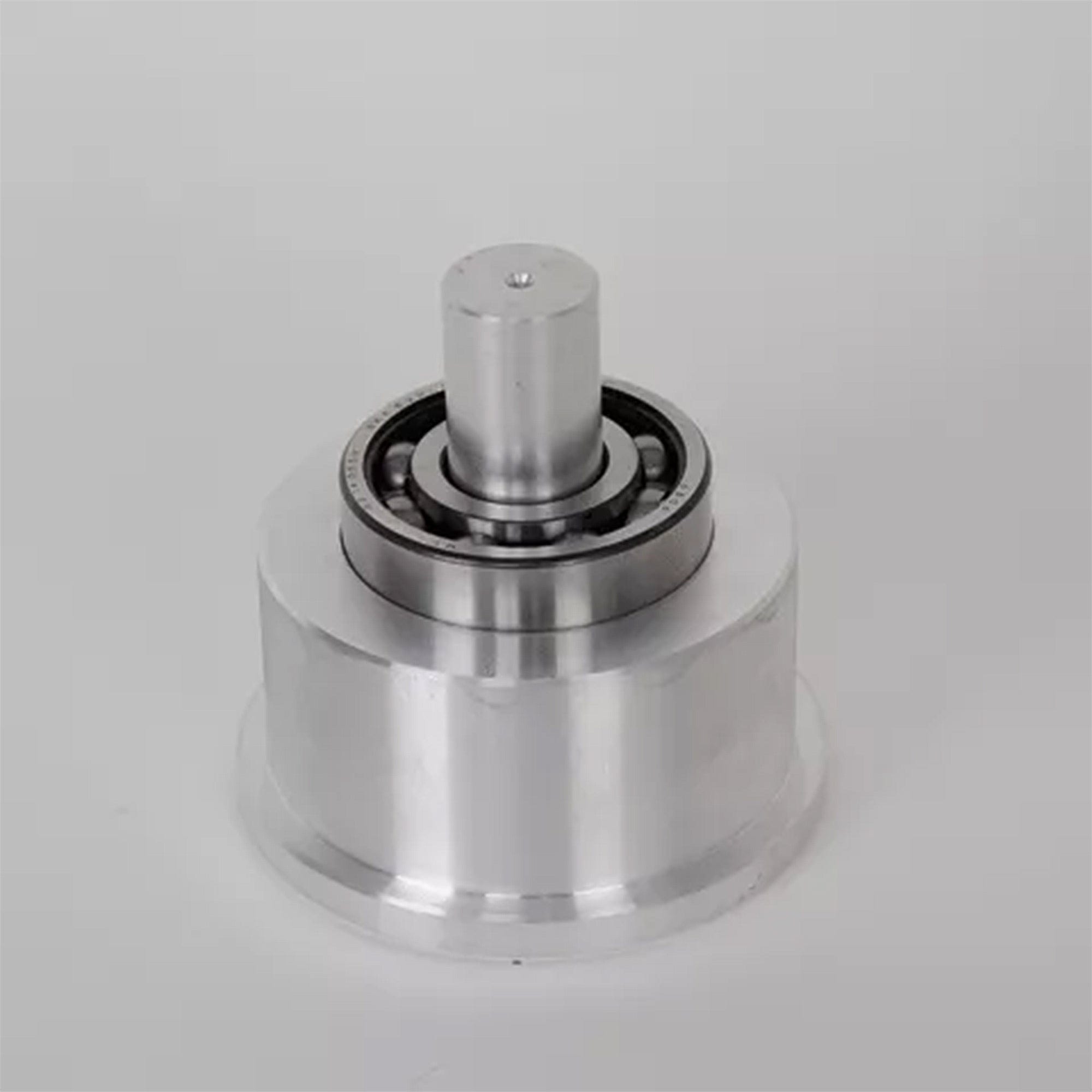

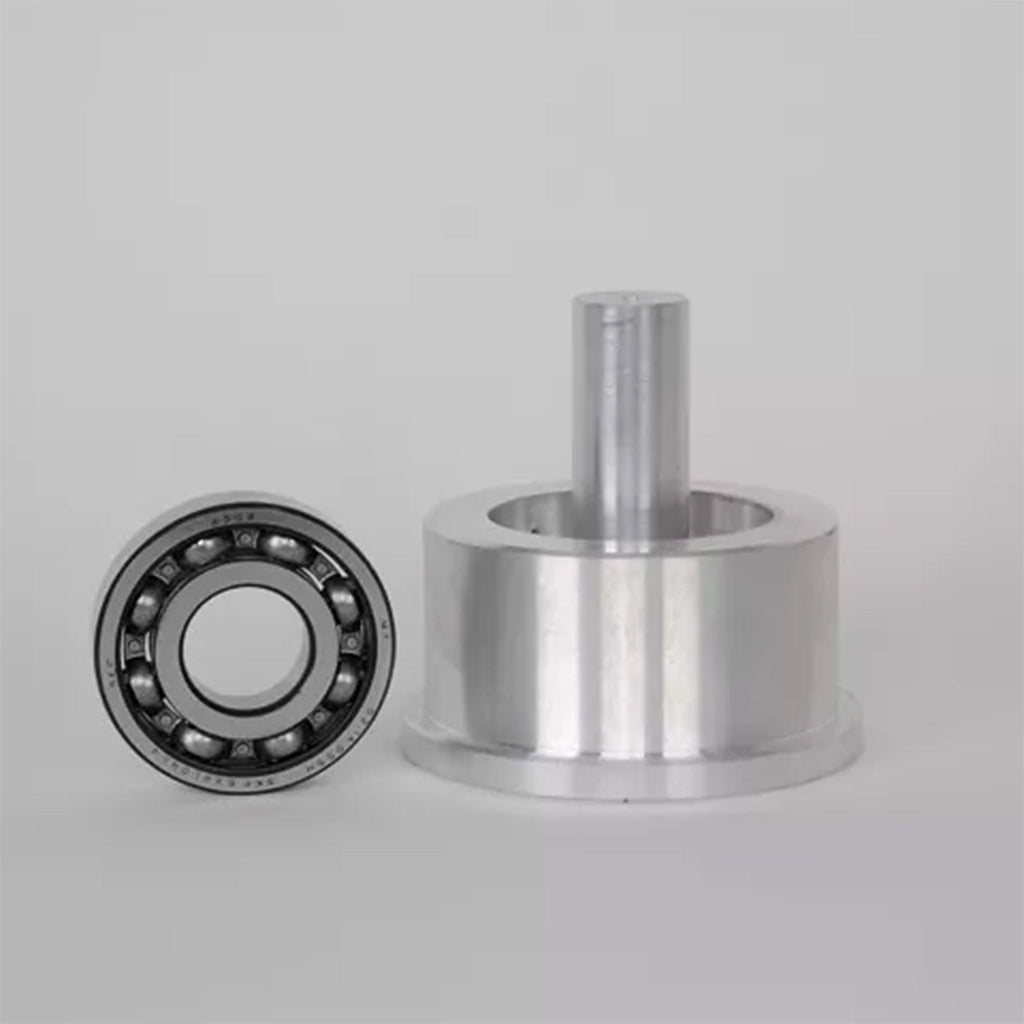

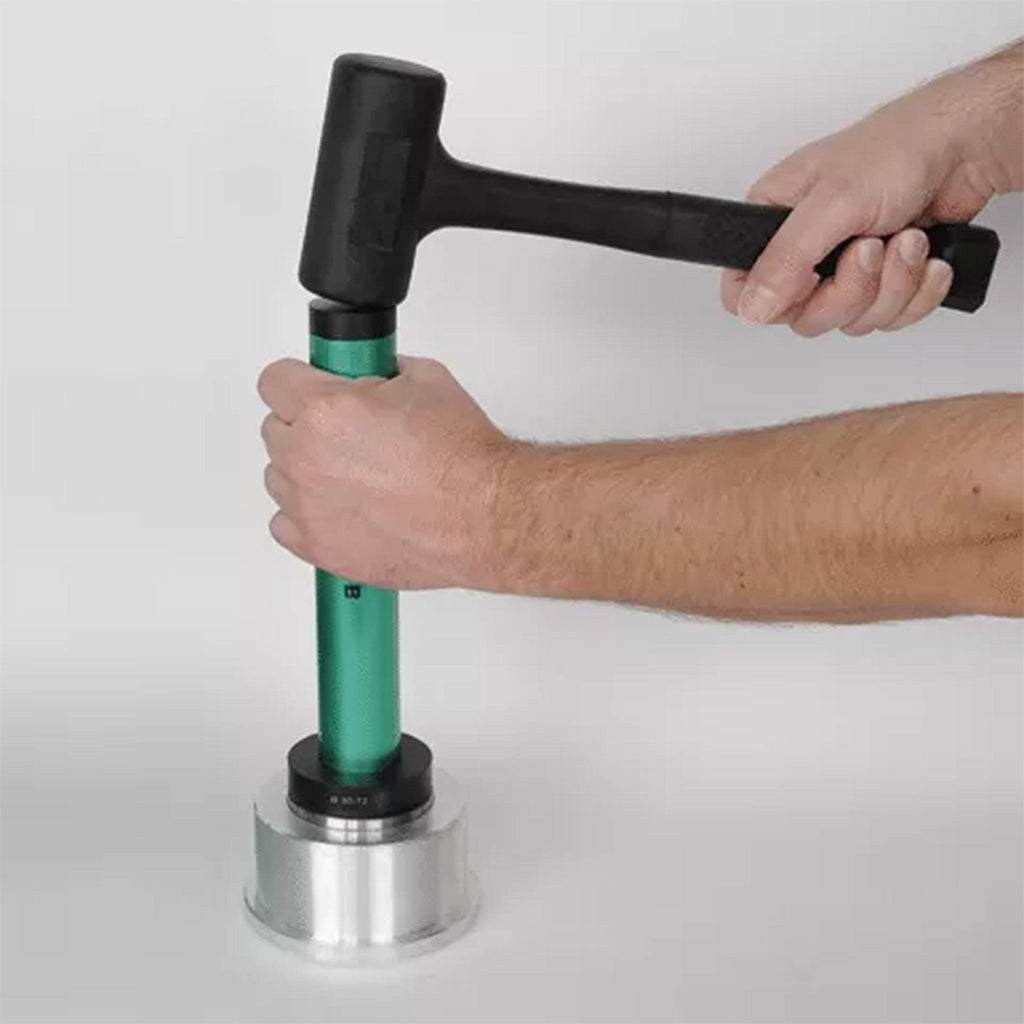

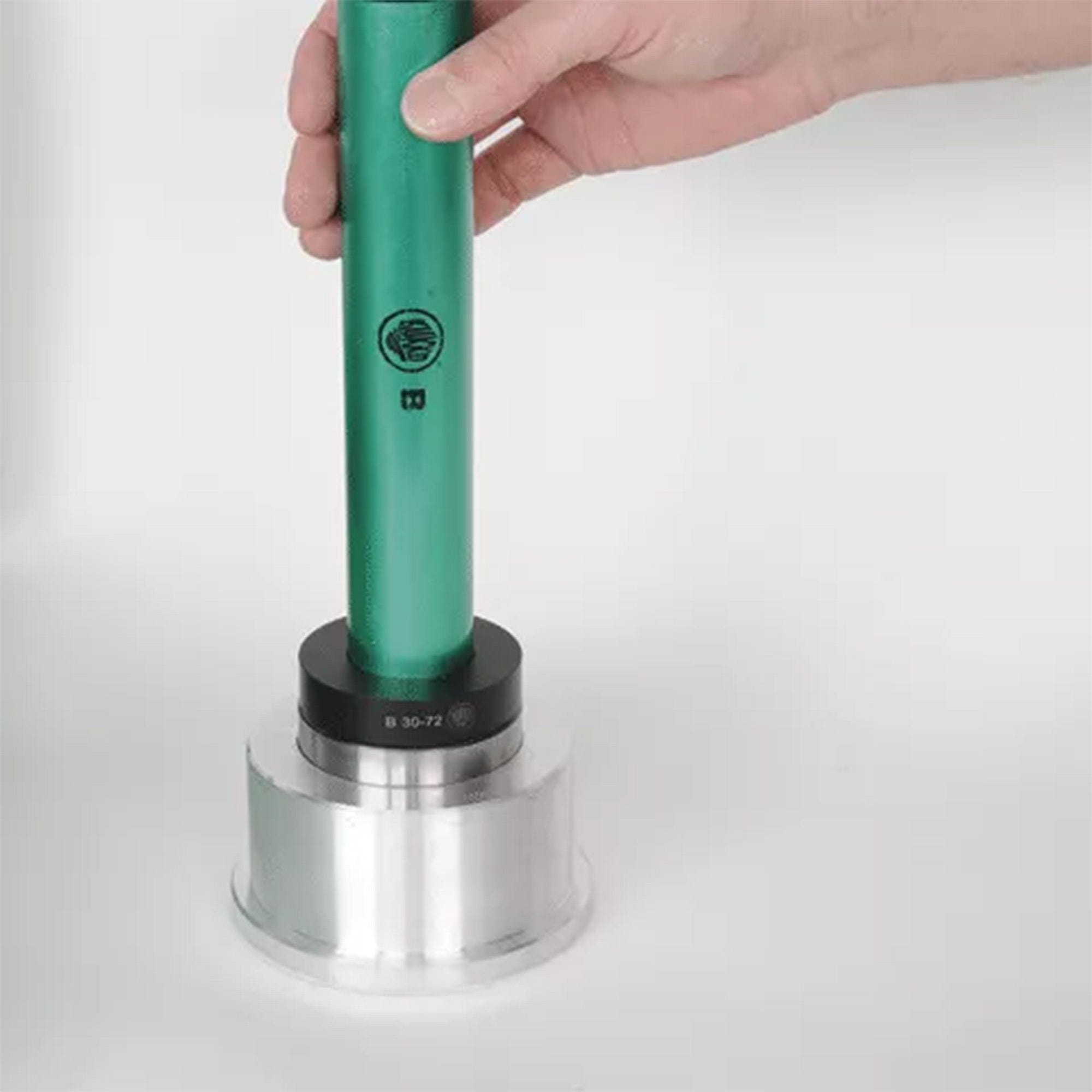

Ball bearing fitting
-
Removing
-

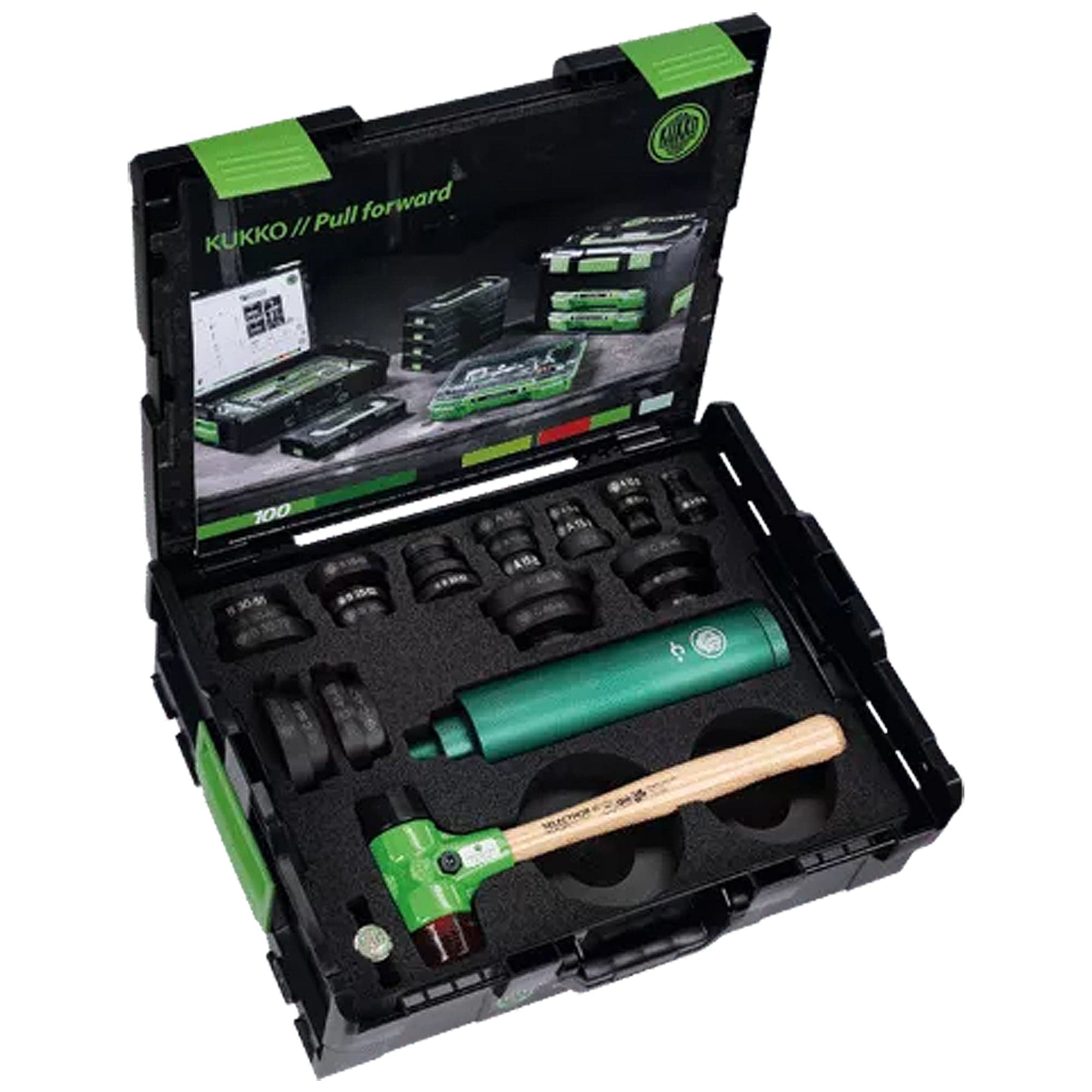

Set
