Kukko ToolsSKU: WS03-71
filler
Price:
$2,784

Description

Description:

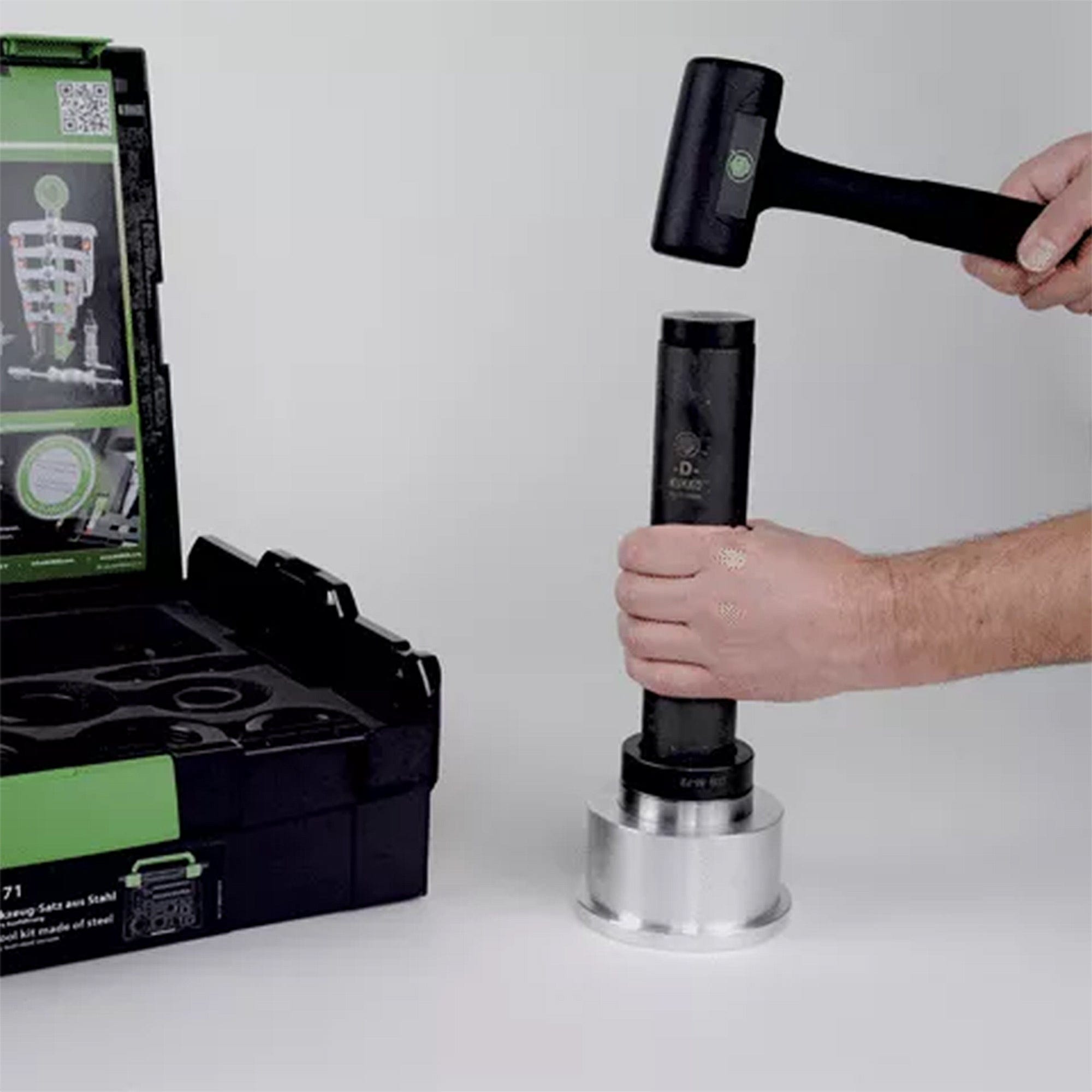

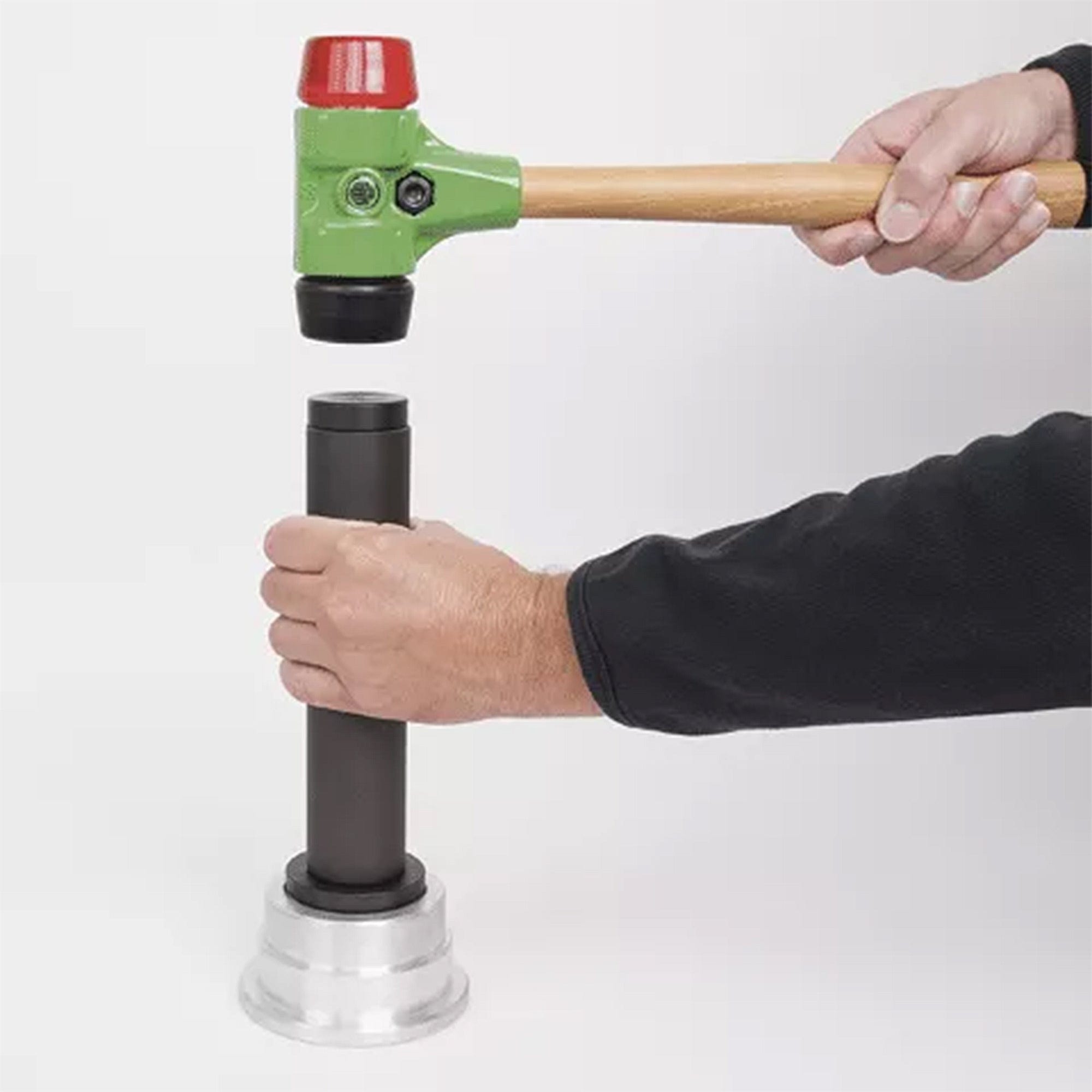

  • For bearing installation with a hydraulic press or hammer.
  • For mobile use, we recommend Series 71-L.
  • 33 impact rings made of extra strong steel.
  • 5 strike pipes made of extra strong steel.
  • 1 SELCTHOR, with 2 different impact inserts (PU/CA).
  • Instructions and conversion table in the cover.

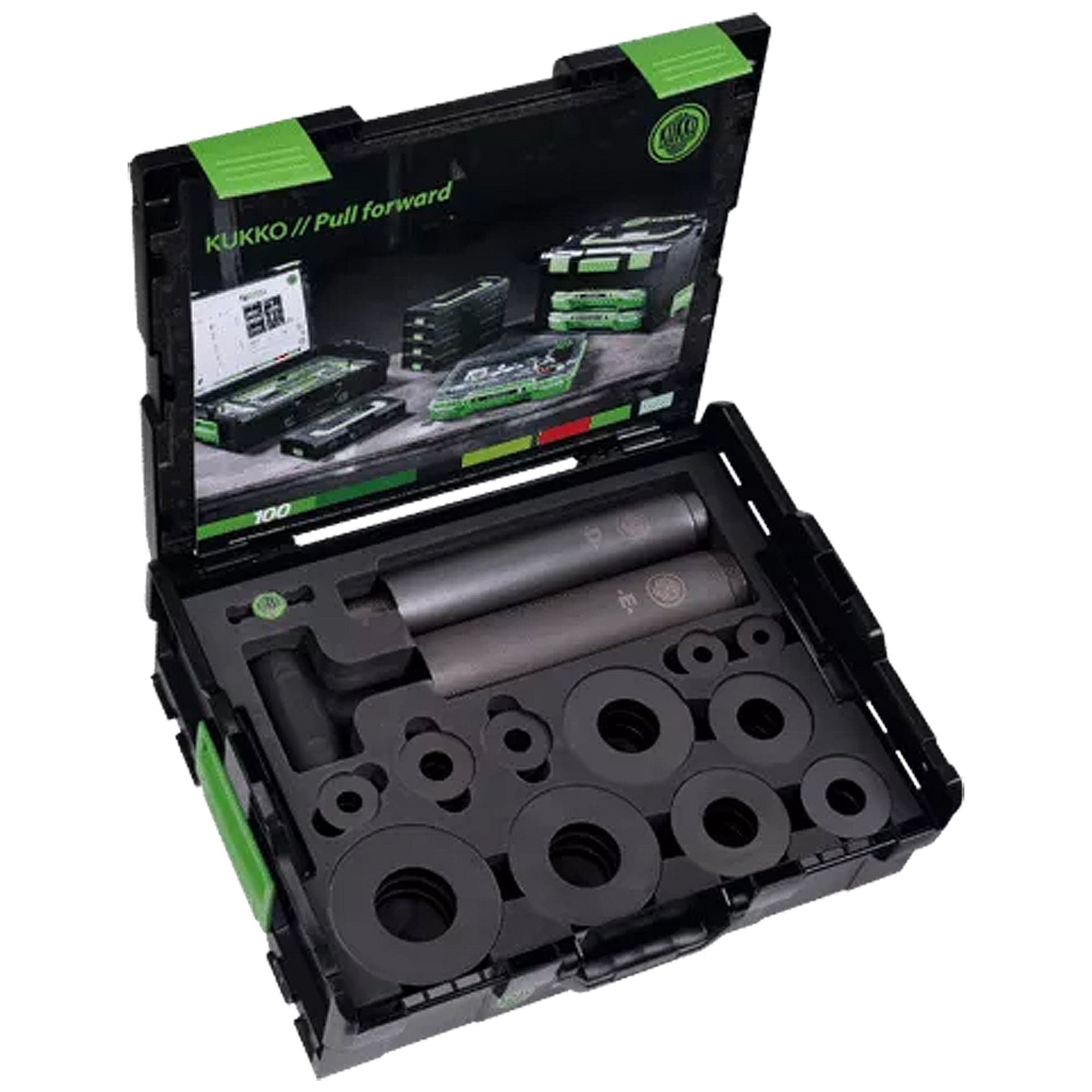

  • Secure storage in special foam.
  • Personal KUKKO-Chip-Code.
  • MPN #: 71
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Inner diameter of ball bearing

 10 - 50 mm 3/8 - 2 inch

Outer diameter of ball bearing

 26 - 110 mm 1 1/32 - 4 3/8 inch

Number of impact sleeves

 5 St. / pcs. 5 St. / pcs.

Diameter of impact sleeves

 15; 20; 30; 40; 55 mm 19/32;  25/32; 1 3/16; 1 9/16; 2 5/32 inch

Length of impact sleeve

 225 mm 8 7/8 inch

Number of rings

 33 St. / pcs. 33 St. / pcs.

Weight

 8.25 kg



Product Data Sheet



Advantage

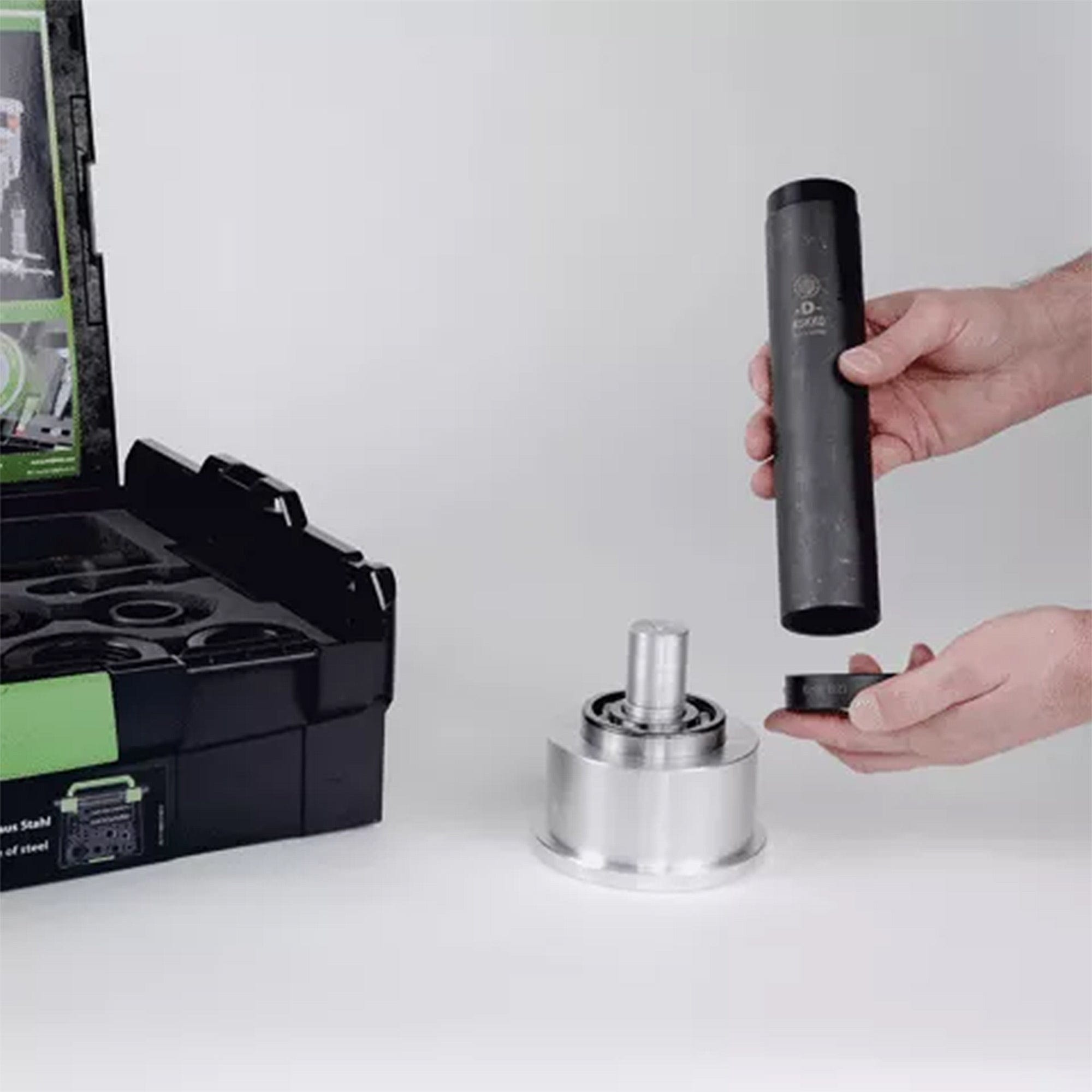

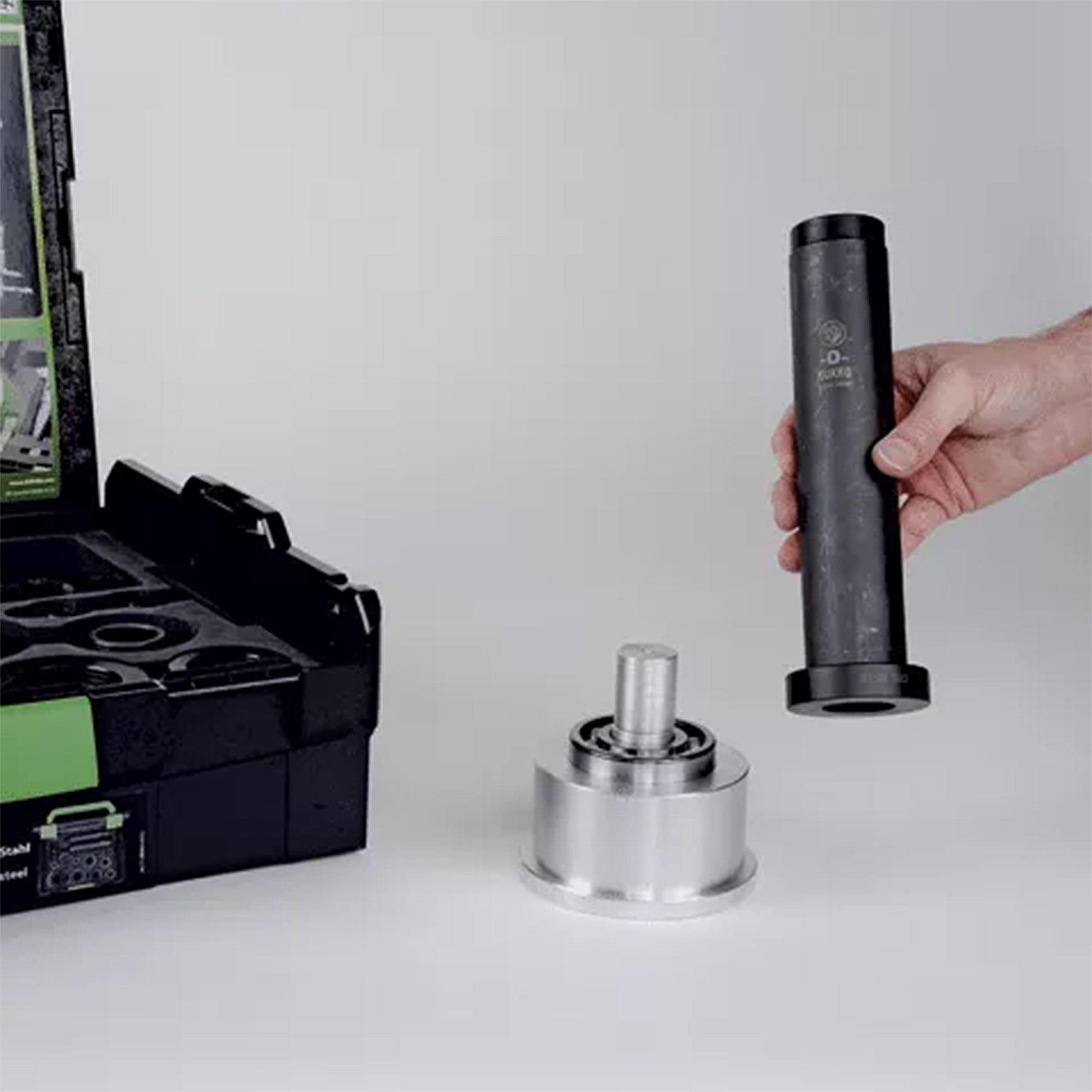

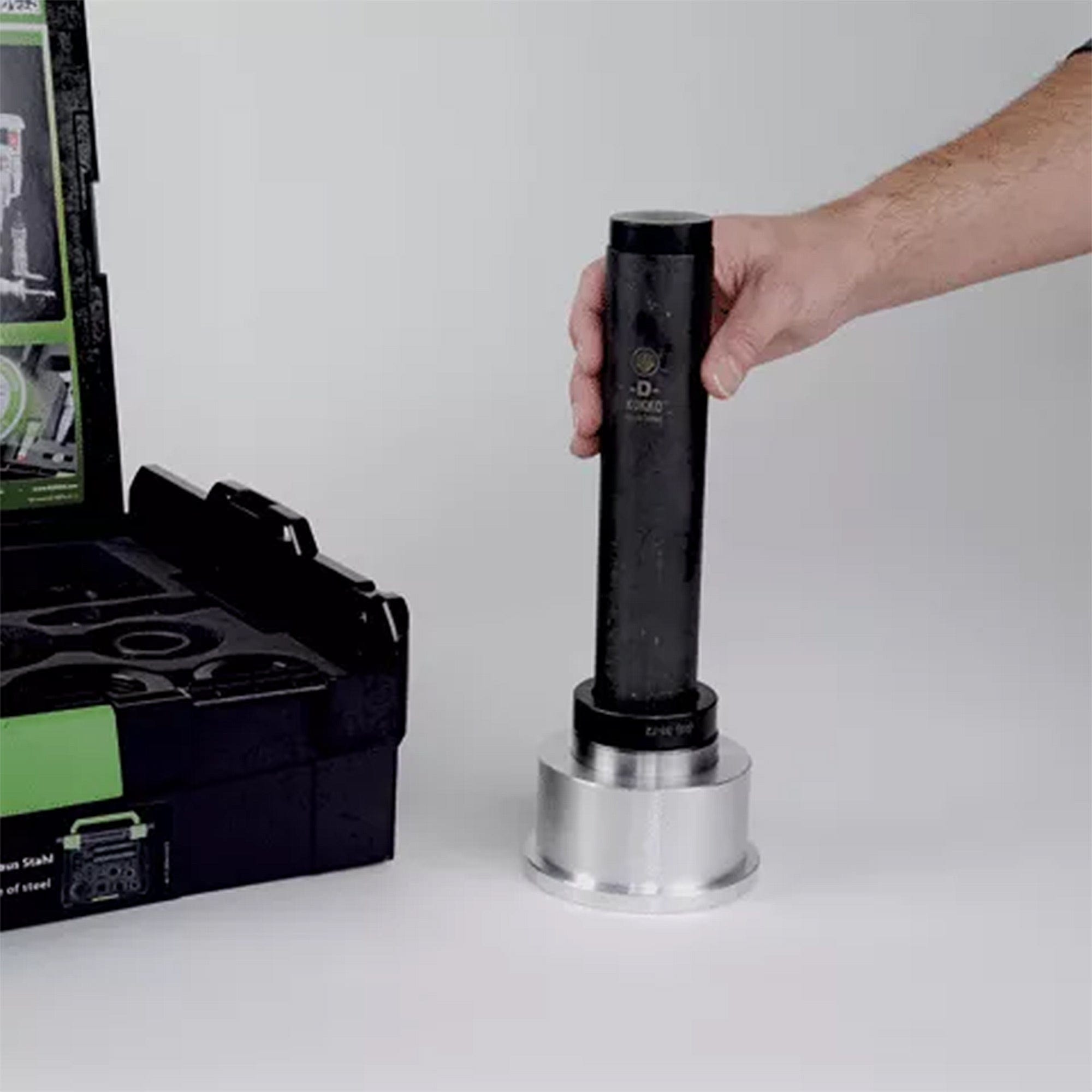

  • The combination of impact ring and impact sleeve required for the installation of the ball bearing can be found in the table inside the case cover.

  • The axes, bearing casings and gaskets of the bearing will not be damaged.

  • With the combination of the impact ring and the impact pipe, the installation forces are never directed through the rolling elements of the bearing.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

  • Complete easy-to-manage package.

  • KUKKO-L-Boxx-System compatible with systems by all common manufacturers.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.


Functionality

  • Ball bearing fitting

  • Removing

  • Set
