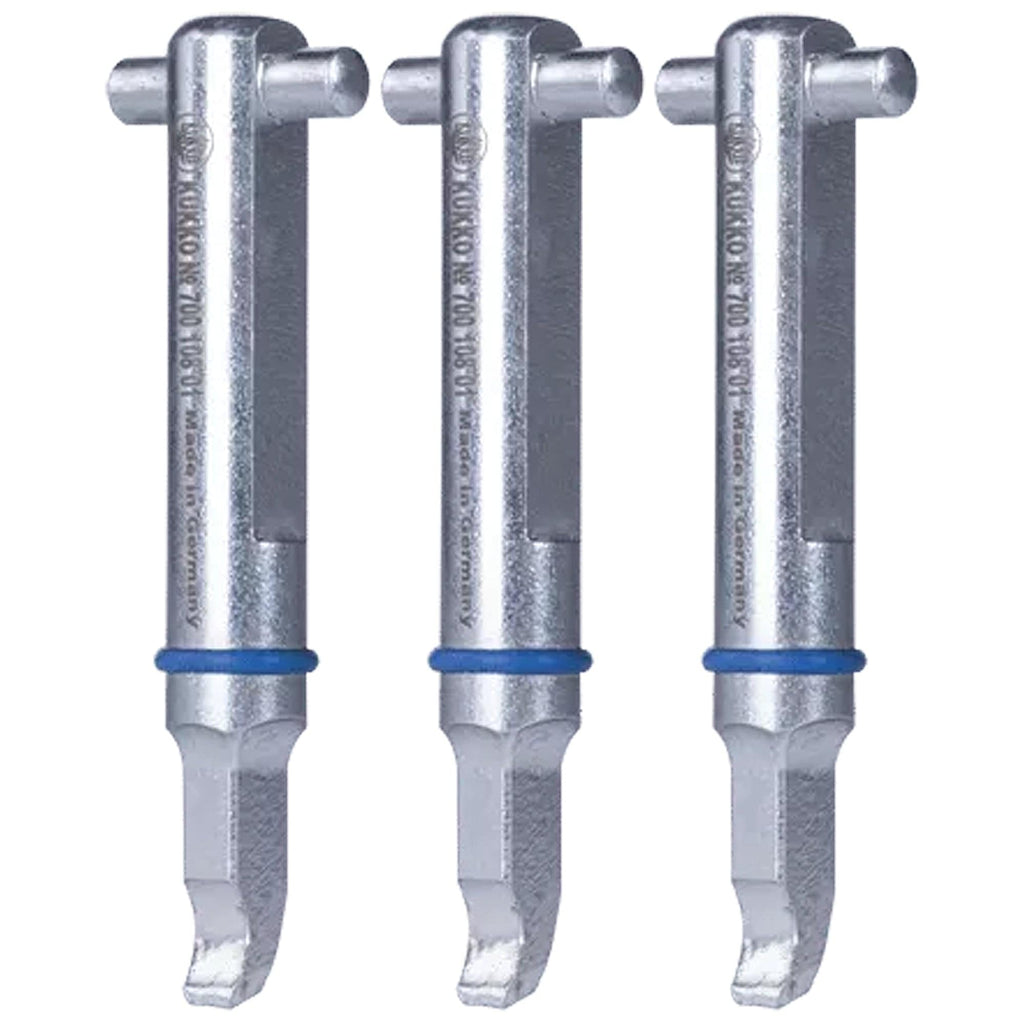

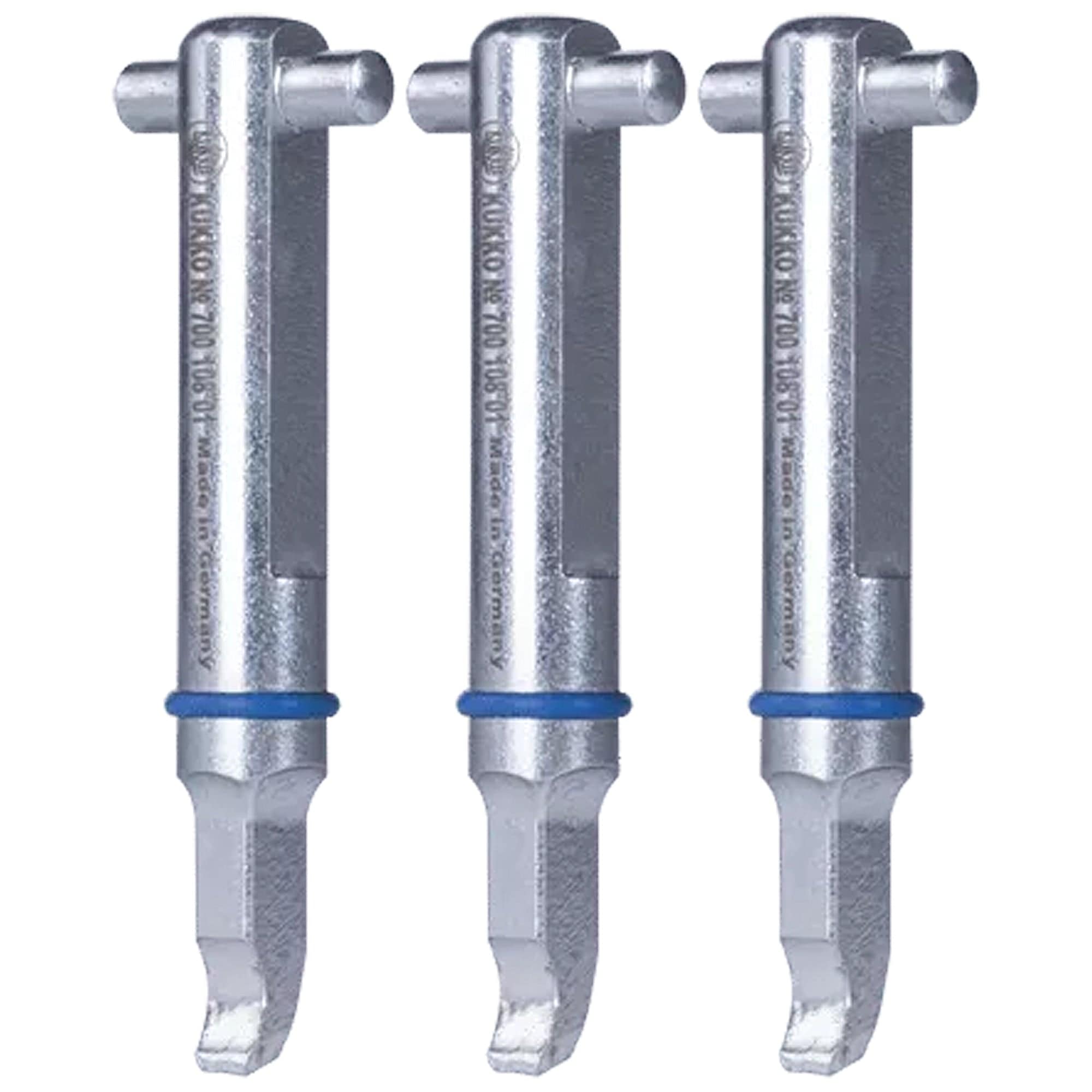

Kukko 70-012-S 3 Wide Replacement Jaws With Rings (Blue) 2 3/4 inch (70 mm)

|
Kukko ToolsSKU: WS03-70-012-S
filler

Price:
Sale price$432.80

Description

Description:

  • To remove grooved ball bearings without causing damage and without having to dismantle the shaft.
  • Pulling jaws specifically developed for precise mounting in bearing tracks for optimal support and better extension force.
  • Pulling jaws made of two parts. Dowel pin is hammered into the upper end of the jaw.
  • The proven KUKKO claw in a newly developed, modern jaw design.
  • The two pulling jaw versions are color-coded for easier distinction.
  • The pulling jaws are tempered for a long service life.
  • MPN #: 70-012-S
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Ball bearing ISO

6005-6006; 6203-6205; 6300; 6302-6304 6005-6006; 6203-6205; 6300; 6302-6304

Number of jaws

3
3

K-70 jaw length

70 mm 2 3/4 inch

Number of rings

6 St. / pcs. 6 St. / pcs.

Weight

0.175 kg



Product Data Sheet



Advantage

  • Simple mounting of the pulling jaws with 90° rotation in the cross-beam.

  • Only two pulling jaw types required.

  • Machined, lateral jaw surfaces ensure optimal jaw alignment with the cross-beam.

  • Secure, form-fitting connection of the pulling jaws with the cross-beam.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Ball bearing removal

  • Removing
