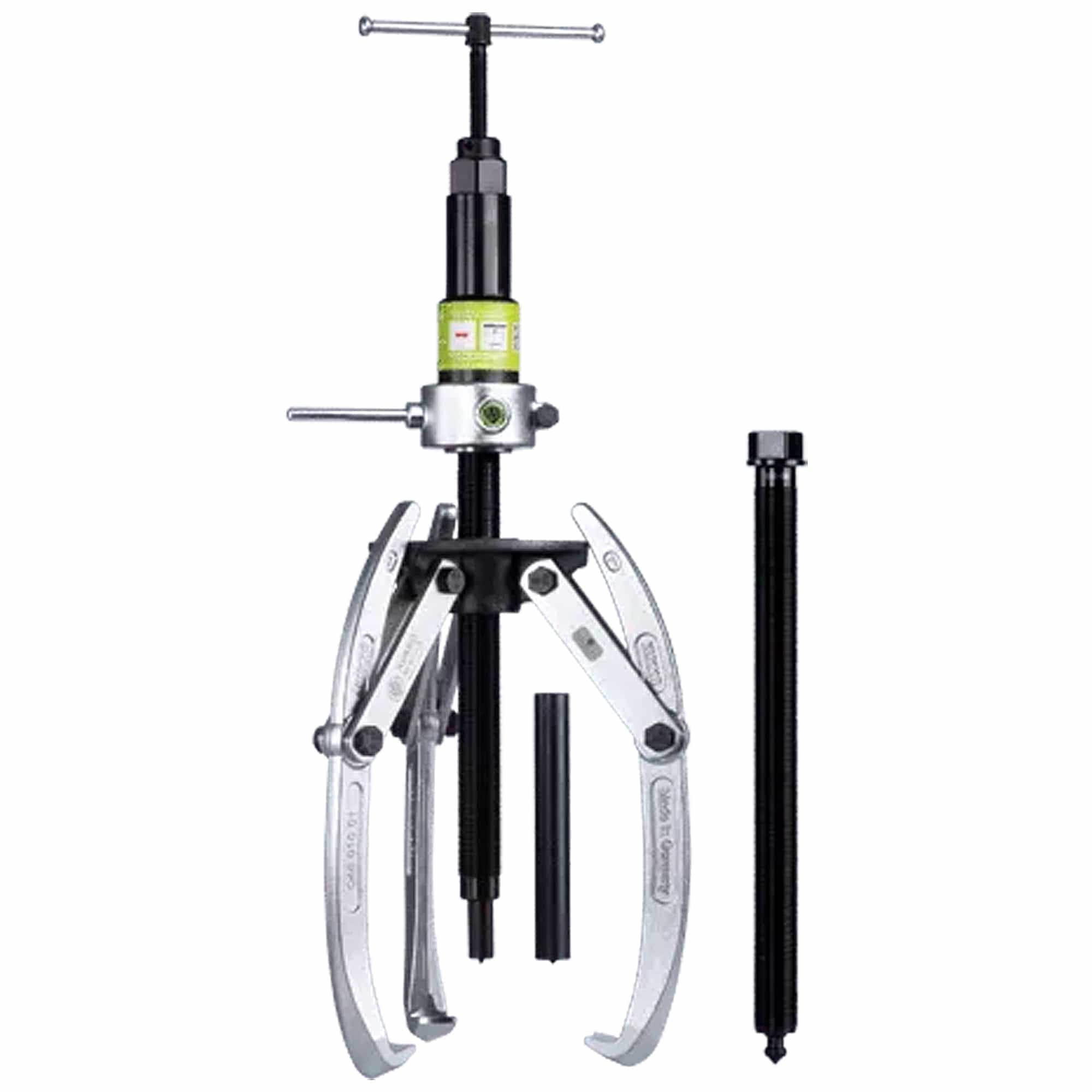

Kukko 47-2-B Universal 3-jaw Puller with Long Hydraulic Spindle and Swiveling Jaws (Including Mechanical Pressure Screw) 1 3/8 - 19 3/4 Inch (35 - 500 mm)

|
Kukko ToolsSKU: WS03-47-2-B
filler

Price:
Sale price$1,905.10

Description

Description:

  • For pulling tight-fitting bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • Two-arm design for space-saving operation.
  • 2-jaw and 3-jaw combination cross beam.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller series 47 for optimal distribution of force.
  • MPN #:  47-2-B
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 35 - 500 mm 1 3/8 - 19 3/4 inch
Depth 450 mm 17 3/4 inch
Hexagon drive (male) 36 mm
Maximum load 15 t 16.5 US t
Weight 20.14 kg
Space below 22 mm 7/8 inch
Space next to it 50 mm 2 inch
Number of jaws 2/3 2/3
Maximum torque 45 Nm 33 ft lb



Product Data Sheet



Advantage

  • Combi-pullers can be used as a 3-jaw and 2-jaw puller.
  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
  • Spindle head band prevents the wrench from slipping off.
  • Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.
  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system

KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with swiveling jaws
