Description:

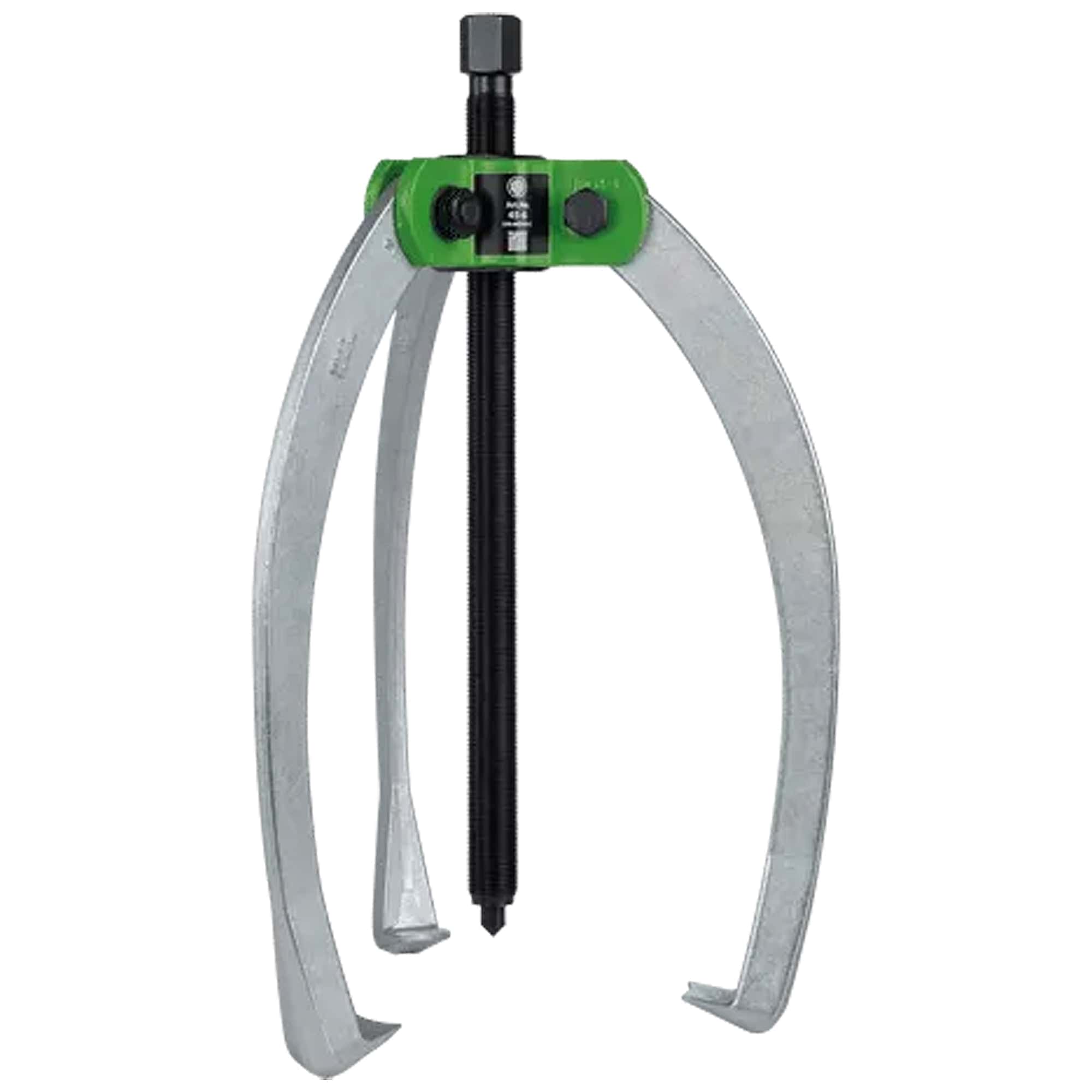

- For removing bearings, gears, discs, etc.
- Standard pulling hook.
- Automatic self-centering pulling hooks.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- MPN #: 45-6
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 23 - 375 mm | 7/8 - 14 3/4 inch |
Depth | 275 mm | 11 inch |
Hexagon drive (male) | 24 mm | |
Maximum load | 9,5 t | 10 US t |
Maximum torque | 200 Nm | 147.5 ft lb |
Weight | 6.085 kg | |
Space below | 16 mm | 5/8 inch |
Space next to it | 40 mm | 1 5/8 inch |
Number of jaws | 3 | 3 |
Advantage
-
Spindle head band prevents the wrench from slipping off.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Pullers with self-centering jaws
