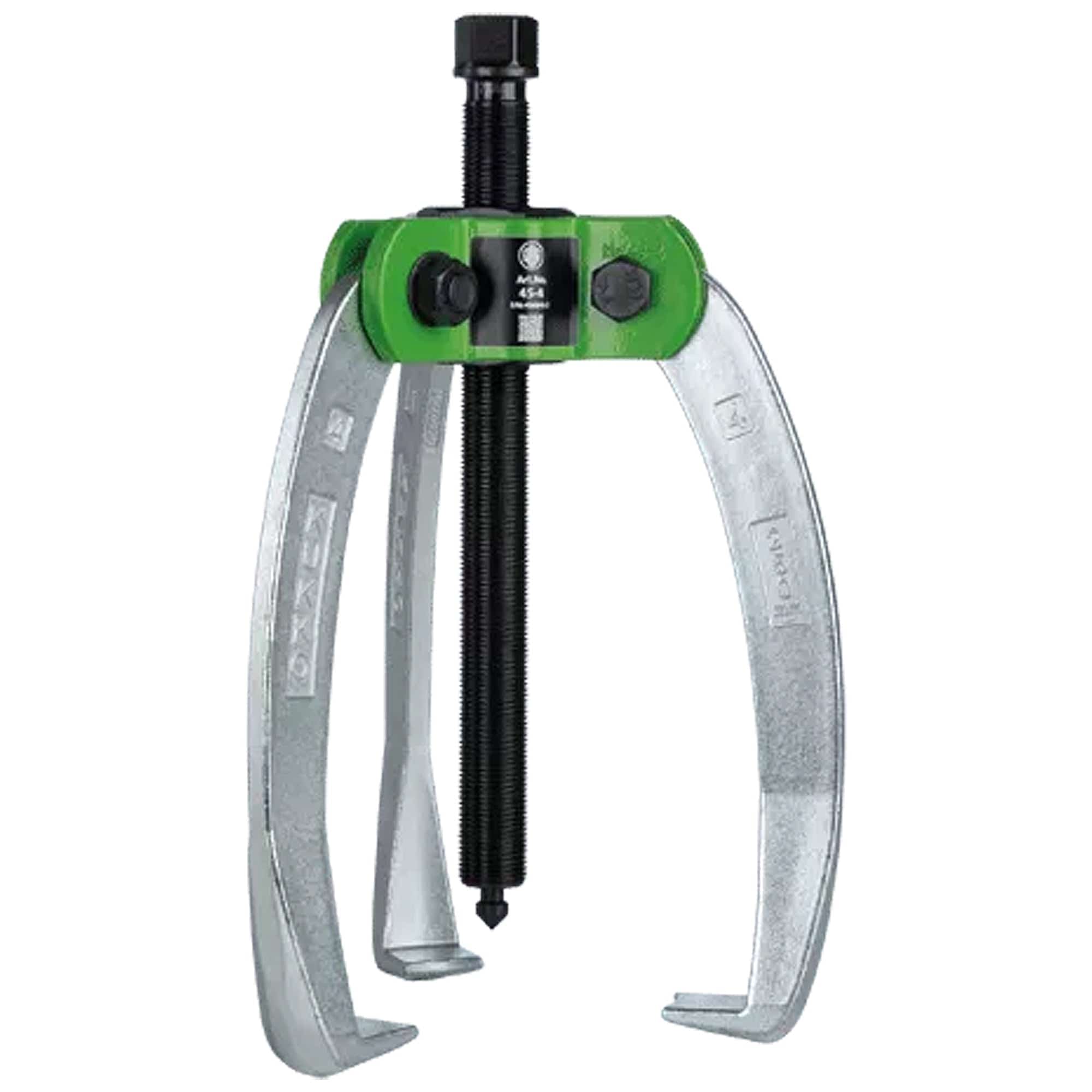

Kukko 45-4 Universal 3-Jaw Puller With Self-Centering Jaws 7/8 - 9 7/8 inch (23 - 250 mm)

|
Kukko ToolsSKU: WS03-45-4
filler

Price:
Sale price$423.60

Description

Description:

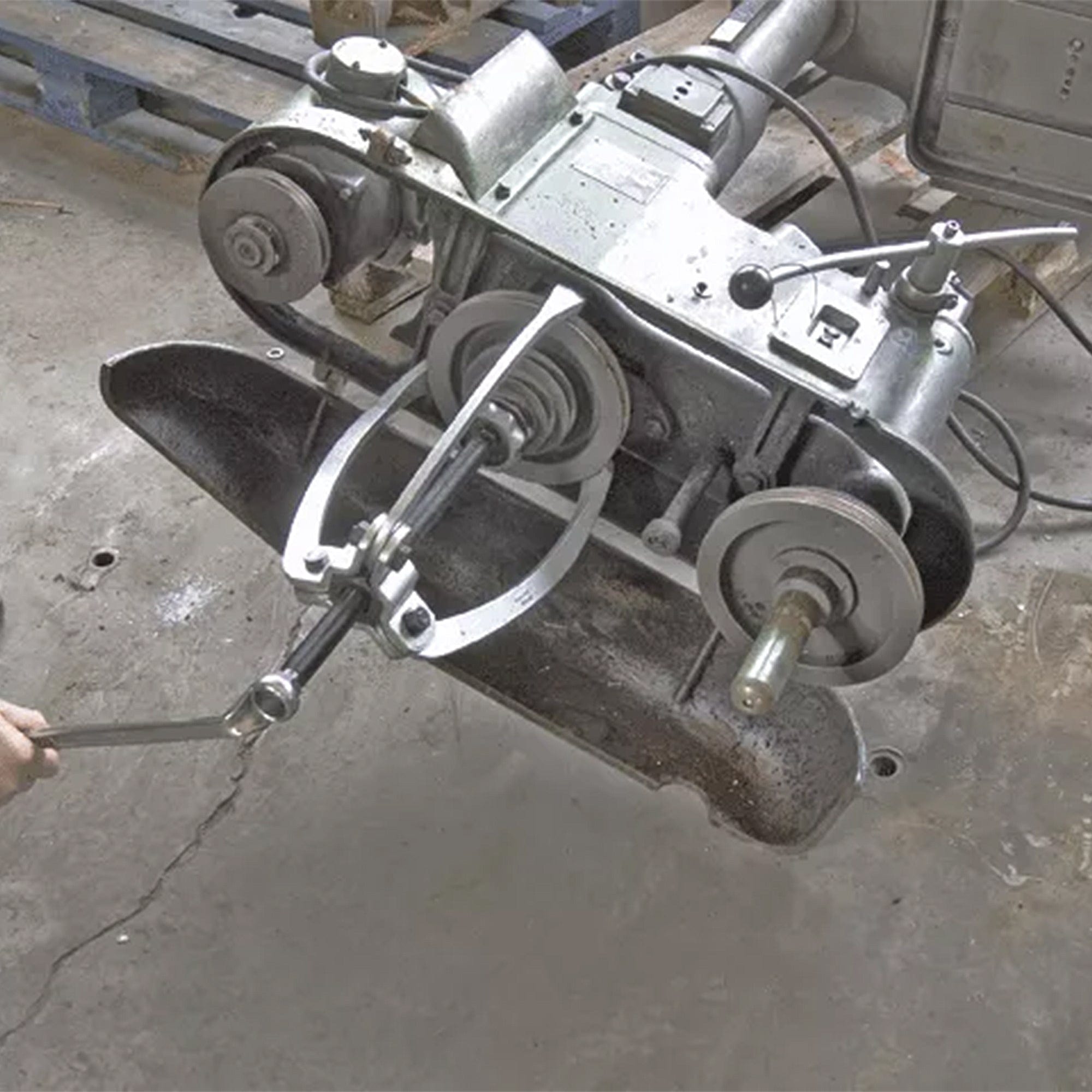

  • For removing bearings, gears, discs, etc.
  • Standard pulling hook.
  • Automatic self-centering pulling hooks.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #: 45-4
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 23 - 250 mm 7/8 - 9 7/8 inch
Depth 200 mm 7 7/8 inch
Hexagon drive (male) 24 mm
Maximum load 9,5 t 10 US t
Maximum torque 200 Nm 147.5 ft lb
Weight 4.18 kg
Space below 12 mm 1/2 inch
Space next to it 17 mm 3/4 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Pullers with self-centering jaws
