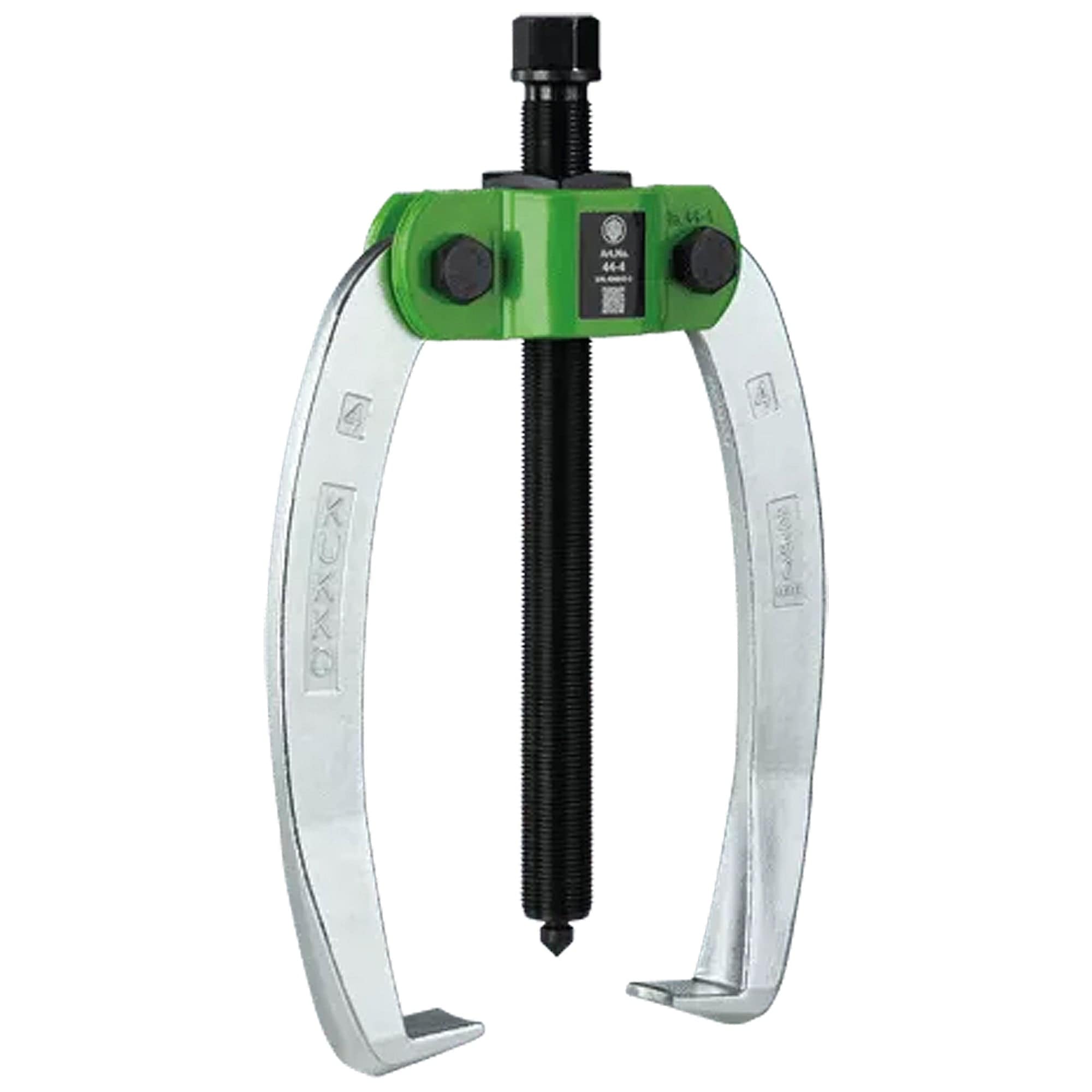

Kukko 44-4 Universal 2-Jaw Puller With Self-Centering Jaws 7/8 - 9 7/8 inch (23 - 250 mm)

|
Kukko ToolsSKU: WS03-44-4
filler

Price:
Sale price$297

Description

Description:

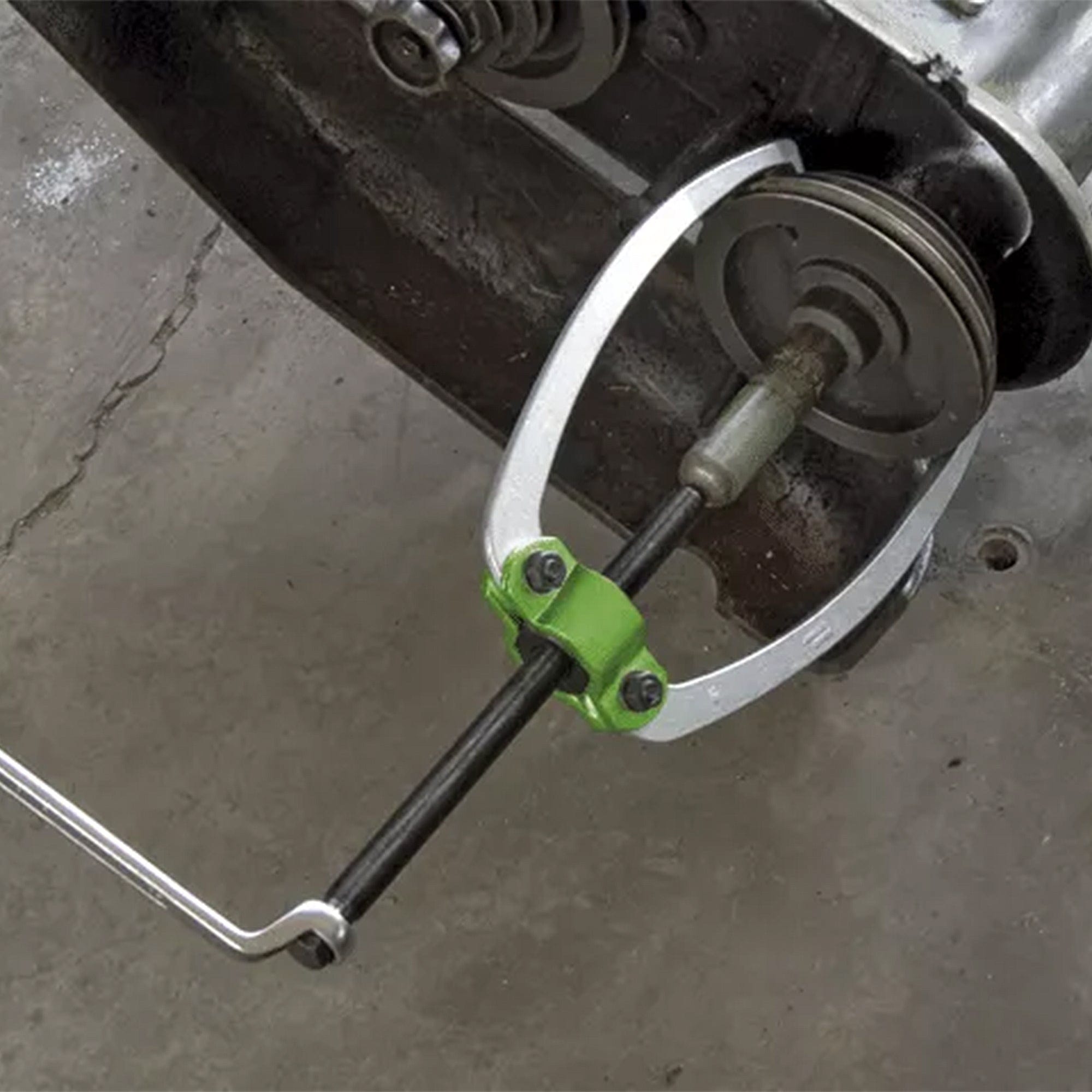

  • For removing bearings, gears, discs, etc.
  • Standard pulling hook.
  • Automatic self-centering pulling hooks.
  • Two-arm design for space-saving operation.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • MPN #: 44-4
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 23 - 250 mm 7/8 - 9 7/8 inch
Depth 200 mm 7 7/8 inch
Hexagon drive (male) 24 mm
Maximum load 7 t 7.5 US t
Maximum torque 190 Nm 140 ft lb
Weight 3.28 kg
Space below 12 mm 1/2 inch
Space next to it 17 mm 3/4 inch
Number of jaws 2 2



Product Data Sheet



Advantage

  • This handy, space-saving model is particularly suited for vehicle electrical equipment, electrical workshops, compressed air repair processes and other similar applications.

  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Pullers with self-centering jaws
