Description
Description:

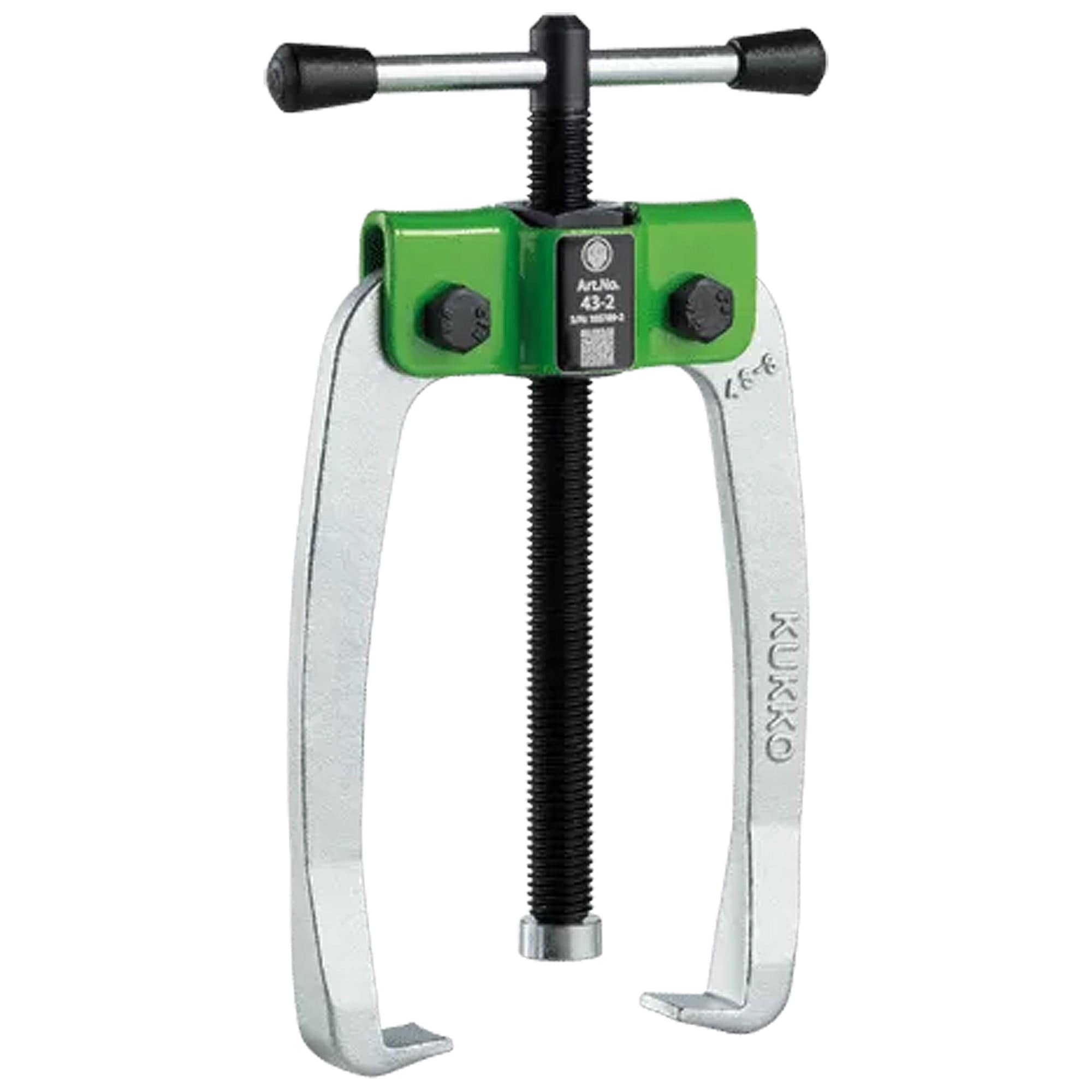

- For removing small bearings, gears or discs, etc. for tight or difficult-to-access spaces.
- Thin pulling hooks.
- Automatic self-centering pulling hooks.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
- MPN #: 43-2
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 10 - 70 mm | 3/8 - 2 3/4 inch |
Depth | 70 mm | 2 3/4 inch |
Maximum load | 1,5 t | 1.5 US t |
Weight | 0.24 kg | |
Space below | 5 mm | 3/16 inch |
Space next to it | 17 mm | 3/4 inch |
Number of jaws | 2 | 2 |
Advantage
-

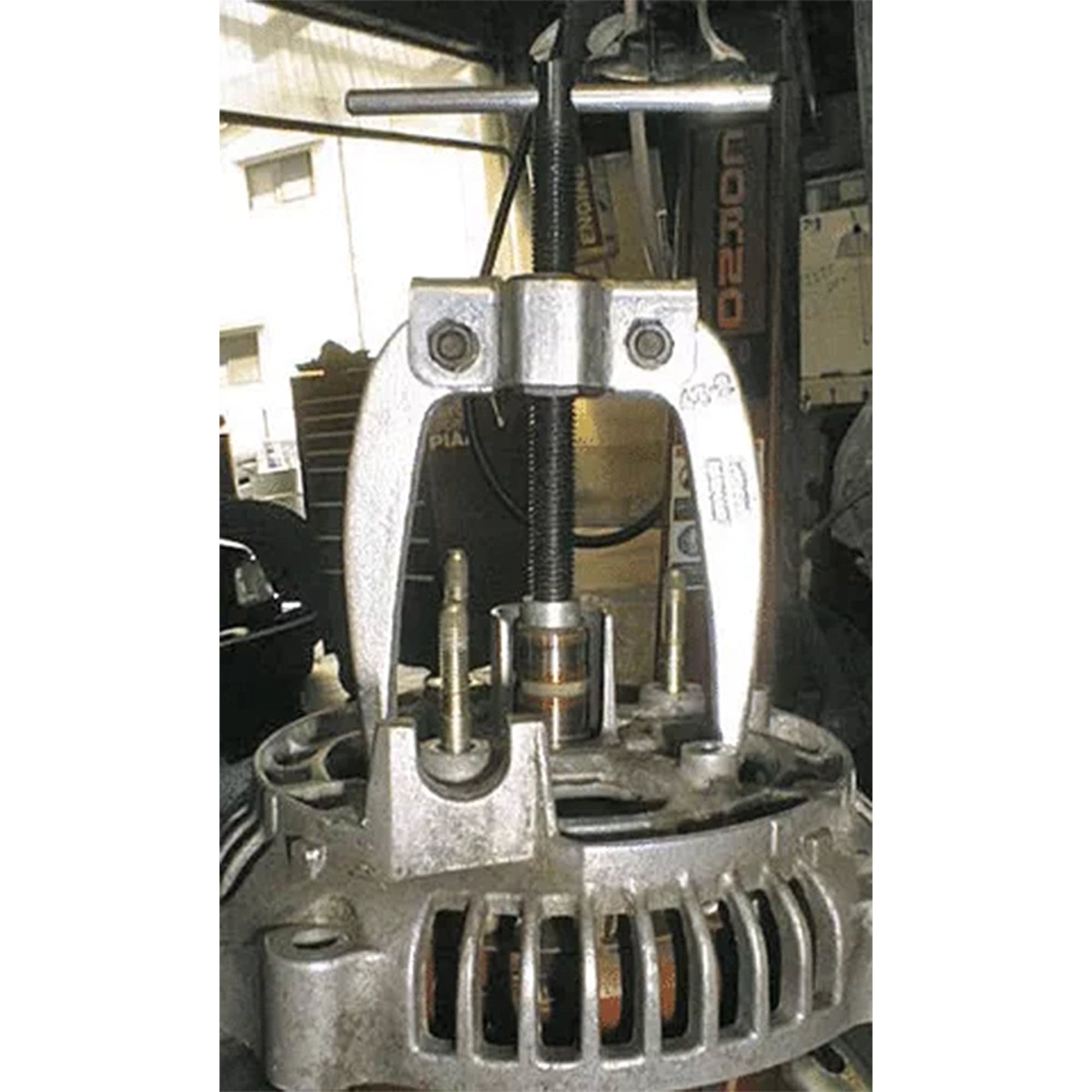

This handy, space-saving model is particularly suited for vehicle electrical equipment, electrical workshops, compressed air repair processes and other similar applications.
-
The thin pulling hooks are suitable for narrow, difficult-to-access locations.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Pullers with self-centering jaws
