Description
Description:
- For removing particularly small bearings, gears or discs, etc. for tight or difficult-to-access spaces.
- Thin pulling hooks.
- Automatic self-centering pulling hooks.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
- MPN #: 43-001
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 10 - 60 mm | 3/8 - 2 3/8 inch |
Depth | 50 mm | 2 inch |
Height of claw end | 1,5 mm | |
Heigth of cone end | 10 mm | 3/8 inch |
Diameter of cone end | 4,5 mm | |
Weight | 0.215 kg | |
Space below | 1,5 mm | 1/16 inch |
Space next to it | 16,5 mm | 5/8 inch |
Number of jaws | 2 | 2 |
Advantage
-

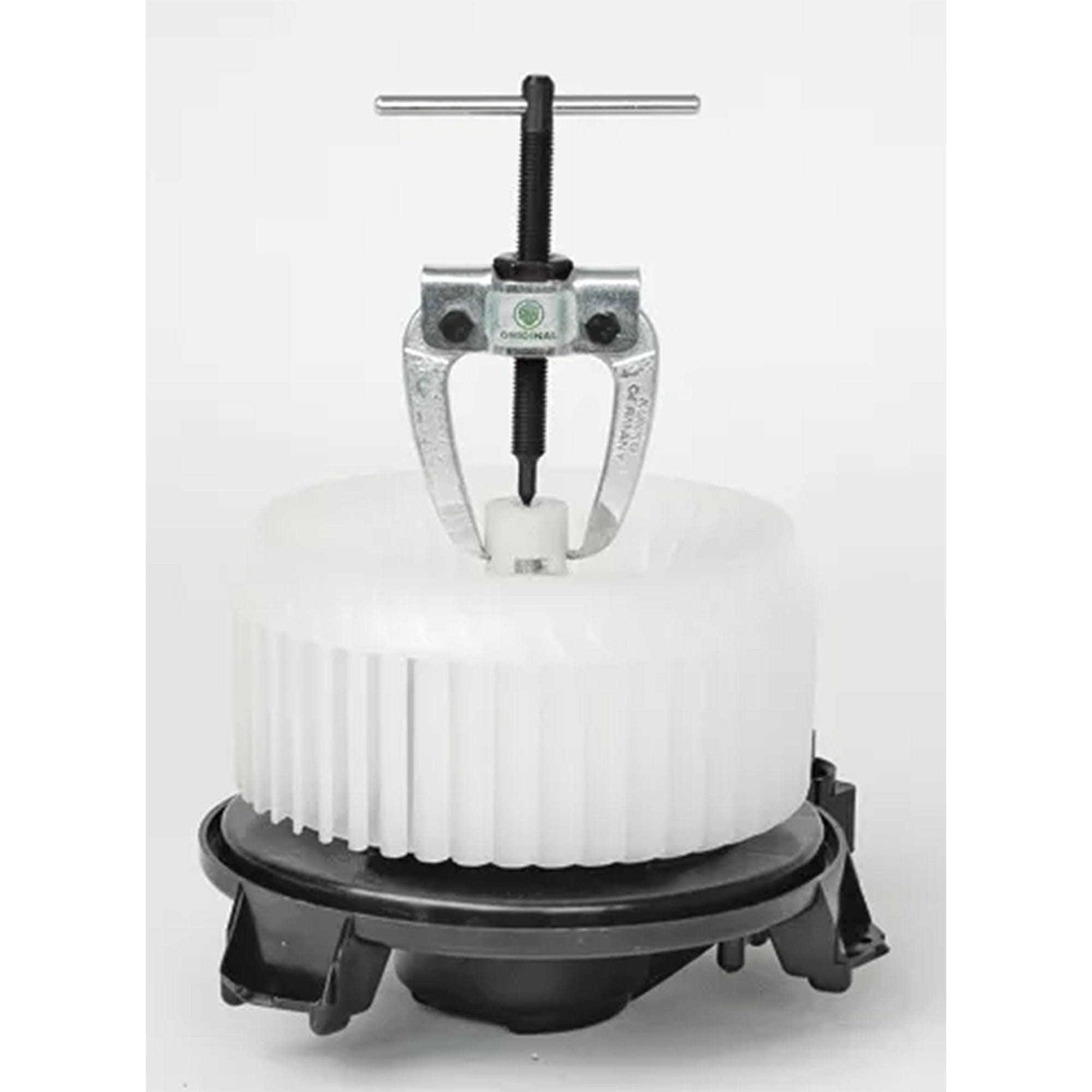

This handy, space-saving model is particularly suited for vehicle electrical equipment, electrical workshops, compressed air repair processes and other similar applications.
-
The thin pulling hooks are suitable for narrow, difficult-to-access locations.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with self-centering jaws
