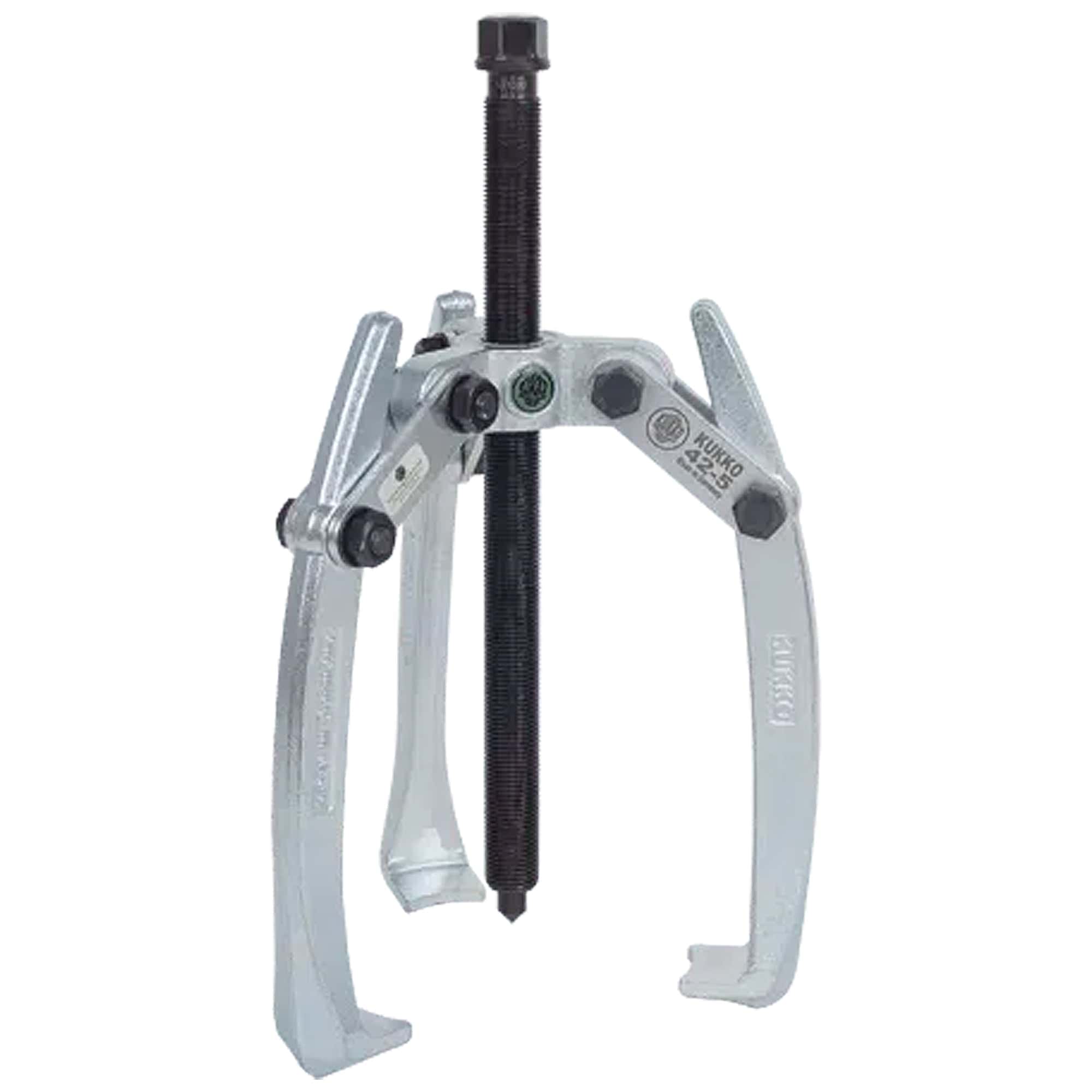

Kukko 42-5 Universal 3-Jaw Puller With Swiveling Jaws 1 1/32 - 7 1/8 inch (26 - 180 mm)

|
Kukko ToolsSKU: WS03-42-5
filler

Price:
Sale price$301

Description

Description:

  • For removing bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller (link[MP_41_Standard,series 41]).
  • MPN #: 42-5
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 26 - 180 mm 1 1/32 - 7 1/8 inch
Depth 200 mm 7 7/8 inch
Hexagon drive (male) 22 mm
Maximum load 7,0 t 7.5 US t
Maximum torque 150 Nm 110.5 ft lb
Weight 4.295 kg
Space below 15 mm 5/8 inch
Space next to it 35 mm 1 3/8 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.



Functionality

  • Pullers with swivelling jaws
