Description
Description:

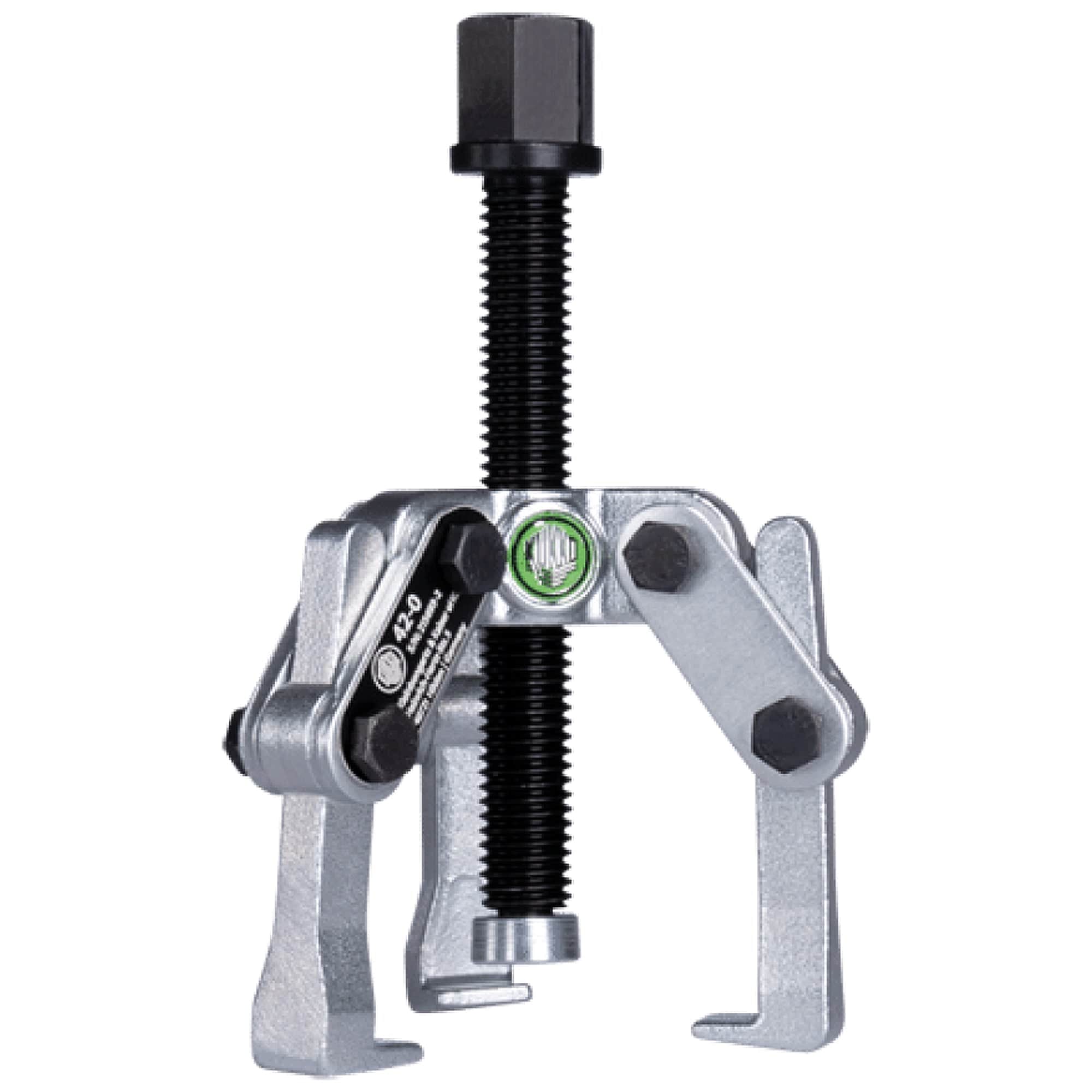

- For removing bearings, gears, discs, etc.
- Swivelling standard puller jaws.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller (link[MP_41_Standard,series 41]).
- MPN #: 42-4
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute | Metric | Imperial |
Spread | 14 - 90 mm | 5/8 - 4 inch |
Depth | 120 mm | 4 3/4 inch |
Hexagon drive (male) | 13 mm | |
Maximum load | 3,0 t | 3 US t |
Maximum torque | 40 Nm | 29.5 ft lb |
Weight | 0.87 kg | |
Space below | 7,5 mm | 1/4 inch |
Space next to it | 22 mm | 7/8 inch |
Number of jaws | 3 | 3 |
Advantage
-
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
-
Spindle head band prevents the wrench from slipping off.
-
Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
-
Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
-
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
-
Product video on the product can be opened.
Functionality
-
Pullers with swivelling jaws
