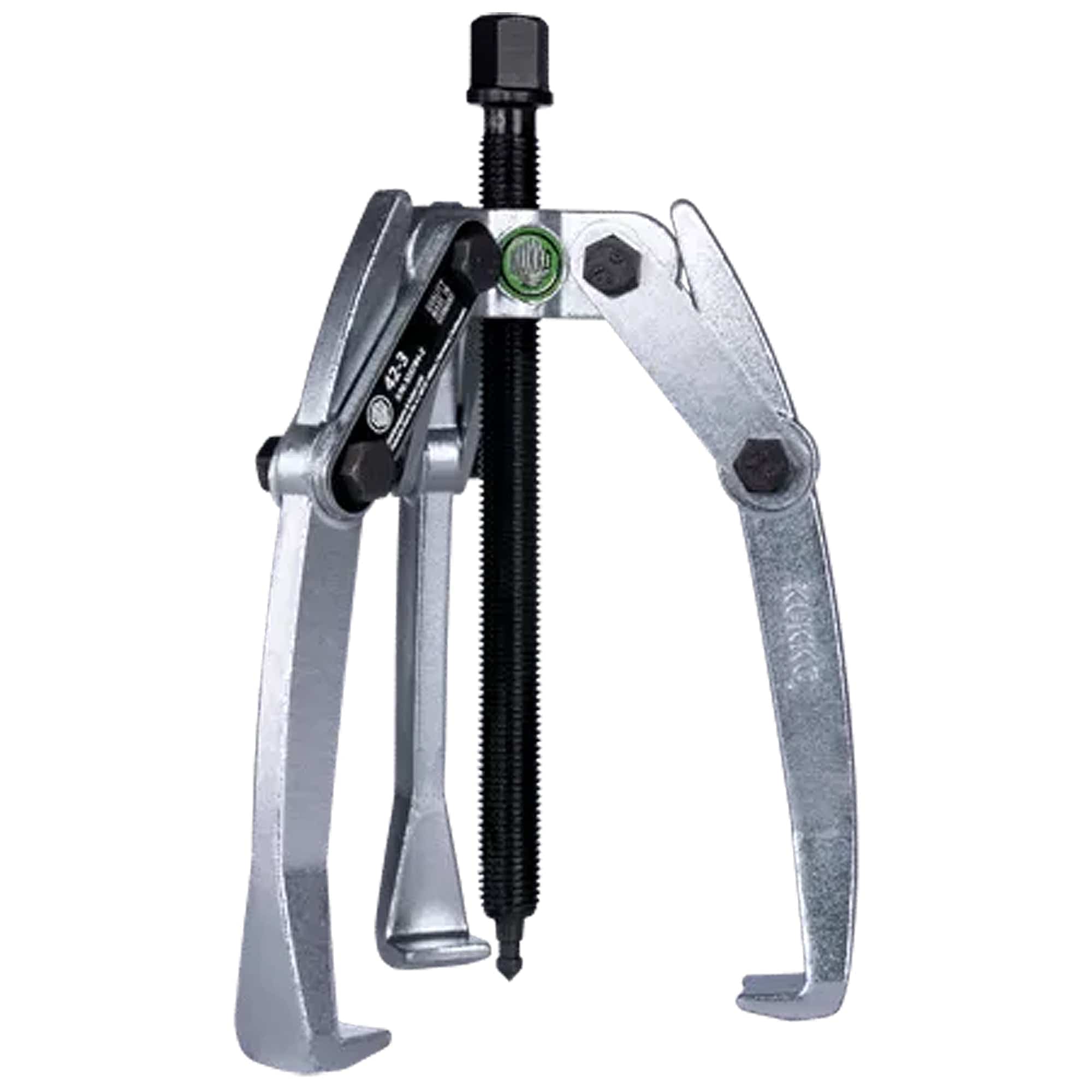

Kukko 42-3 Universal 3-Jaw Puller With Swiveling Jaws 5/8 - 4 inch (14 - 90 mm)

|
Kukko ToolsSKU: WS03-42-3
filler

Price:
Sale price$166.20

Description

Description:

  • For removing bearings, gears, discs, etc.
  • Swivelling standard puller jaws.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller (link[MP_41_Standard,series 41]).
  • MPN #: 42-3
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute  Metric Imperial
Spread 14 - 90 mm 5/8 - 4 inch
Depth 120 mm 4 3/4 inch
Hexagon drive (male) 13 mm
Maximum load 3,0 t 3 US t
Maximum torque 40 Nm 29.5 ft lb
Weight 0.87 kg
Space below 7,5 mm 1/4 inch
Space next to it 22 mm 7/8 inch
Number of jaws 3 3



Product Data Sheet



Advantage

  • The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.

  • Spindle head band prevents the wrench from slipping off.

  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

  • Product video on the product can be opened.


Functionality

  • Pullers with swivelling jaws
