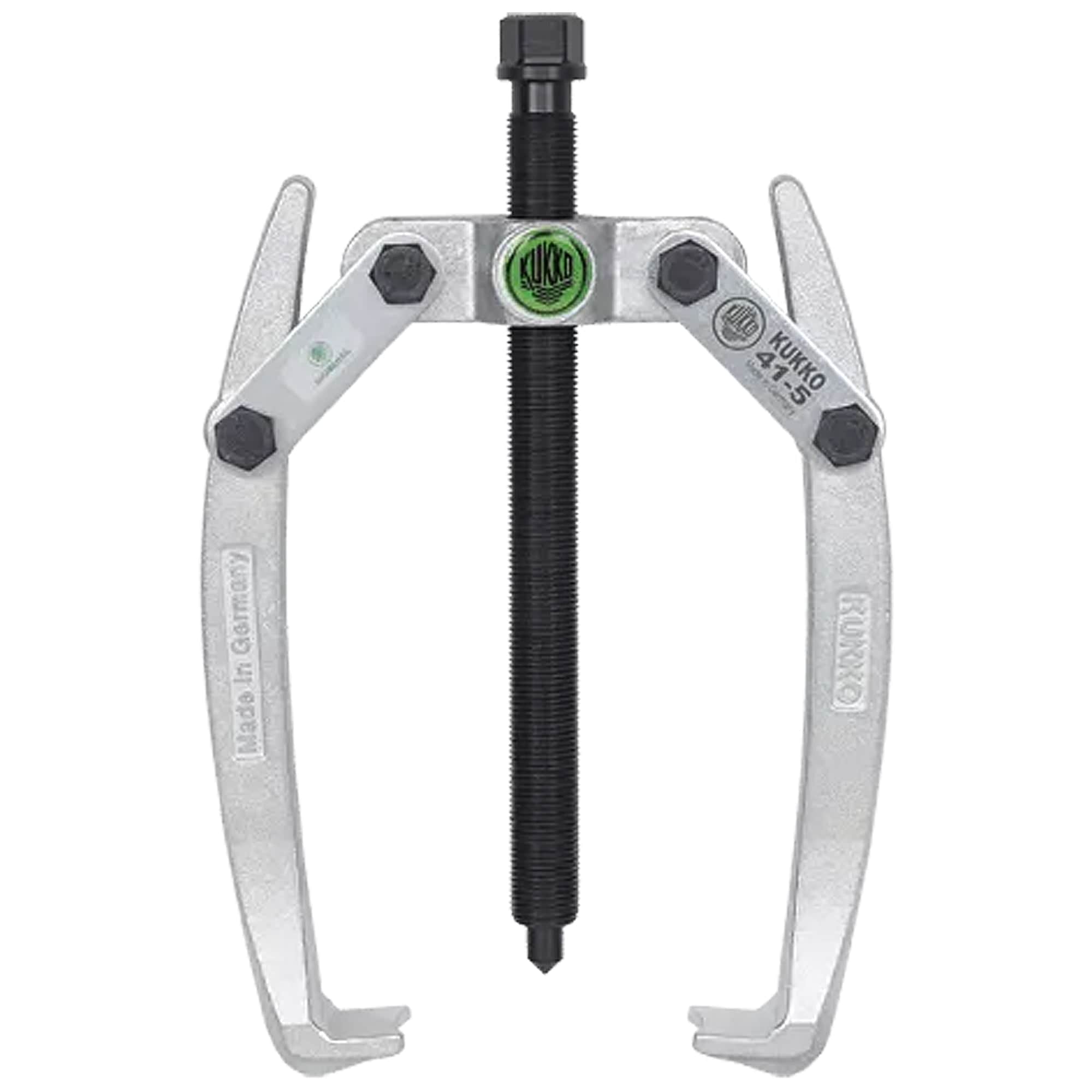

- For removing bearings, gears, discs, etc.
- Swivelling standard puller jaws.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller series 42 for optimal force distribution.
- MPN #: 41-5
- Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.
|Spread||26 - 180 mm||1 1/32 - 7 1/8 inch|
|Depth||200 mm||7 7/8 inch|
|Hexagon drive (male)||22 mm|
|Maximum load||7,0 t||7.5 US t|
|Maximum torque||150 Nm||110.5 ft lb|
|Space below||15 mm||5/8 inch|
|Space next to it||35 mm||1 3/8 inch|
|Number of jaws||2||2|
The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
Spindle head band prevents the wrench from slipping off.
Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
Quality made in Germany.
Strong design, high performance and long service life.
Safety label to ensure protection of intellectual property.
A tube of KUKKO special grease included for pressure spindle.
Product video on the product can be opened.
Pullers with swivelling jaws
