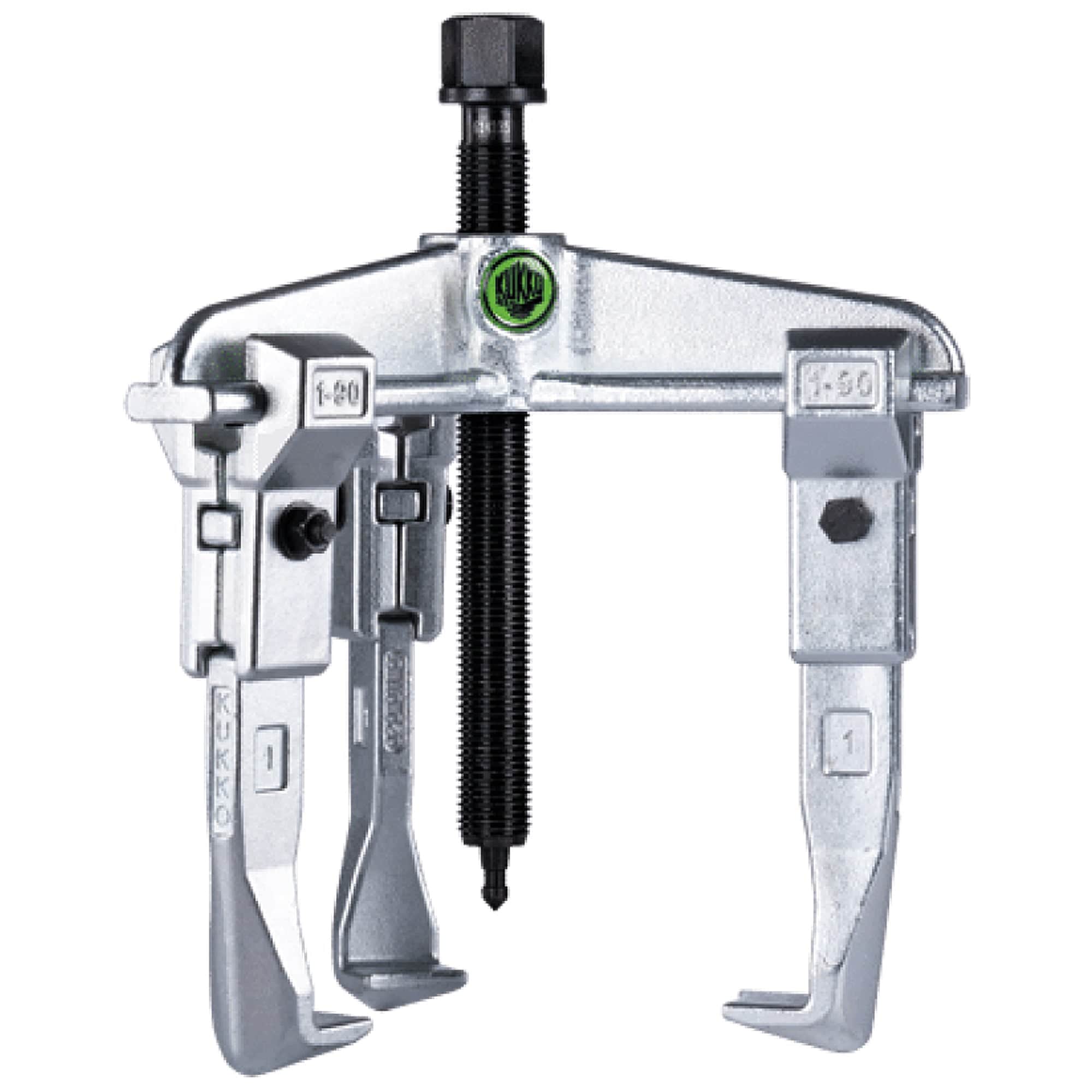

Kukko 30-5 Universal 3-jaw Internal and External Puller - 8 5/8 - 25 5/8 inch (220 - 650 mm)

|
Kukko ToolsSKU: WS03-30-5
filler

Price:
Sale price$2,910.20

Description


  • For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.

  • Thin pulling hooks.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely
  • MPN #: 30-5

  • Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

220 - 650 mm

8 5/8 - 25 5/8 inch

Depth

300 - 500 mm

11 7/8 - 19 3/4 inch

Spread used internal

290 - 740 mm

11 3/8 - 29 1/8 inch

Hexagon drive (male)

41 mm

Maximum load

20 t

22 US t

Maximum torque

650 Nm

479.5 ft lb

Space below

20 mm

3/4 inch

Space next to it

67 mm

2 5/8 inch

Weight

31.71 kg

Jaws

3

3


Product Data Sheet


Advantage

  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure the protection of intellectual property.

  • A tube of KUKKO special grease is included for the pressure spindle.

Functionality

  • Pullers with sliding, parallel jaws
