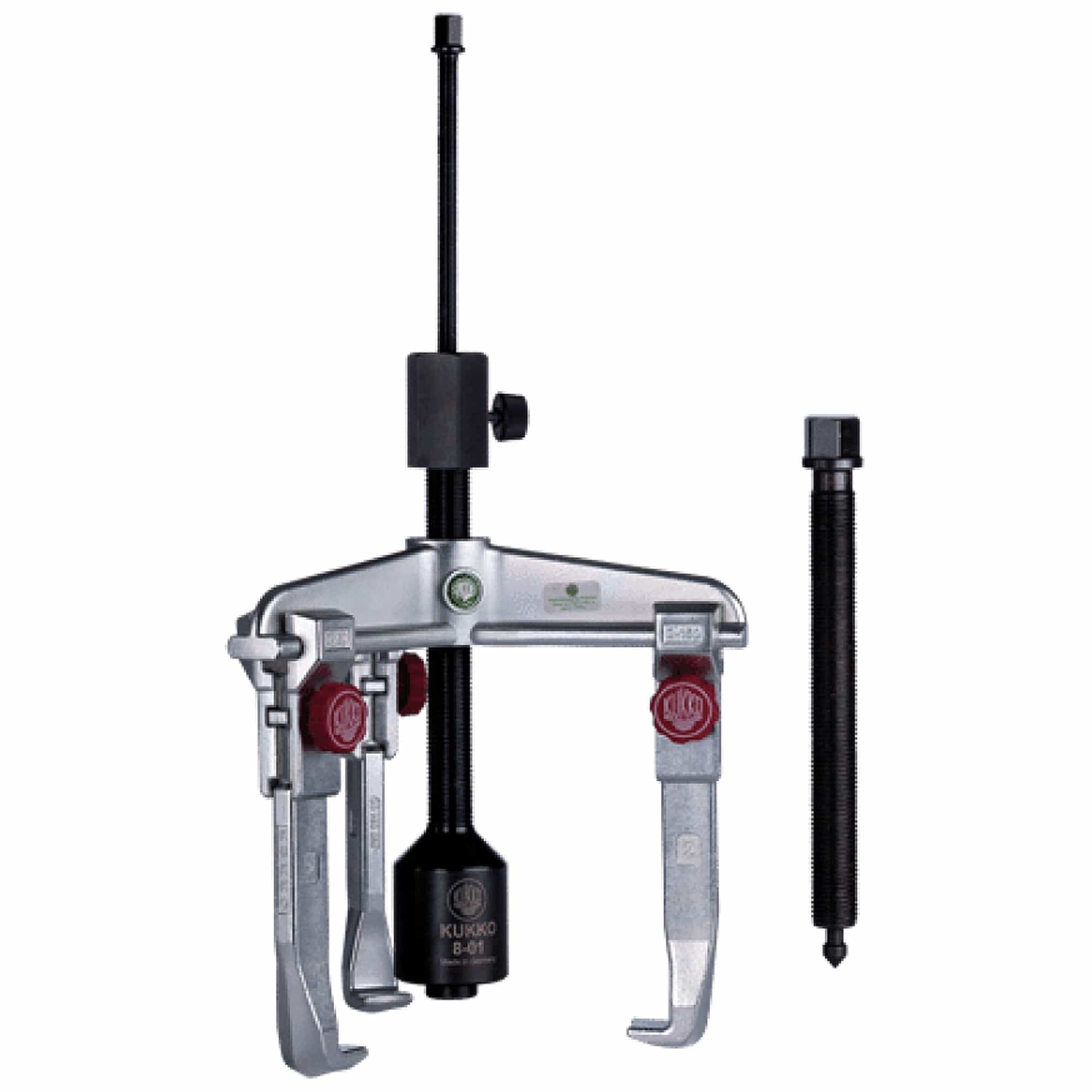

Description
-
For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
- Thin pulling hooks.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely
-
MPN #: 30-3+B
-
Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
46 - 250 mm |
1 7/8 - 9 7/8 inch |
Depth |
200 mm |
7 7/8 inch |
Spread used internal |
180 - 340 mm |
7 1/8 - 13 3/8 inch |
Hexagon drive (male) |
12 mm |
|
Maximum load |
7 t |
7.5 US t |
Maximum torque |
250 Nm |
|
Weight |
11.43 kg |
|
Jaws |
3 |
3 |
Advantage
- The thin pulling hooks are suitable for narrow, difficult-to-access locations.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure the protection of intellectual property.
-
A tube of KUKKO special grease is included for the pressure spindle.
Functionality
-
Pullers with sliding, parallel jaws
