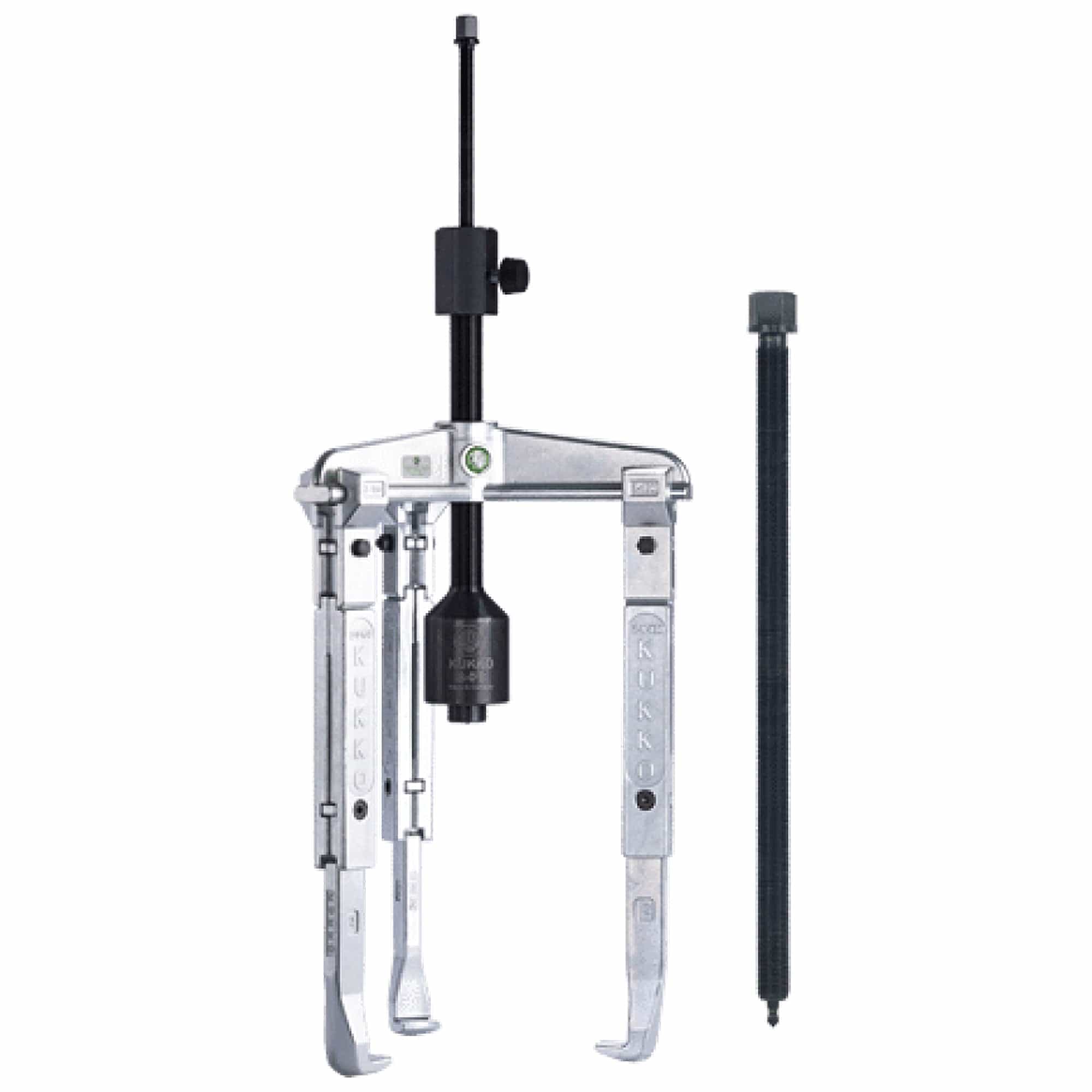

Kukko 30-3-3-B Universal 3-jaw Puller with Long Hydraulic Spindle and Extended Jaws (Including Mechanical Pressure Screw) -1 7/8 - 9 7/8 Inch (46 - 250 mm )

|
Kukko ToolsSKU: WS03-30-3-3-B
filler

Price:
Sale price$1,371.50

Description


  • For removing bearings, gears, discs, etc.

  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 20.
  • MPN #: 30-3-3-B

  • Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

46 - 250 mm

1 7/8 - 9 7/8 inch

Depth

300 mm

11 7/8 inch

Spread used internal

180 - 340 mm

7 1/8 - 13 3/8 inch

Hexagon drive (male)

12 mm

Maximum load

10 t

11 US t

Maximum torque

250 Nm


Space below

20 mm

3/4 inch

Space next to it

67 mm

2 5/8 inch

Weight

10.8 kg

Jaws

3

3



Product Data Sheet


Advantage

  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

Functionality

  • Pullers with sliding, parallel jaws
