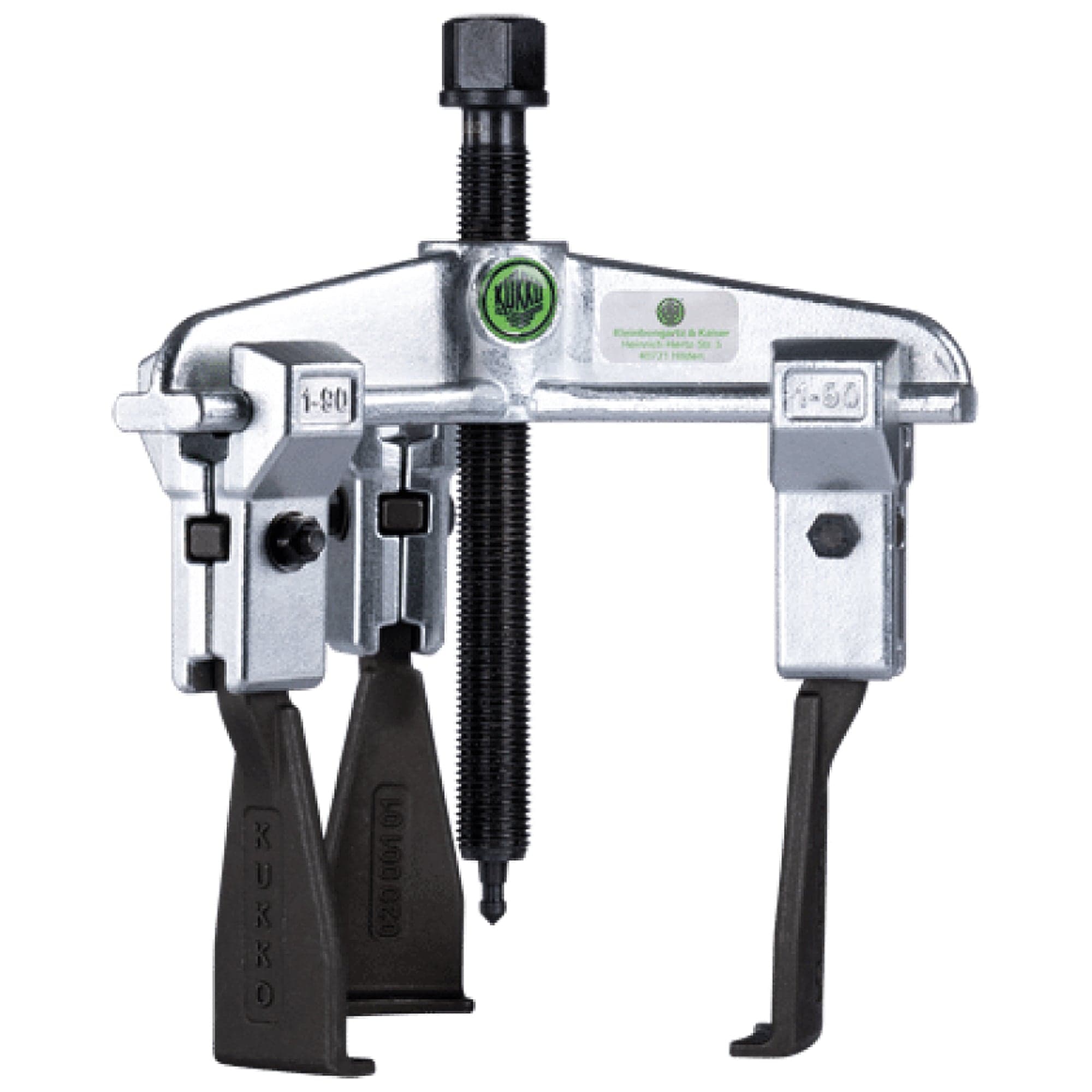

Kukko 30-20-S Universal 3-jaw External And Internal Puller with Narrow and Quick Adjusting Jaws - 1 3/8 - 7 7/8 inch (35 - 200 mm)

|
Kukko ToolsSKU: WS03-30-20-S
filler

Price:
Sale price$540.10

Description


  • For removing bearings, gears, discs, etc.

  • Standard pulling hook with quick adjusting capability quick adjust.

  • Parallel pulling hooks in every position, even with a full load.

  • Pulling hooks with infinitely variable adjustment on the cross-beam.

  • Optimal adjustment of the spindle to the shaft with a 2-sided spindle tip (ball and tip).

  • Mechanical pressure screw.

  • Milled thread treated with a special coating.

  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.

  • MPN #: 30-20-S

  • Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

35 - 200 mm

1 3/8 - 7 7/8 inch

Depth

150 mm

5 7/8 inch

Spread used internal

100 - 260 mm

3 7/8 - 10 1/4 inch

Hexagon drive (male)

22 mm

Maximum load

5 t

5.5 US t

Maximum torque

120 Nm


Weight

4.08 kg

Jaws

3

3



Product Data Sheet


Advantage

  • Variable reach thanks to optional jaw extensions.
  • Can be installed on various pulling hooks.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

Functionality

  • Pullers with sliding, parallel jaws
