Description
-
For removing bearings, gears, discs, etc.
-
Standard pulling hook with quick adjusting capability quick adjust.
-
Parallel pulling hooks in every position, even with a full load.
-
Pulling hooks with infinitely variable adjustment on the cross-beam.
-
Optimal adjustment of the spindle to the shaft with a 2-sided spindle tip (ball and tip).
-
Mechanical pressure screw.
-
Milled thread treated with a special coating.
-

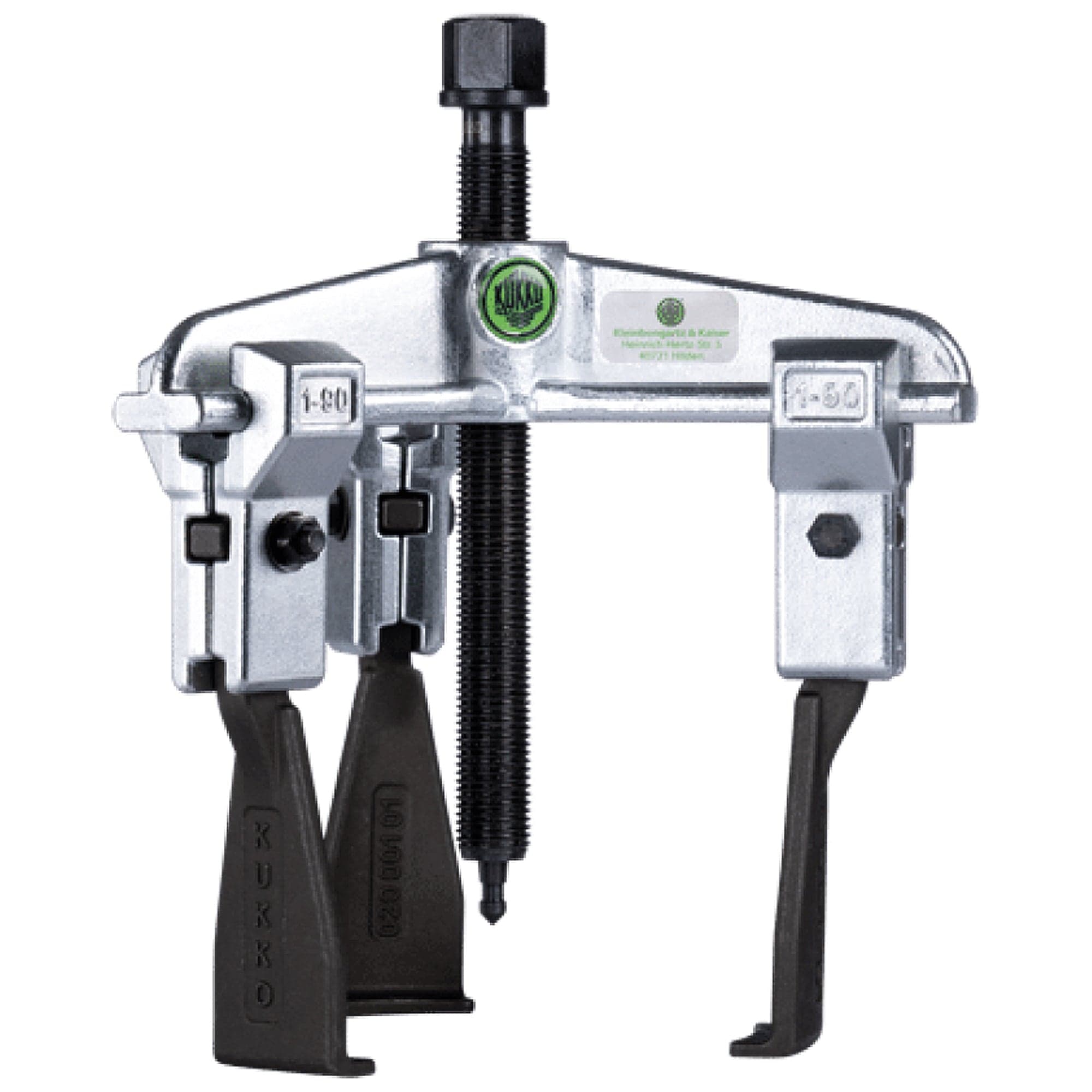

The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
-
MPN #: 30-20+B
-
Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.
Technical attribute |
Metric |
Imperial |
Spread |
35 - 200 mm |
1 3/8 - 7 7/8 inch |
Depth |
150 mm |
5 7/8 inch |
Spread used internal |
100 - 260 mm |
3 7/8 - 10 1/4 inch |
Hexagon drive (male) |
12 mm |
|
Maximum load |
7 t |
7.5 US t |
Maximum torque |
150 Nm |
|
Weight |
5.64 kg |
|
Jaws |
3 |
3 |
Product Data Sheet
Advantage
- Variable reach thanks to optional jaw extensions.
- Can be installed on various pulling hooks.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
-
Quality made in Germany.
-
Strong design, high performance and long service life.
-
Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
-
Safety label to ensure protection of intellectual property.
-
A tube of KUKKO special grease included for pressure spindle.
Functionality
-
Pullers with sliding, parallel jaws
